ABB Robotics

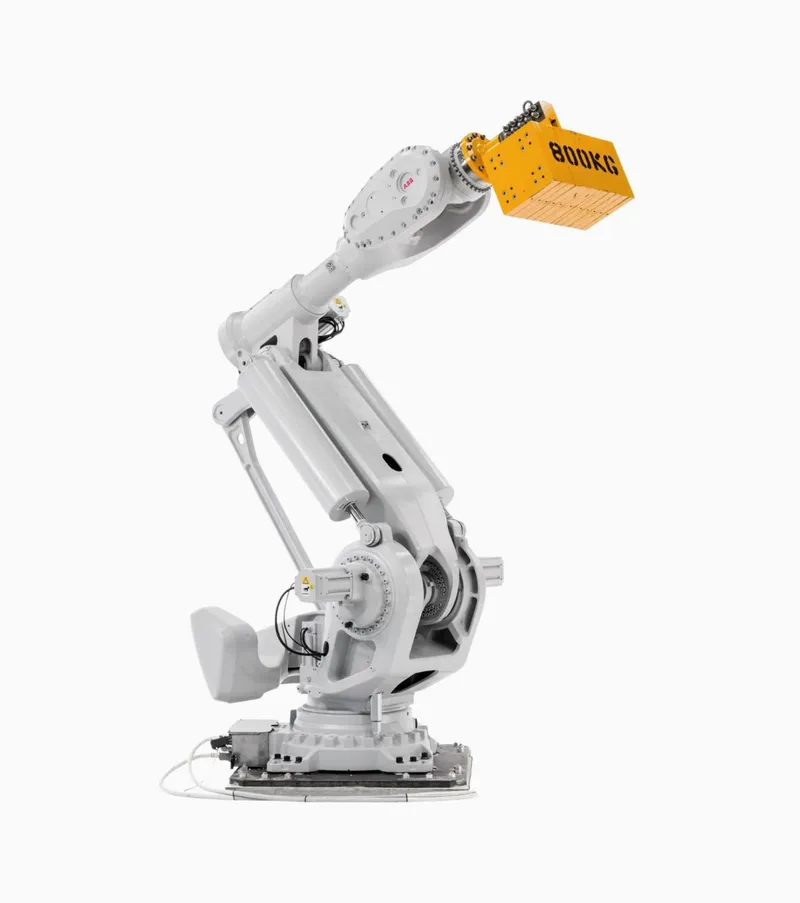

IRB 8700-550/4.2
ABB's largest industrial robot — 550 kg payload at 4200 mm reach (up to 1000 kg at shorter reach) for the heaviest automotive, foundry and rail handling.
💲 Price on application
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 550 kg 95th pct in class

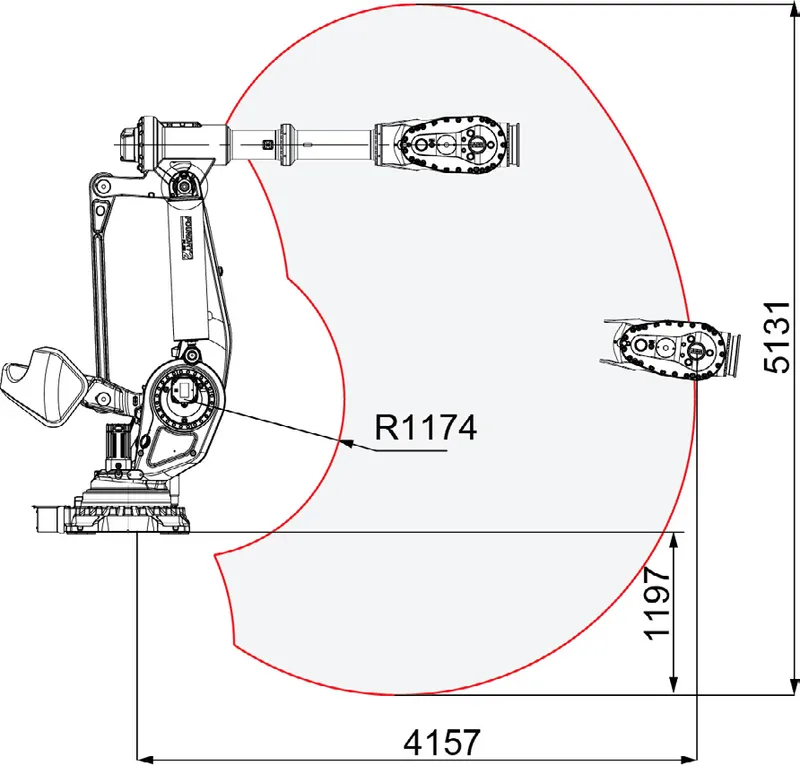

- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 4,200 mm 99th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.1 mm 4th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 6
- Wrist torque
Allowable torque at the wrist axis — how much twisting force a tool can apply. Higher handles bigger/offset tools.
- 5,279 N·m 97th pct in class
Motion range & speed
Per-axis travel limits and rotational speeds.
Motion range and maximum speed per joint.
| Axis | Range | Max speed |
|---|---|---|
| J1 | -170° to 170° | 75 °/s |
| J2 | -65° to 90° | 60 °/s |
| J3 | -30° to 132° | 60 °/s |
| J4 | -300° to 300° | 85 °/s |
| J5 | -130° to 130° | 85 °/s |
| J6 | -360° to 360° | 115 °/s |
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 4,575 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- floor
Power & controller
Electrical supply and the control cabinet that drives it.
- Controller
The control cabinet / unit that runs the robot.
- OmniCore V400
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (arm)
Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.
- IP67 71th pct in class
- IP rating (wrist)
Ingress protection at the wrist, often higher than the body for wet/washdown duty.
- IP67 14th pct in class
- Operating temp
Ambient temperature range for normal operation.
- -25 to 55 °C
- Humidity
Permissible relative-humidity range (non-condensing).
- ≤ 95 %RH
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- No
- Safety standards
Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).
- ISO 10218-1
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- teach-pendant, offline-sim
- Languages
Native robot programming language(s) — e.g. KRL (KUKA), RAPID (ABB), URScript (UR), INFORM (Yaskawa).
- RAPID
- Teach pendant
The handheld programming/jog device supplied.
- FlexPendant
- Offline programming
Whether programs can be built and validated offline in a digital twin before deployment.
- Yes
Connectivity & I/O
Signals, fieldbuses and tooling interfaces.
- Fieldbus
Industrial networks supported for PLC/cell integration (PROFINET, EtherNet/IP, EtherCAT, Modbus TCP, CC-Link, etc.).
- PROFINET, EtherNet/IP, DeviceNet
Industrial Robotics Hub — industrialroboticshub.com
Safety certifications
- ISO 10218-1 — the primary industrial-robot safety standard covering design and construction requirements
Specifications sourced from ABB Robotics official datasheet ↗. Specs last verified 2026-07-01.
Owner reviews
Real, first-hand feedback from people who run the ABB Robotics IRB 8700-550/4.2. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the ABB Robotics IRB 8700-550/4.2? +
The ABB Robotics IRB 8700-550/4.2 has a maximum payload of 550 kg.
What is the reach of the ABB Robotics IRB 8700-550/4.2? +
The ABB Robotics IRB 8700-550/4.2 has a maximum reach of 4,200 mm (4.20 m).
What is the repeatability of the ABB Robotics IRB 8700-550/4.2? +
The ABB Robotics IRB 8700-550/4.2 has a pose repeatability of ±0.1 mm (ISO 9283), making it suitable for precision work.
How many axes does the ABB Robotics IRB 8700-550/4.2 have? +
The ABB Robotics IRB 8700-550/4.2 is a 6-axis articulated arm robot.
What is the ABB Robotics IRB 8700-550/4.2 used for? +
The ABB Robotics IRB 8700-550/4.2 is typically used for material-handling, machine-tending, palletizing.
What controller does the ABB Robotics IRB 8700-550/4.2 use? +
The ABB Robotics IRB 8700-550/4.2 runs on the OmniCore V400 controller.
What is the IP rating of the ABB Robotics IRB 8700-550/4.2? +
The ABB Robotics IRB 8700-550/4.2 arm carries an IP67 ingress-protection rating.
How much does the ABB Robotics IRB 8700-550/4.2 cost? +
ABB Robotics IRB 8700-550/4.2: Price on application. Industrial robots are typically quoted per project through authorized distributors.
