Robots for material handling
Material handling is the broadest robot application: moving parts, bins, castings, or loads from one point to another across a cell or line. Payload spans the full range, from a few kilograms to over a tonne, so the decision starts with matching rated payload to your heaviest load plus tooling, then checking the payload at full reach, which is always lower than the headline figure.
231 matching models in our database, payload up to 1700 kg.
What matters when you spec a material handling robot
- ●Payload: spans the full range; match it to your heaviest load plus tooling.
- ●Payload at full reach: the effective capacity at the edge of the envelope is lower than the headline number.
- ●Reach: must cover the pick and place points and any intermediate positions.
- ●Footprint: floor space and mounting options (floor, ceiling, wall) for the cell layout.
Material Handling robots in our database
Collaborative
Universal Robots
UR15
Payload 17.5 kg
Reach 1,300 mm
Repeat. 0.05 mm
Collaborative
Universal Robots
UR16e
Payload 16 kg
Reach 900 mm
Repeat. 0.05 mm
Collaborative ✓
Universal Robots
UR20
Payload 20 kg
Reach 1,750 mm
Repeat. 0.1 mm
Collaborative
Universal Robots
UR30
Payload 35 kg
Reach 1,300 mm
Repeat. 0.1 mm
Collaborative ✓
Yaskawa Motoman
HC10DTP
Payload 10 kg
Reach 1,200 mm
Repeat. 0.05 mm
Collaborative ✓
Yaskawa Motoman
HC30PL
Payload 30 kg
Reach 1,700 mm
Repeat. 0.05 mm
Collaborative ✓
Yaskawa Motoman
HC20DTP
Payload 20 kg
Reach 1,700 mm
Repeat. 0.05 mm
Collaborative ✓
FANUC
CR-35iB
Payload 50 kg
Reach 1,813 mm
Repeat. 0.08 mm
Collaborative ✓
FANUC
CRX-25iA
Payload 30 kg
Reach 1,889 mm
Repeat. 0.04 mm
Collaborative ✓
FANUC
CRX-20iA/L
Payload 20 kg
Reach 1,418 mm
Repeat. 0.04 mm
Collaborative ✓
FANUC
CRX-10iA/L
Payload 10 kg
Reach 1,418 mm
Repeat. 0.04 mm
Collaborative ✓
KUKA
LBR iisy 15 R930
Payload 15 kg
Reach 930 mm
Repeat. 0.05 mm
Collaborative ✓
KUKA
LBR iisy 11 R1300
Payload 11 kg
Reach 1,300 mm
Repeat. 0.05 mm
Articulated arm ✓
FANUC
LR Mate 200iD/7L
Payload 7 kg
Reach 911 mm
Repeat. 0.02 mm
Articulated arm ✓
Yaskawa Motoman
Motoman GP8
Payload 8 kg
Reach 727 mm
Repeat. 0.02 mm
Collaborative ✓
ABB Robotics
GoFa CRB 15000-12/1.27
Payload 12 kg
Reach 1,270 mm
Repeat. 0.05 mm
Collaborative
Techman Robot
TM20S
Payload 20 kg
Reach 1,300 mm
Repeat. 0.03 mm
Collaborative
Techman Robot
TM30S
Payload 30 kg
Reach 1,702 mm
Repeat. 0.05 mm
Articulated arm ✓
Yaskawa Motoman
GP12
Payload 12 kg
Reach 1,440 mm
Repeat. 0.02 mm

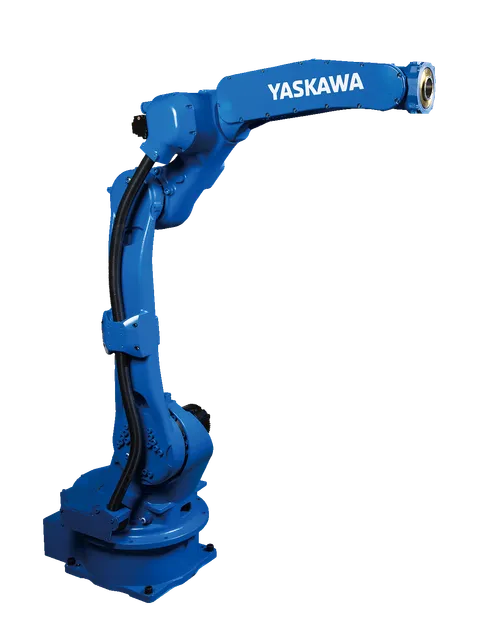

Articulated arm ✓
Yaskawa Motoman
GP25
Payload 25 kg
Reach 1,730 mm
Repeat. 0.02 mm
Articulated arm ✓
Yaskawa Motoman
GP50
Payload 50 kg
Reach 2,061 mm
Repeat. 0.03 mm
Collaborative ✓
ABB Robotics
GoFa CRB 15000-10/1.52
Payload 10 kg
Reach 1,520 mm
Repeat. 0.05 mm
Articulated arm ✓
FANUC
M-10iD/12
Payload 12 kg
Reach 1,441 mm
Repeat. 0.02 mm
Articulated arm ✓
FANUC
M-20iD/25
Payload 25 kg
Reach 1,831 mm
Repeat. 0.03 mm
Articulated arm ✓
FANUC
M-2000iA/1700L
Payload 1,700 kg
Reach 3,734 mm
Repeat. 0.27 mm
Articulated arm ✓
FANUC
M-710iC/50
Payload 50 kg
Reach 2,050 mm
Repeat. 0.07 mm
Articulated arm ✓
FANUC
R-2000iC/165F
Payload 165 kg
Reach 2,655 mm
Repeat. 0.05 mm
Articulated arm ✓
KUKA
KR 10 R1100-2 (AGILUS)
Payload 10 kg
Reach 1,101 mm
Repeat. 0.03 mm
Articulated arm ✓
KUKA
KR 1000 TITAN
Payload 1,000 kg
Reach 3,202 mm
Repeat. 0.1 mm
Articulated arm ✓
KUKA
KR 120 R2700-2
Payload 120 kg
Reach 2,701 mm
Repeat. 0.06 mm
Articulated arm ✓
KUKA
KR 20 R1810
Payload 20 kg
Reach 1,813 mm
Repeat. 0.04 mm
Articulated arm ✓
KUKA
KR 20 R3100 IONTEC
Payload 20 kg
Reach 3,101 mm
Repeat. 0.04 mm
Articulated arm ✓
KUKA
KR 30 R2100
Payload 30 kg
Reach 2,101 mm
Repeat. 0.04 mm
Articulated arm ✓
KUKA
KR 500 R2830
Payload 500 kg
Reach 2,826 mm
Repeat. 0.08 mm
Articulated arm ✓
KUKA
KR 70 R2100
Payload 70 kg
Reach 2,101 mm
Repeat. 0.04 mm
Collaborative ✓
Techman Robot
TM12S
Payload 12 kg
Reach 1,300 mm
Repeat. 0.03 mm
Collaborative ✓
Techman Robot
TM14S
Payload 14 kg
Reach 1,100 mm
Repeat. 0.03 mm
Articulated arm ✓
Yaskawa Motoman
GP180
Payload 180 kg
Reach 2,702 mm
Repeat. 0.05 mm
Articulated arm ✓
Yaskawa Motoman
GP280
Payload 280 kg
Reach 2,446 mm
Repeat. 0.05 mm
Articulated arm ✓
Yaskawa Motoman
GP88
Payload 88 kg
Reach 2,236 mm
Repeat. 0.03 mm
Articulated arm ✓
Yaskawa Motoman
MH12
Payload 12 kg
Reach 1,440 mm
Repeat. 0.08 mm
Articulated arm ✓
Yaskawa Motoman
MH24
Payload 24 kg
Reach 1,730 mm
Repeat. 0.06 mm
Delta / parallel ✓
ABB Robotics
IRB 360 FlexPicker 8/1130
Payload 8 kg
Reach 1,130 mm
Repeat. 0.1 mm
Delta / parallel ✓
FANUC
M-3iA/6S
Payload 6 kg
Reach 1,350 mm
Repeat. 0.1 mm
Palletizer ✓
FANUC
M-410iB/700
Payload 700 kg
Reach 3,143 mm
Repeat. 0.5 mm
Articulated arm ✓
Kawasaki Robotics
RS007N
Payload 7 kg
Reach 730 mm
Repeat. 0.02 mm
Articulated arm ✓
Kawasaki Robotics
RS013N
Payload 13 kg
Reach 1,460 mm
Repeat. 0.03 mm
Articulated arm ✓
Kawasaki Robotics
RS015X
Payload 15 kg
Reach 3,150 mm
Repeat. 0.06 mm
Articulated arm ✓
Kawasaki Robotics
RS080N
Payload 80 kg
Reach 2,100 mm
Repeat. 0.06 mm
Articulated arm ✓
Kawasaki Robotics
RS050N
Payload 50 kg
Reach 2,100 mm
Repeat. 0.06 mm
Articulated arm ✓
KUKA
KR 210 R2700-2 (QUANTEC)
Payload 210 kg
Reach 2,700 mm
Repeat. 0.06 mm

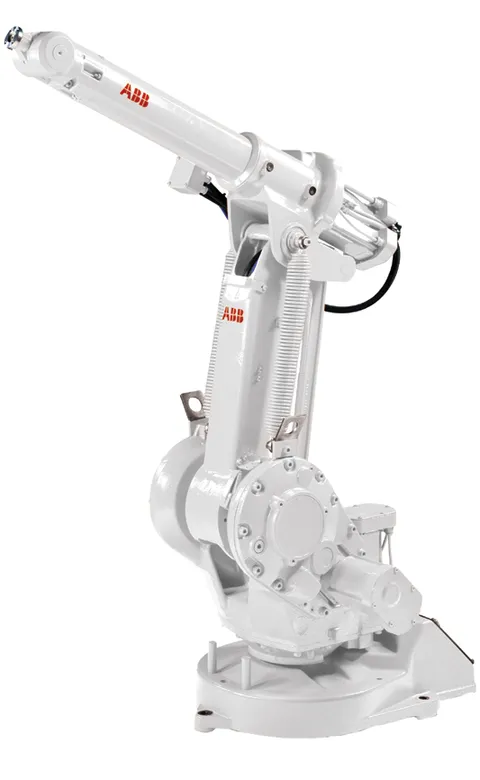

Articulated arm ✓
ABB Robotics
IRB 1410
Payload 5 kg
Reach 1,444 mm
Repeat. 0.05 mm
Articulated arm ✓
ABB Robotics
IRB 1600-10/1.45
Payload 10 kg
Reach 1,450 mm
Repeat. 0.02 mm
Delta / parallel ✓
ABB Robotics
IRB 390 FlexPacker
Payload 15 kg
Reach 1,500 mm
Repeat. 0.1 mm
Articulated arm ✓
ABB Robotics
IRB 6710-210/2.65
Payload 210 kg
Reach 2,650 mm
Repeat. 0.04 mm
Articulated arm ✓
ABB Robotics
IRB 6730-270/2.7
Payload 270 kg
Reach 2,700 mm
Repeat. 0.04 mm
Articulated arm ✓
ABB Robotics
IRB 6720-240/2.65
Payload 240 kg
Reach 2,650 mm
Repeat. 0.04 mm
Articulated arm ✓
ABB Robotics
IRB 6740-310/2.8
Payload 310 kg
Reach 2,800 mm
Repeat. 0.05 mm
Collaborative ✓
ABB Robotics
SWIFTI CRB 1100-4/0.58
Payload 4 kg
Reach 580 mm
Repeat. 0.01 mm
Collaborative ✓
AUBO
i16
Payload 16 kg
Reach 968 mm
Repeat. 0.03 mm
Palletizer ✓
FANUC
M-410iC/185
Payload 185 kg
Reach 3,143 mm
Repeat. 0.5 mm
Articulated arm ✓
FANUC
M-900iB/400L
Payload 400 kg
Reach 3,704 mm
Repeat. 0.15 mm

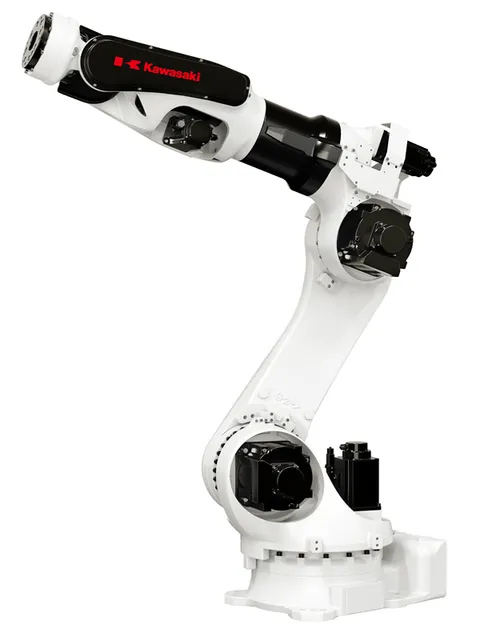

Articulated arm ✓
Kawasaki Robotics
BX100N
Payload 100 kg
Reach 2,200 mm
Repeat. 0.06 mm
Articulated arm ✓
Kawasaki Robotics
RS007L
Payload 7 kg
Reach 930 mm
Repeat. 0.03 mm
Articulated arm ✓
Kawasaki Robotics
RS020N
Payload 20 kg
Reach 1,725 mm
Repeat. 0.04 mm
Articulated arm ✓
Kawasaki Robotics
RS025N
Payload 25 kg
Reach 1,885 mm
Repeat. 0.06 mm
Articulated arm ✓
Mitsubishi Electric
MELFA RV-13FR
Payload 13 kg
Reach 1,388 mm
Repeat. 0.02 mm
Articulated arm ✓
Mitsubishi Electric
MELFA RV-20FR
Payload 20 kg
Reach 1,503 mm
Repeat. 0.02 mm
Articulated arm ✓
Mitsubishi Electric
MELFA RV-4FR
Payload 4 kg
Reach 515 mm
Repeat. 0.02 mm
Articulated arm ✓
Stäubli Robotics
TX2-140
Payload 40 kg
Reach 1,510 mm
Repeat. 0.015 mm
Articulated arm ✓
ABB Robotics
IRB 1300-11/0.9
Payload 11 kg
Reach 900 mm
Repeat. 0.02 mm
Articulated arm ✓
ABB Robotics
IRB 6750S-350/3.2
Payload 350 kg
Reach 3,200 mm
Repeat. 0.06 mm
Articulated arm ✓
ABB Robotics
IRB 6730S-270/3.1
Payload 270 kg
Reach 3,100 mm
Repeat. 0.06 mm
Articulated arm ✓
ABB Robotics
IRB 7710-500/2.85
Payload 500 kg
Reach 2,850 mm
Repeat. 0.06 mm
Articulated arm ✓
ABB Robotics
IRB 7720-620/2.9
Payload 620 kg
Reach 2,900 mm
Repeat. 0.06 mm
Collaborative ✓
AUBO
i20
Payload 20 kg
Reach 1,650 mm
Repeat. 0.1 mm
Collaborative ✓
AUBO
iS25
Payload 25 kg
Reach 1,911 mm
Repeat. 0.05 mm
Collaborative ✓
Dobot
CR12A
Payload 12 kg
Reach 1,200 mm
Repeat. 0.03 mm
Collaborative ✓
Dobot
CR16A
Payload 16 kg
Reach 1,000 mm
Repeat. 0.03 mm
Collaborative ✓
Dobot
CR20A
Payload 20 kg
Reach 1,700 mm
Repeat. 0.05 mm
Collaborative ✓
Dobot
CR30H
Payload 30 kg
Reach 1,800 mm
Repeat. 0.05 mm
Palletizer ✓
Doosan Robotics
P3020
Payload 30 kg
Reach 2,000 mm
Repeat. 0.05 mm
Articulated arm ✓
Mitsubishi Electric
MELFA RV-2FR
Payload 2 kg
Reach 504 mm
Repeat. 0.02 mm
Articulated arm ✓
Stäubli Robotics
TX2-160
Payload 25 kg
Reach 1,710 mm
Repeat. 0.02 mm
Articulated arm ✓
Stäubli Robotics
TX2-200
Payload 170 kg
Reach 2,209 mm
Repeat. 0.02 mm
Articulated arm ✓
Stäubli Robotics
TX2-200L
Payload 110 kg
Reach 2,609 mm
Repeat. 0.02 mm
Articulated arm ✓
ABB Robotics
IRB 2600-20/1.65
Payload 20 kg
Reach 1,650 mm
Repeat. 0.04 mm
Articulated arm ✓
ABB Robotics
IRB 6760-200/3.2
Payload 200 kg
Reach 3,200 mm
Repeat. 0.06 mm
Articulated arm ✓
ABB Robotics
IRB 6790-235/2.65
Payload 235 kg
Reach 2,650 mm
Repeat. 0.05 mm
Articulated arm ✓
ABB Robotics
IRB 8700-550/4.2
Payload 550 kg
Reach 4,200 mm
Repeat. 0.1 mm
Collaborative ✓
Doosan Robotics
H2515
Payload 25 kg
Reach 1,500 mm
Repeat. 0.1 mm
Collaborative ✓
Han's Robot
Elfin E10L-Pro
Payload 8 kg
Reach 1,300 mm
Repeat. 0.03 mm
Articulated arm ✓
JAKA
A12L
Payload 12 kg
Reach 1,425 mm
Repeat. 0.03 mm
Articulated arm ✓
JAKA
A12
Payload 12 kg
Reach 1,425 mm
Repeat. 0.03 mm
Articulated arm ✓
JAKA
A 20
Payload 20 kg
Reach 1,780 mm
Repeat. 0.05 mm
Articulated arm ✓
JAKA
A5
Payload 5 kg
Reach 954 mm
Repeat. 0.02 mm
Articulated arm ✓
Kawasaki Robotics
MX350L
Payload 350 kg
Reach 3,018 mm
Repeat. 0.1 mm
Articulated arm ✓
Kawasaki Robotics
RS030N
Payload 30 kg
Reach 2,100 mm
Repeat. 0.06 mm
SCARA ✓
OMRON Robotics
i4-550L
Payload 5 kg
Reach 550 mm
Repeat. 0.01 mm
SCARA ✓
OMRON Robotics
i4-450L
Payload 5 kg
Reach 450 mm
Repeat. 0.01 mm
SCARA ✓
OMRON Robotics
i4-350L
Payload 5 kg
Reach 350 mm
Repeat. 0.01 mm
Articulated arm ✓
OMRON Robotics
Viper 650
Payload 5 kg
Reach 653 mm
Repeat. 0.02 mm
Articulated arm ✓
OMRON Robotics
Viper 850
Payload 5 kg
Reach 855 mm
Repeat. 0.03 mm
Articulated arm ✓
ABB Robotics
IRB 1200-7/0.7
Payload 7 kg
Reach 700 mm
Repeat. 0.02 mm
Articulated arm ✓
ABB Robotics
IRB 1660ID-6/1.55
Payload 6 kg
Reach 1,550 mm
Repeat. 0.02 mm
Articulated arm ✓
ABB Robotics
IRB 4600-60/2.05
Payload 60 kg
Reach 2,050 mm
Repeat. 0.05 mm
Collaborative ✓
AUBO
iS20
Payload 20 kg
Reach 1,647 mm
Repeat. 0.05 mm
Collaborative ✓
AUBO
iS35
Payload 35 kg
Reach 2,100 mm
Repeat. 0.05 mm
Collaborative ✓
Han's Robot
Elfin E05-L
Payload 3.5 kg
Reach 950 mm
Repeat. 0.03 mm
Collaborative ✓
Han's Robot
Elfin E10-L
Payload 8 kg
Reach 1,300 mm
Repeat. 0.1 mm
Collaborative ✓
Kawasaki Robotics
duAro2
Payload 3 kg
Reach 785 mm
Repeat. 0.05 mm
Articulated arm ✓
Kawasaki Robotics
RS025S
Payload 25 kg
Reach 1,325 mm
Repeat. 0.04 mm
Articulated arm ✓
Mitsubishi Electric
MELFA RV-8FR
Payload 8 kg
Reach 727 mm
Repeat. 0.02 mm
Articulated arm ✓
Yaskawa Motoman
MHP45L
Payload 45 kg
Reach 2,850 mm
Repeat. 0.07 mm
Articulated arm ✓
ABB Robotics
IRB 5710-110/2.3
Payload 110 kg
Reach 2,300 mm
Repeat. 0.04 mm
Articulated arm ✓
ABB Robotics
IRB 5720-180/2.6
Payload 180 kg
Reach 2,600 mm
Repeat. 0.04 mm
Articulated arm ✓
ABB Robotics
IRB 6700-150/3.20
Payload 150 kg
Reach 3,200 mm
Repeat. 0.05 mm
Articulated arm ✓
ABB Robotics
IRB 7600-500/2.55
Payload 500 kg
Reach 2,550 mm
Repeat. 0.08 mm
Collaborative ✓
AUBO
iS20L
Payload 20 kg
Reach 2,000 mm
Repeat. 0.03 mm
Articulated arm ✓
FANUC
M-1000iA
Payload 1,000 kg
Reach 3,253 mm
Repeat. 0.1 mm
Articulated arm ✓
Inovance
IR-R25-178S
Payload 25 kg
Reach 1,783 mm
Repeat. 0.03 mm
Articulated arm ✓
Inovance
IR-R16-210
Payload 16 kg
Reach 2,107 mm
Repeat. 0.03 mm
Articulated arm ✓
Kawasaki Robotics
BX200L
Payload 200 kg
Reach 2,597 mm
Repeat. 0.06 mm
SCARA ✓
Epson Robots
G10
Payload 10 kg
Reach 650 mm
Repeat. 0.025 mm
SCARA ✓
Epson Robots
G20
Payload 20 kg
Reach 850 mm
Repeat. 0.025 mm
Articulated arm ✓
Epson Robots
Flexion N6
Payload 6 kg
Reach 860 mm
Repeat. 0.03 mm
Articulated arm ✓
Estun
ER10B-900-MI
Payload 10 kg
Reach 900 mm
Repeat. 0.03 mm
Articulated arm ✓
Estun
ER12B-1510
Payload 12 kg
Reach 1,510 mm
Repeat. 0.03 mm
Articulated arm ✓
Estun
ER20-1200-MI
Payload 20 kg
Reach 1,200 mm
Repeat. 0.03 mm
Articulated arm ✓
Estun
ER35B-1810
Payload 35 kg
Reach 1,810 mm
Repeat. 0.04 mm
Articulated arm ✓
Estun
ER420-3300
Payload 420 kg
Reach 3,300 mm
Repeat. 0.1 mm
Articulated arm ✓
Estun
ER600-2800
Payload 600 kg
Reach 2,800 mm
Repeat. 0.1 mm
Articulated arm ✓
Estun
ER8-720-MI
Payload 8 kg
Reach 727 mm
Repeat. 0.02 mm
Articulated arm ✓
Estun
ER700-2800
Payload 700 kg
Reach 2,800 mm
Repeat. 0.1 mm
Articulated arm ✓
Estun
ER7-910-MI
Payload 7 kg
Reach 910 mm
Repeat. 0.03 mm
Articulated arm ✓
Estun
ER70B-2100-LI
Payload 70 kg
Reach 2,100 mm
Repeat. 0.05 mm
Articulated arm ✓
Inovance
IR-R10-140S-INT
Payload 10 kg
Reach 1,422 mm
Repeat. 0.05 mm
Articulated arm ✓
Inovance
IR-R10-110S-INT
Payload 10 kg
Reach 1,102 mm
Repeat. 0.02 mm
Articulated arm ✓
Inovance
IR-R10H-120S-INT
Payload 10 kg
Reach 1,201 mm
Repeat. 0.025 mm
Articulated arm ✓
Inovance
IR-R11-90S-INT
Payload 11.3 kg
Reach 902 mm
Repeat. 0.02 mm
Articulated arm ✓
Inovance
IR-R20-170S5
Payload 20 kg
Reach 1,723 mm
Repeat. 0.05 mm
Articulated arm ✓
Inovance
IR-R7H-72
Payload 7 kg
Reach 722 mm
Repeat. 0.015 mm
Articulated arm ✓
Inovance
IR-R4H-54S-INT
Payload 4 kg
Reach 546 mm
Repeat. 0.02 mm
Articulated arm ✓
Inovance
IR-R7H-90S-INT
Payload 7 kg
Reach 912 mm
Repeat. 0.02 mm
Articulated arm ✓
Epson Robots
C12XL
Payload 12 kg
Reach 1,400 mm
Repeat. 0.05 mm
SCARA ✓
Estun
ER10-600-SR
Payload 10 kg
Reach 600 mm
Repeat. 0.025 mm
Palletizer ✓

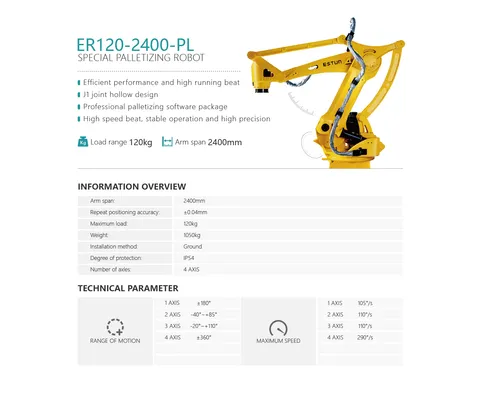

Estun
ER120-2400-PL
Payload 120 kg
Reach 2,400 mm
Repeat. 0.04 mm
Articulated arm ✓
Estun
ER20B-1760
Payload 20 kg
Reach 1,756 mm
Repeat. 0.03 mm
Articulated arm ✓
Estun
ER220-3100
Payload 220 kg
Reach 3,100 mm
Repeat. 0.06 mm
Articulated arm ✓
Estun
ER130B-3200
Payload 130 kg
Reach 3,200 mm
Repeat. 0.06 mm
Articulated arm ✓
Estun
ER160B-3200
Payload 160 kg
Reach 3,200 mm
Repeat. 0.06 mm
SCARA ✓
Estun
ER50-1200-SR
Payload 50 kg
Reach 1,200 mm
Repeat. 0.025 mm
Collaborative ✓
FANUC
CRX-5iA
Payload 5 kg
Reach 994 mm
Repeat. 0.03 mm
Articulated arm ✓
FANUC
M-800iA/60
Payload 60 kg
Reach 2,040 mm
Repeat. 0.015 mm
Articulated arm ✓
FANUC
R-1000iA/120F-7B
Payload 120 kg
Reach 2,230 mm
Repeat. 0.03 mm
Collaborative ✓
Han's Robot
Elfin E15
Payload 15 kg
Reach 1,300 mm
Repeat. 0.1 mm
SCARA ✓
Inovance
IR-S20-100Z42S5
Payload 20 kg
Reach 1,000 mm
Repeat. 0.025 mm
SCARA ✓
Inovance
IR-S20-80Z42S5
Payload 20 kg
Reach 800 mm
Repeat. 0.025 mm
SCARA ✓
Inovance
IR-S4-40Z15S3
Payload 4 kg
Reach 400 mm
Repeat. 0.01 mm
Collaborative ✓
Siasun
GCR10
Payload 10 kg
Reach 1,300 mm
Repeat. 0.03 mm
Collaborative ✓
Siasun
GCR25
Payload 25 kg
Reach 1,800 mm
Repeat. 0.05 mm
Collaborative ✓
Siasun
GCR7
Payload 7 kg
Reach 917 mm
Repeat. 0.02 mm
Collaborative ✓
FANUC
CRX-3iA
Payload 3 kg
Reach 692 mm
Repeat. 0.02 mm
SCARA ✓
Inovance
IR-GS60-120Z40S-INT
Payload 60 kg
Reach 1,200 mm
Repeat. 0.07 mm
Articulated arm ✓
Kawasaki Robotics
MC006V-A
Payload 6 kg
Reach 610 mm
Repeat. 0.03 mm
Articulated arm ✓
Siasun
SR12A
Payload 12 kg
Reach 1,465 mm
Repeat. 0.03 mm
Articulated arm ✓

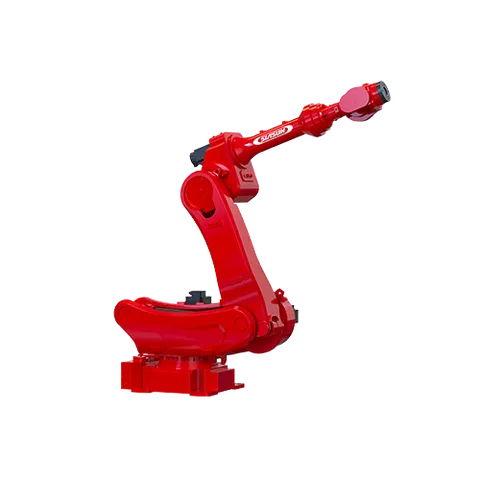

Siasun
SR210A-DW
Payload 210 kg
Reach 3,053 mm
Repeat. 0.06 mm
Articulated arm ✓
Siasun
SR25A-35
Payload 35 kg
Reach 1,803 mm
Repeat. 0.05 mm
Articulated arm ✓
Siasun
SR50A
Payload 50 kg
Reach 2,158 mm
Repeat. 0.05 mm
Articulated arm ✓
Stäubli Robotics
TX340 SH
Payload 190 kg
Reach 3,680 mm
Repeat. 0.1 mm
Articulated arm ✓
Yaskawa Motoman
GP600
Payload 600 kg
Reach 2,942 mm
Repeat. 0.1 mm
Articulated arm ✓
Yaskawa Motoman
GP70L
Payload 70 kg
Reach 4,715 mm
Repeat. 0.05 mm
SCARA ✓
ABB Robotics
IRB 930-22/1.05
Payload 22 kg
Reach 1,050 mm
Repeat. 0.02 mm
Articulated arm ✓
Estun
ER220B-2650
Payload 220 kg
Reach 2,650 mm
Repeat. 0.06 mm
Collaborative ✓
FANUC
CR-15iA
Payload 15 kg
Reach 1,441 mm
Repeat. 0.02 mm
Collaborative ✓
FANUC
CR-7iA
Payload 7 kg
Reach 717 mm
Repeat. 0.01 mm
Collaborative ✓
Kawasaki Robotics
CL103N
Payload 3 kg
Reach 590 mm
Repeat. 0.02 mm
Collaborative ✓
Kawasaki Robotics
CL105N
Payload 5 kg
Reach 800 mm
Repeat. 0.02 mm
Collaborative ✓
Kawasaki Robotics
CL108N
Payload 8 kg
Reach 1,300 mm
Repeat. 0.02 mm
Collaborative ✓
Kawasaki Robotics
CL110N
Payload 10 kg
Reach 1,000 mm
Repeat. 0.02 mm
Articulated arm ✓
Kawasaki Robotics
MXP360L-A
Payload 360 kg
Reach 3,234 mm
Repeat. 0.08 mm
Articulated arm ✓
KUKA
KR 10 R1100-3
Payload 10 kg
Reach 1,101 mm
Repeat. 0.02 mm
Articulated arm ✓
KUKA
KR 13 R900-3
Payload 13 kg
Reach 901 mm
Repeat. 0.02 mm
Articulated arm ✓
KUKA
KR 4 R600
Payload 4.6 kg
Reach 601 mm
Repeat. 0.015 mm
Articulated arm ✓
KUKA
KR 6 R1840-2
Payload 6 kg
Reach 1,840 mm
Repeat. 0.04 mm
Collaborative ✓
ROKAE
xMate CR12
Payload 12 kg
Reach 1,434 mm
Repeat. 0.03 mm
Collaborative ✓
ROKAE
xMate CR18
Payload 18 kg
Reach 1,062 mm
Repeat. 0.03 mm
Collaborative ✓
ROKAE
xMate CR20
Payload 20 kg
Reach 1,798 mm
Repeat. 0.05 mm
Collaborative ✓
ROKAE
xMate CR35
Payload 35 kg
Reach 2,246 mm
Repeat. 0.05 mm
Collaborative ✓
ROKAE
xMate CR45
Payload 45 kg
Reach 1,947 mm
Repeat. 0.05 mm
Articulated arm ✓
Siasun
SN10A
Payload 10 kg
Reach 1,152 mm
Repeat. 0.03 mm
Articulated arm ✓
Siasun
SN4A
Payload 4 kg
Reach 580 mm
Repeat. 0.02 mm
Articulated arm ✓
Siasun
SR210A
Payload 210 kg
Reach 2,658 mm
Repeat. 0.06 mm
Articulated arm ✓
Siasun
SR220A
Payload 220 kg
Reach 2,600 mm
Repeat. 0.06 mm
Articulated arm ✓
Siasun
SR270A
Payload 270 kg
Reach 2,700 mm
Repeat. 0.06 mm
Articulated arm ✓
Siasun
SR360A
Payload 360 kg
Reach 2,830 mm
Repeat. 0.01 mm
Articulated arm ✓
Siasun
SR500A
Payload 500 kg
Reach 2,525 mm
Repeat. 0.1 mm
Articulated arm ✓
Yaskawa Motoman
PH200RF
Payload 200 kg
Reach 3,505 mm
Repeat. 0.5 mm
Articulated arm ✓
Yaskawa Motoman
PH130RF
Payload 130 kg
Reach 3,474 mm
Repeat. 0.3 mm
Collaborative ✓
Dobot
MG400
Payload 0.8 kg
Reach 440 mm
Repeat. 0.05 mm
Articulated arm ✓
Estun
ER100B-3000
Payload 100 kg
Reach 3,000 mm
Repeat. 0.06 mm
Articulated arm ✓
Estun
ER150-3200-PR
Payload 150 kg
Reach 3,200 mm
Repeat. 0.06 mm
Articulated arm ✓
Estun
ER170B-2650
Payload 170 kg
Reach 2,650 mm
Repeat. 0.2 mm
Articulated arm ✓
Estun
ER30B-2700-LI
Payload 30 kg
Reach 2,700 mm
Repeat. 0.05 mm
Articulated arm ✓
Estun
ER350-3300
Payload 350 kg
Reach 3,300 mm
Repeat. 0.3 mm
Articulated arm ✓
Estun
ER500-2800
Payload 500 kg
Reach 2,800 mm
Repeat. 0.3 mm
Articulated arm ✓
Estun
ER50B-2100
Payload 50 kg
Reach 2,100 mm
Repeat. 0.05 mm
Articulated arm ✓
KUKA
KR 8 R2010-2
Payload 8 kg
Reach 2,013 mm
Repeat. 0.04 mm
Articulated arm ✓
ROKAE
NB12h-12/1.4
Payload 12 kg
Reach 1,473 mm
Repeat. 0.02 mm
Articulated arm ✓
ROKAE
NB220
Payload 220 kg
Reach 3,201 mm
Repeat. 0.08 mm
Articulated arm ✓
ROKAE
NB25-25/1.8
Payload 25 kg
Reach 1,813 mm
Repeat. 0.05 mm
Articulated arm ✓
ROKAE
NB25h-25/1.8
Payload 25 kg
Reach 1,836 mm
Repeat. 0.03 mm
Articulated arm ✓
ROKAE
NB80-80/2.2
Payload 80 kg
Reach 2,200 mm
Repeat. 0.06 mm
Articulated arm ✓
Yaskawa Motoman
SDA10D
Payload 10 kg
Reach 1,440 mm
Repeat. 0.1 mm
Articulated arm ✓
Yaskawa Motoman
SIA20D
Payload 20 kg
Reach 1,498 mm
Repeat. 0.1 mm
Palletizer ✓
Estun
ER500-3200-PL
Payload 500 kg
Reach 3,200 mm
Repeat. 0.1 mm
Articulated arm ✓
KUKA
KR 16 R1100-3
Payload 16 kg
Reach 1,103 mm
Repeat. 0.02 mm
AMR ✓
OMRON Robotics
LD-250
Payload 250 kg
Reach —
Repeat. —
Articulated arm ✓
Yaskawa Motoman
GP4
Payload 4 kg
Reach 1,008 mm
Repeat. 0.01 mm
Articulated arm ✓
KUKA
KR 35 R1840-3
Payload 35 kg
Reach 1,840 mm
Repeat. 0.03 mm
Articulated arm ✓
ROKAE
NB12-10/1.6
Payload 10 kg
Reach 1,602 mm
Repeat. 0.03 mm
Articulated arm ✓
Estun
ER270-2850
Payload 270 kg
Reach 2,850 mm
Repeat. —
SCARA ✓
Estun
ER3-500-SR
Payload 3 kg
Reach 500 mm
Repeat. —
Articulated arm ✓
FANUC
P-20iB
Payload —
Reach 1,475 mm
Repeat. —
AMR ✓
OMRON Robotics
HD-1500
Payload 1,500 kg
Reach —
Repeat. —
AMR ✓

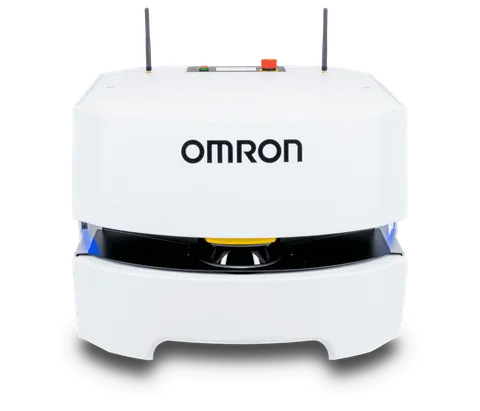

OMRON Robotics
LD-60
Payload 60 kg
Reach —
Repeat. —
AMR ✓
OMRON Robotics
LD-90
Payload 90 kg
Reach —
Repeat. —
AMR ✓
OMRON Robotics
OL-450S
Payload 450 kg
Reach —
Repeat. —
AMR ✓

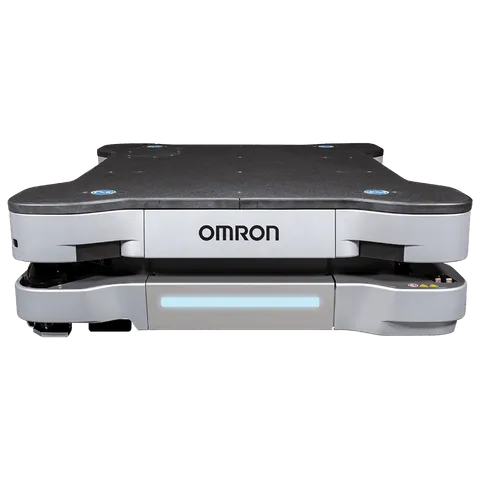

OMRON Robotics
MD-650
Payload 650 kg
Reach —
Repeat. —
AMR ✓
OMRON Robotics
MD-900
Payload 900 kg
Reach —
Repeat. —
K Articulated arm
Articulated arm ✓
Kawasaki Robotics
RL030N
Payload 30 kg
Reach —
Repeat. 0.03 mm
Buyer guides for material handling
Frequently asked questions
- How much payload do I need for material handling?
- It spans the full range. Match the rated payload to your heaviest load plus tooling, and then check the payload at full reach, which is lower than the headline figure.
- Cobot or industrial arm for material handling?
- Cobots handle lighter loads with human collaboration and fast redeployment. For heavy loads, long reach, or high throughput, a fenced industrial arm is the right tool.
