FANUC

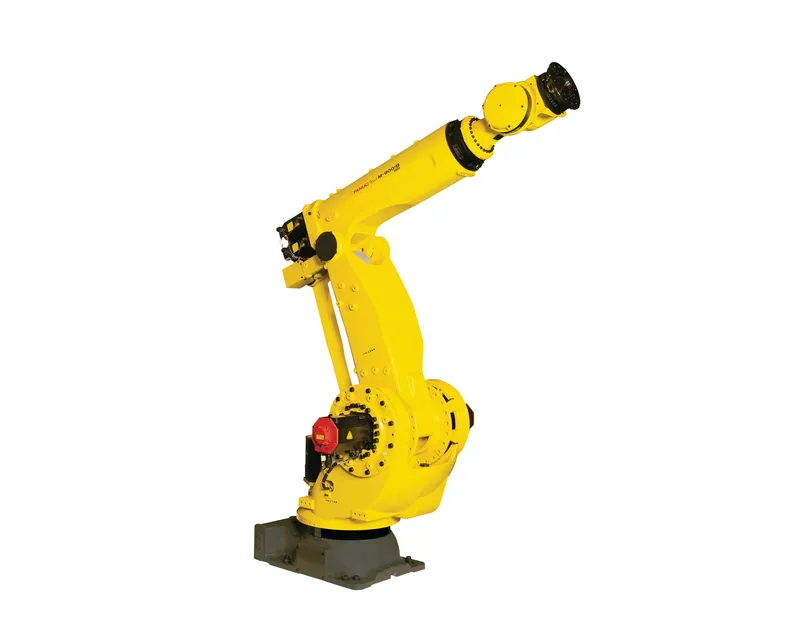

M-900iB/280
A heavy-payload sibling in the M-900 family — 280 kg payload with 2655 mm reach for long-reach, heavy-duty material handling and spot welding.
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 280 kg 87th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 2,655 mm 74th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.1 mm 4th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 6
Motion range & speed
Per-axis travel limits and rotational speeds.
Motion range and maximum speed per joint.
| Axis | Range | Max speed |
|---|---|---|
| J1 | — | 110 °/s |
| J2 | — | 105 °/s |
| J3 | — | 100 °/s |
| J4 | — | 110 °/s |
| J5 | — | 110 °/s |
| J6 | — | 180 °/s |
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 1,700 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- floor
Industrial Robotics Hub — industrialroboticshub.com
Specifications sourced from FANUC official datasheet ↗. Specs last verified 2026-08-31.
Owner reviews
Real, first-hand feedback from people who run the FANUC M-900iB/280. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the FANUC M-900iB/280? +
The FANUC M-900iB/280 has a maximum payload of 280 kg.
What is the reach of the FANUC M-900iB/280? +
The FANUC M-900iB/280 has a maximum reach of 2,655 mm (2.65 m).
What is the repeatability of the FANUC M-900iB/280? +
The FANUC M-900iB/280 has a pose repeatability of ±0.1 mm (ISO 9283), making it suitable for precision work.
How many axes does the FANUC M-900iB/280 have? +
The FANUC M-900iB/280 is a 6-axis articulated arm robot.
What is the FANUC M-900iB/280 used for? +
The FANUC M-900iB/280 is typically used for material-handling, welding, machine-tending.
