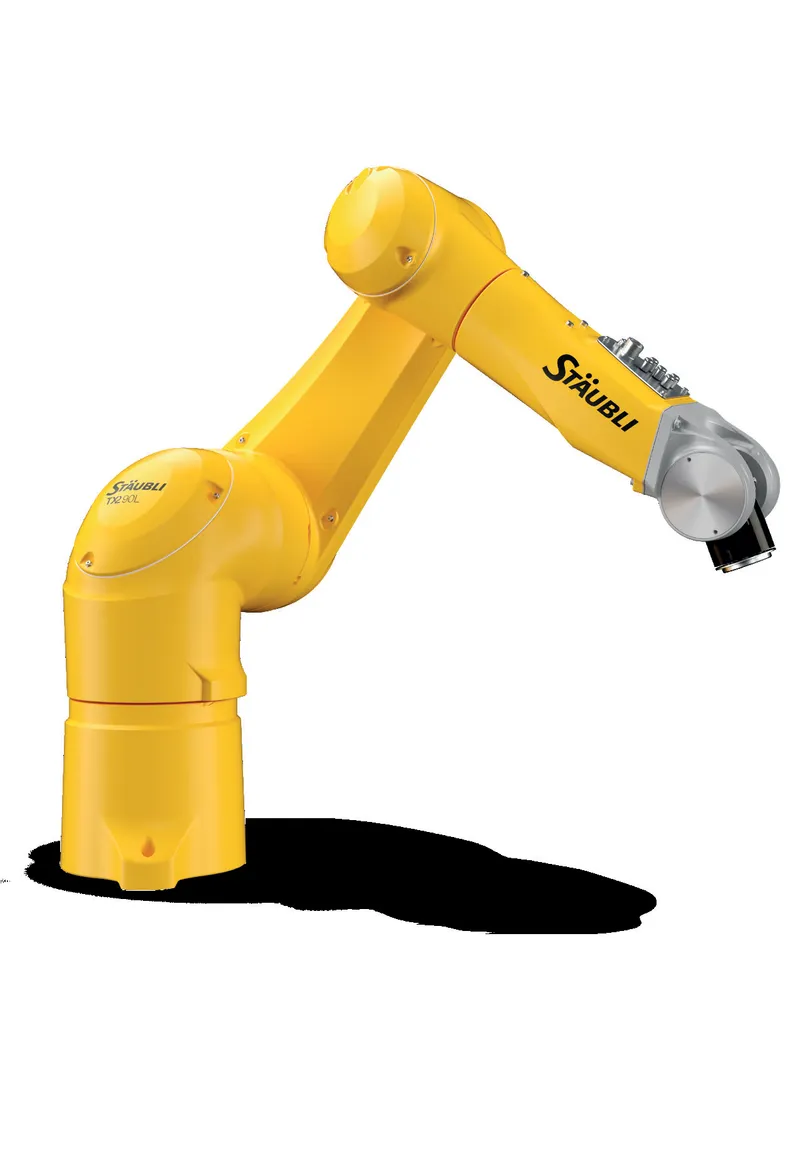

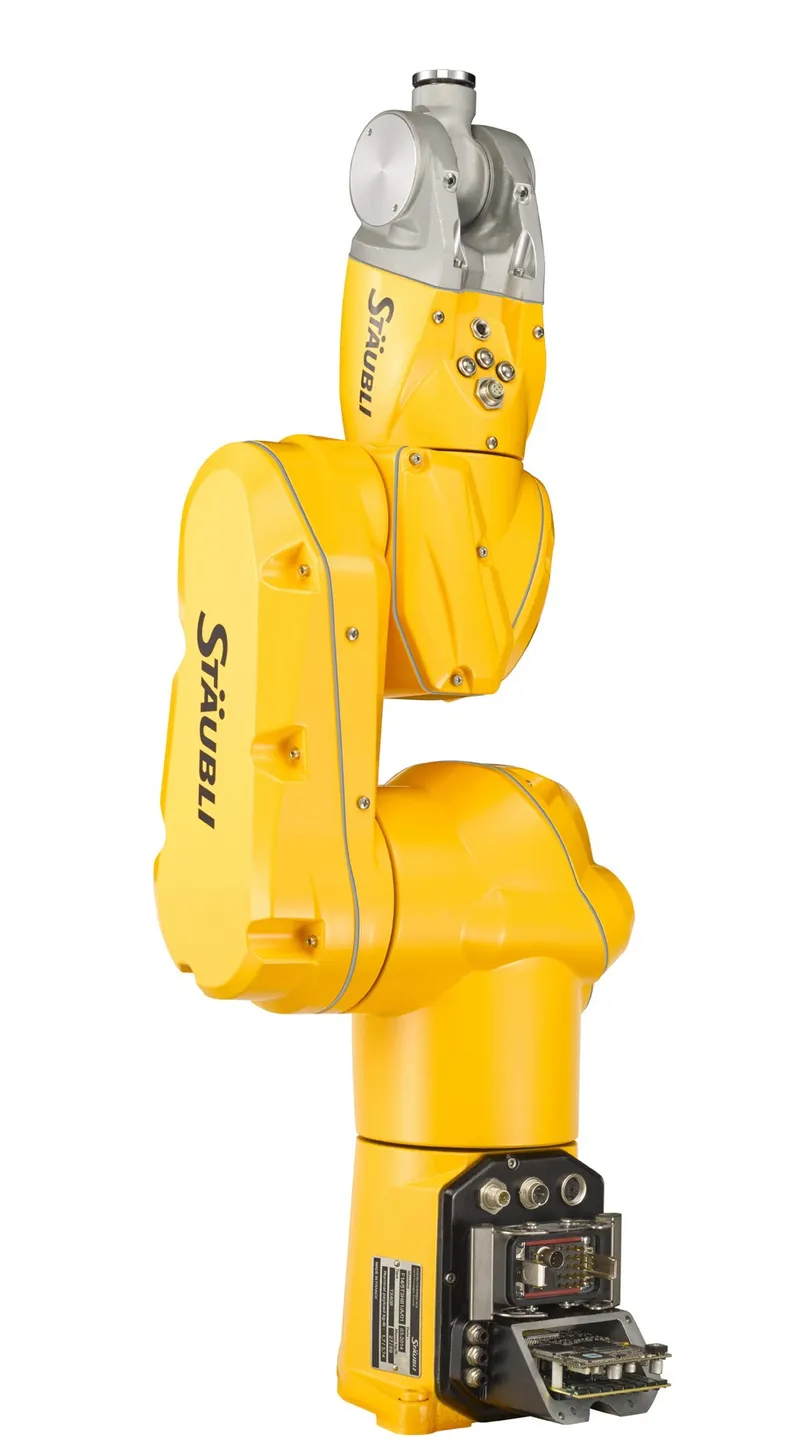

TX2-90

Stäubli's most versatile 6-axis arm — 14 kg payload, 1000 mm reach, ±0.03 mm repeatability, ISO class 5 cleanroom certified and IP65 standard. A benchmark in precision and rigidity for demanding industrial and cleanroom environments.

Partial · 44%

Payload

14 kg

Reach

1,000 mm

Repeatability

±0.03 mm

💲 Price on application

Full specifications

Performance

How much it lifts, how far it reaches, how precisely it repeats.

Payload Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.: 14 kg

50th pct in class

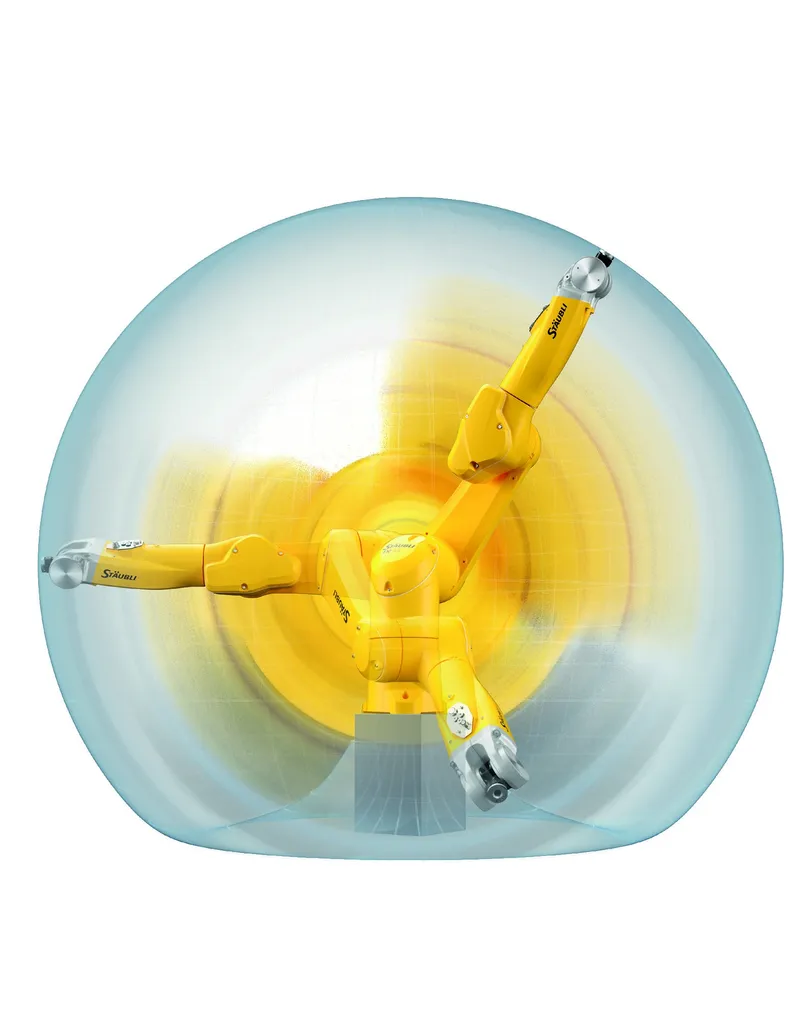

Reach Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.: 1,000 mm

35th pct in class
Repeatability How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.: 0.03 mm

49th pct in class
Axes (DOF) Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.: 6
Max TCP speed Top linear speed of the tool centre point. Higher means faster cycle times.: 10,900 mm/s

92th pct in class

Physical

Size, mass and how it mounts.

Robot weight Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.: 114 kg
Mounting Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).: floor, ceiling, wall

Power & controller

Electrical supply and the control cabinet that drives it.

Controller The control cabinet / unit that runs the robot.: CS9

Environment

Conditions it can operate in — dust, water, temperature, cleanliness.

IP rating (arm) Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.: IP65

47th pct in class
Cleanroom class ISO 14644-1 cleanroom rating the robot is certified for. Lower number = cleaner environment.: 5 ISO

Safety

Standards met and collaborative-operation capability.

Collaborative Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).: No
Safety standards Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).: ISO 10218-1

Control & software

Programming, languages and ecosystem.

Programming How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.: teach-pendant, offline-sim
Languages Native robot programming language(s) — e.g. KRL (KUKA), RAPID (ABB), URScript (UR), INFORM (Yaskawa).: VAL 3
Offline programming Whether programs can be built and validated offline in a digital twin before deployment.: Yes

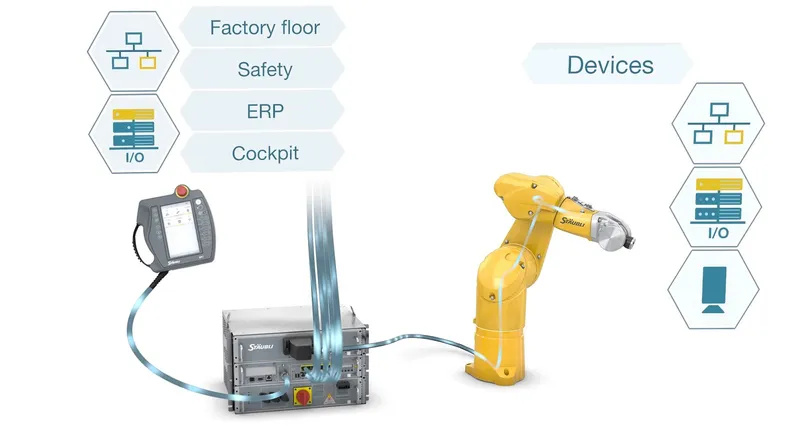

Connectivity & I/O

Signals, fieldbuses and tooling interfaces.

Fieldbus Industrial networks supported for PLC/cell integration (PROFINET, EtherNet/IP, EtherCAT, Modbus TCP, CC-Link, etc.).: PROFINET, EtherNet/IP, EtherCAT, Modbus TCP

Specifications sourced from Stäubli Robotics official datasheet ↗. Specs last verified 2026-06-23.
