Stäubli Robotics

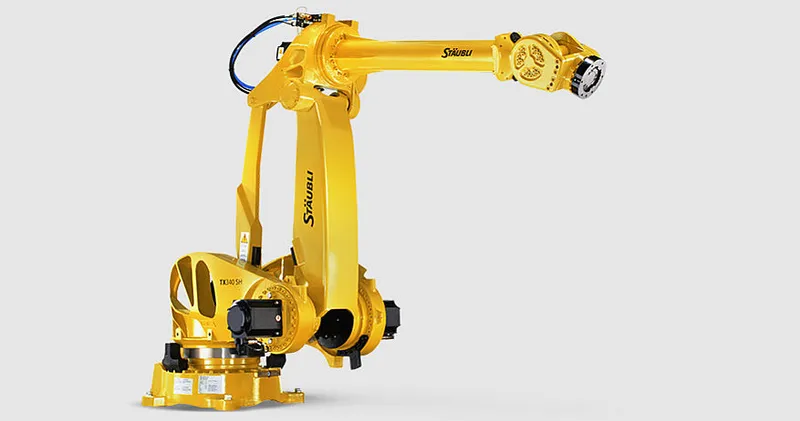

TX340 SH
Stäubli's ultra-heavy-payload 6-axis robot — 190 kg capacity with 3680 mm reach and ±0.1 mm repeatability. The SH (Shelf) kinematics variant is optimised for shelf/rail mounting to service injection moulding machines and large press lines.
💲 Price on application
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 190 kg 77th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 3,680 mm 97th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.1 mm 4th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 6
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 1,430 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- shelf, rail, floor
Power & controller
Electrical supply and the control cabinet that drives it.

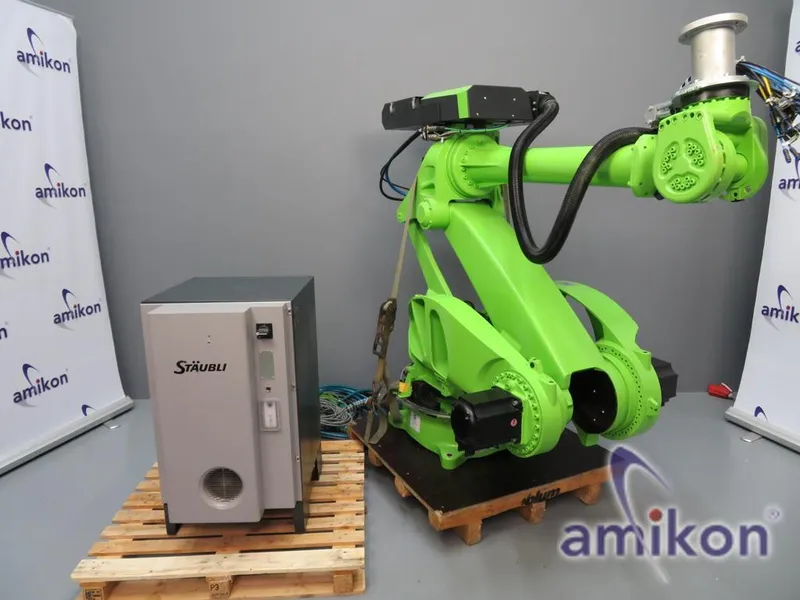

- Controller
The control cabinet / unit that runs the robot.
- CS9
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (arm)
Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.
- IP65 48th pct in class
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- No
- Safety standards
Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).
- ISO 10218-1
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- teach-pendant, offline-sim
- Languages
Native robot programming language(s) — e.g. KRL (KUKA), RAPID (ABB), URScript (UR), INFORM (Yaskawa).
- VAL 3
- Offline programming
Whether programs can be built and validated offline in a digital twin before deployment.
- Yes
Connectivity & I/O
Signals, fieldbuses and tooling interfaces.
- Fieldbus
Industrial networks supported for PLC/cell integration (PROFINET, EtherNet/IP, EtherCAT, Modbus TCP, CC-Link, etc.).
- PROFINET, EtherNet/IP, EtherCAT, Modbus TCP
Industrial Robotics Hub — industrialroboticshub.com
Safety certifications
- ISO 10218-1 — the primary industrial-robot safety standard covering design and construction requirements
Specifications sourced from Stäubli Robotics official datasheet ↗. Specs last verified 2026-08-01.
Owner reviews
Real, first-hand feedback from people who run the Stäubli Robotics TX340 SH. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the Stäubli Robotics TX340 SH? +
The Stäubli Robotics TX340 SH has a maximum payload of 190 kg.
What is the reach of the Stäubli Robotics TX340 SH? +
The Stäubli Robotics TX340 SH has a maximum reach of 3,680 mm (3.68 m).
What is the repeatability of the Stäubli Robotics TX340 SH? +
The Stäubli Robotics TX340 SH has a pose repeatability of ±0.1 mm (ISO 9283), making it suitable for precision work.
How many axes does the Stäubli Robotics TX340 SH have? +
The Stäubli Robotics TX340 SH is a 6-axis articulated arm robot.
What is the Stäubli Robotics TX340 SH used for? +
The Stäubli Robotics TX340 SH is typically used for material-handling, machine-tending, palletising, injection-moulding, press-tending.
What controller does the Stäubli Robotics TX340 SH use? +
The Stäubli Robotics TX340 SH runs on the CS9 controller.
What is the IP rating of the Stäubli Robotics TX340 SH? +
The Stäubli Robotics TX340 SH arm carries an IP65 ingress-protection rating.
How much does the Stäubli Robotics TX340 SH cost? +
Stäubli Robotics TX340 SH: Price on application. Industrial robots are typically quoted per project through authorized distributors.
