i5

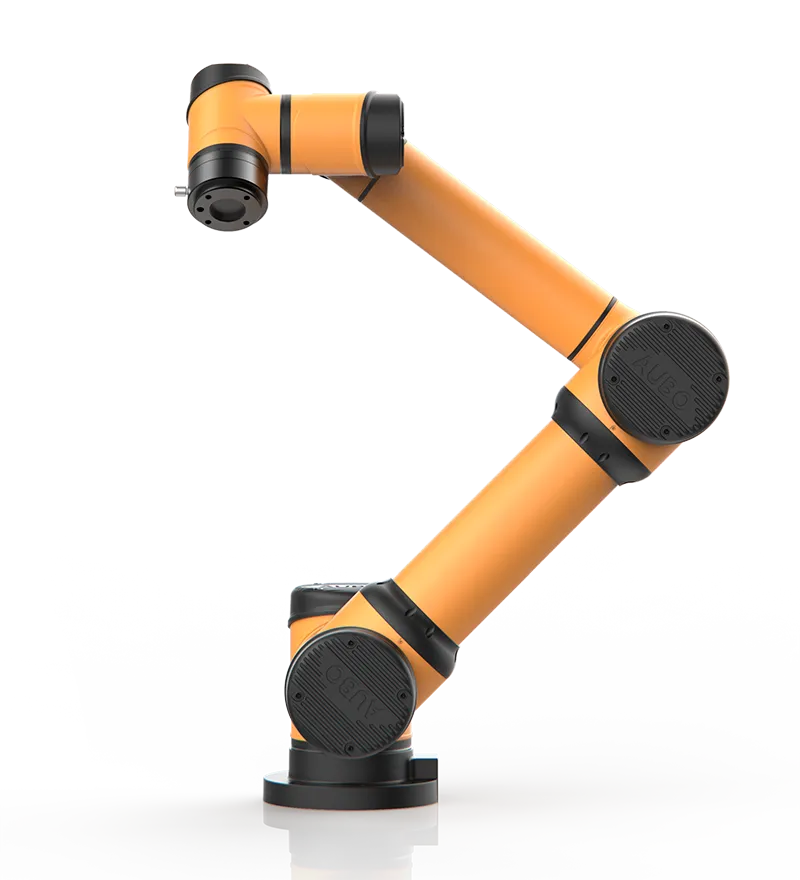

AUBO i5 is a 5 kg, 886.5 mm reach cobot with IP54 protection and an open SDK suited for electronics assembly and light machine tending.

Partial · 56%

Payload

5 kg

Reach

886 mm

Repeatability

±0.02 mm

💲 Price on application

Full specifications

How much it lifts, how far it reaches, how precisely it repeats.

Payload Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.: 5 kg

18th pct in class

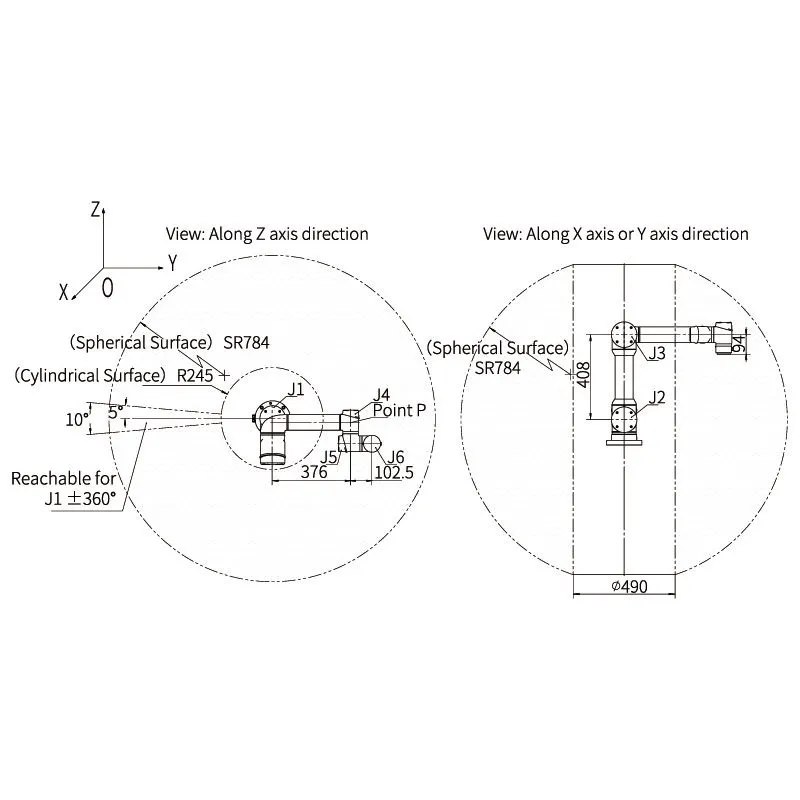

Reach Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.: 886 mm

26th pct in class
Repeatability How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.: 0.02 mm

77th pct in class
Axes (DOF) Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.: 6
Max TCP speed Top linear speed of the tool centre point. Higher means faster cycle times.: 2,800 mm/s

72th pct in class

Size, mass and how it mounts.

Robot weight Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.: 24 kg
Mounting Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).: floor, ceiling, wall, any

Electrical supply and the control cabinet that drives it.

Power draw Typical operating power consumption. Lower is more efficient.: 200 W

70th pct in class

Conditions it can operate in — dust, water, temperature, cleanliness.

IP rating (arm) Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.: IP54

5th pct in class
Operating temp Ambient temperature range for normal operation.: 0 to 50 °C
Humidity Permissible relative-humidity range (non-condensing).: 25 to 90 %RH

Standards met and collaborative-operation capability.

Collaborative Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).: Yes
Safety standards Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).: ISO 10218-1, ISO/TS 15066, PLd Cat.3
Cert. cobot payload Payload at which collaborative (force-limited) operation is still certified.: 5 kg

17th pct in class

Programming, languages and ecosystem.

Programming How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.: hand-guiding, graphical, script
Languages Native robot programming language(s) — e.g. KRL (KUKA), RAPID (ABB), URScript (UR), INFORM (Yaskawa).: C, C++, Python, Lua
ROS support Robot Operating System driver availability (none / ROS 1 / ROS 2 / both).: both
Offline programming Whether programs can be built and validated offline in a digital twin before deployment.: Yes

Signals, fieldbuses and tooling interfaces.

Fieldbus Industrial networks supported for PLC/cell integration (PROFINET, EtherNet/IP, EtherCAT, Modbus TCP, CC-Link, etc.).: Modbus RTU, Modbus TCP, PROFINET
Digital I/O Built-in digital inputs/outputs for grippers, sensors and signalling.: 16 in / 16 out
Analog I/O Built-in analog inputs/outputs.: 4 in / 4 out
Integrated vision Whether a camera / vision system is built into the robot or controller.: No
