AUBO
iS20L

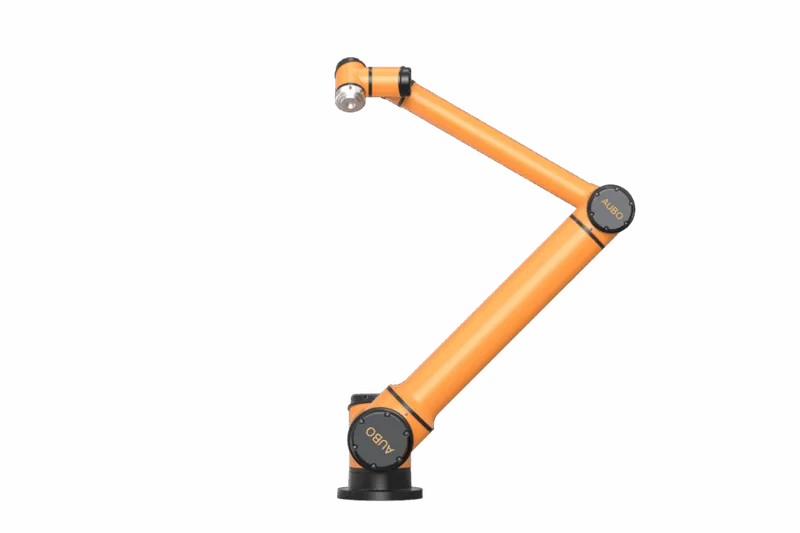

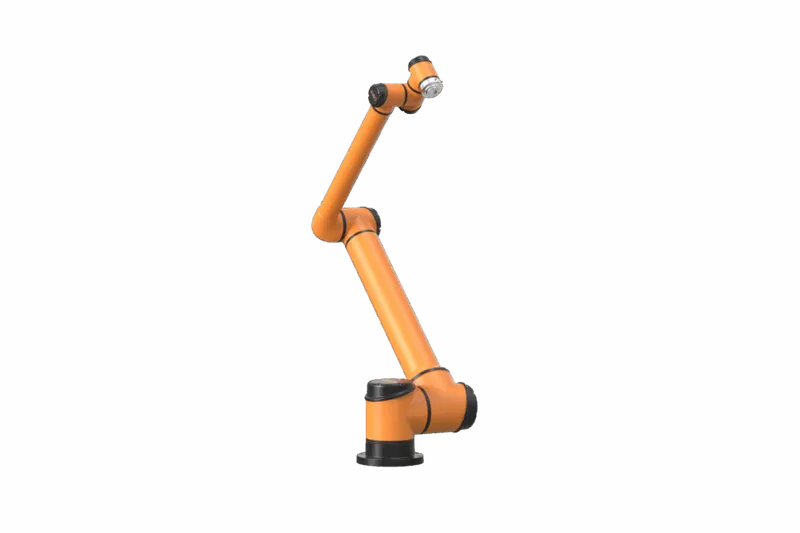

AUBO iS20L extends the iS20 with a 2000 mm reach while retaining 20 kg payload and IP67/68 sealing for wide-span collaborative tasks.
💲 Price on application
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 20 kg 79th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 2,000 mm 98th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.03 mm 49th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 6
Motion range & speed
Per-axis travel limits and rotational speeds.
Motion range and maximum speed per joint.
| Axis | Range | Max speed |
|---|---|---|
| J1 | -360° to 360° | 93.1 °/s |
| J2 | -360° to 360° | 93.1 °/s |
| J3 | -168° to 168° | 178 °/s |
| J4 | -360° to 360° | 237.6 °/s |
| J5 | -360° to 360° | 237.6 °/s |
| J6 | -360° to 360° | 237.6 °/s |
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 66 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- floor, ceiling, wall, any
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (arm)
Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.
- IP67 78th pct in class
- IP rating (wrist)
Ingress protection at the wrist, often higher than the body for wet/washdown duty.
- IP68 79th pct in class
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- Yes
- Safety standards
Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).
- ISO 10218-1, ISO/TS 15066, PLd Cat.3
- Cert. cobot payload
Payload at which collaborative (force-limited) operation is still certified.
- 20 kg 79th pct in class
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- hand-guiding, graphical, script
- Languages
Native robot programming language(s) — e.g. KRL (KUKA), RAPID (ABB), URScript (UR), INFORM (Yaskawa).
- C, C++, Python, Lua
- ROS support
Robot Operating System driver availability (none / ROS 1 / ROS 2 / both).
- both
- Offline programming
Whether programs can be built and validated offline in a digital twin before deployment.
- Yes
Connectivity & I/O
Signals, fieldbuses and tooling interfaces.
- Fieldbus
Industrial networks supported for PLC/cell integration (PROFINET, EtherNet/IP, EtherCAT, Modbus TCP, CC-Link, etc.).
- Modbus RTU, Modbus TCP, EtherNet/IP, PROFINET
- Integrated vision
Whether a camera / vision system is built into the robot or controller.
- No
Industrial Robotics Hub — industrialroboticshub.com
Safety certifications
- ISO 10218-1 — the primary industrial-robot safety standard covering design and construction requirements
- ISO/TS 15066 — the safety standard for collaborative robots working near people (force and speed limits)
- PLd Cat.3 — high safety-integrity (PLd) with a dual-channel architecture that tolerates one fault without losing the safety function
Specifications sourced from AUBO official datasheet ↗. Specs last verified 2026-06-26.
Owner reviews
Real, first-hand feedback from people who run the AUBO iS20L. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the AUBO iS20L? +
The AUBO iS20L has a maximum payload of 20 kg.
What is the reach of the AUBO iS20L? +
The AUBO iS20L has a maximum reach of 2,000 mm (2.00 m).
What is the repeatability of the AUBO iS20L? +
The AUBO iS20L has a pose repeatability of ±0.03 mm (ISO 9283), making it highly accurate for precision work.
How many axes does the AUBO iS20L have? +
The AUBO iS20L is a 6-axis collaborative robot.
What is the AUBO iS20L used for? +
The AUBO iS20L is typically used for palletizing, material-handling, machine-tending, welding.
Is the AUBO iS20L a collaborative robot? +
Yes — the AUBO iS20L is a collaborative robot (cobot) designed to work safely alongside people under ISO/TS 15066.
What is the IP rating of the AUBO iS20L? +
The AUBO iS20L arm carries an IP67 ingress-protection rating.
How much does the AUBO iS20L cost? +
AUBO iS20L: Price on application. Industrial robots are typically quoted per project through authorized distributors.
