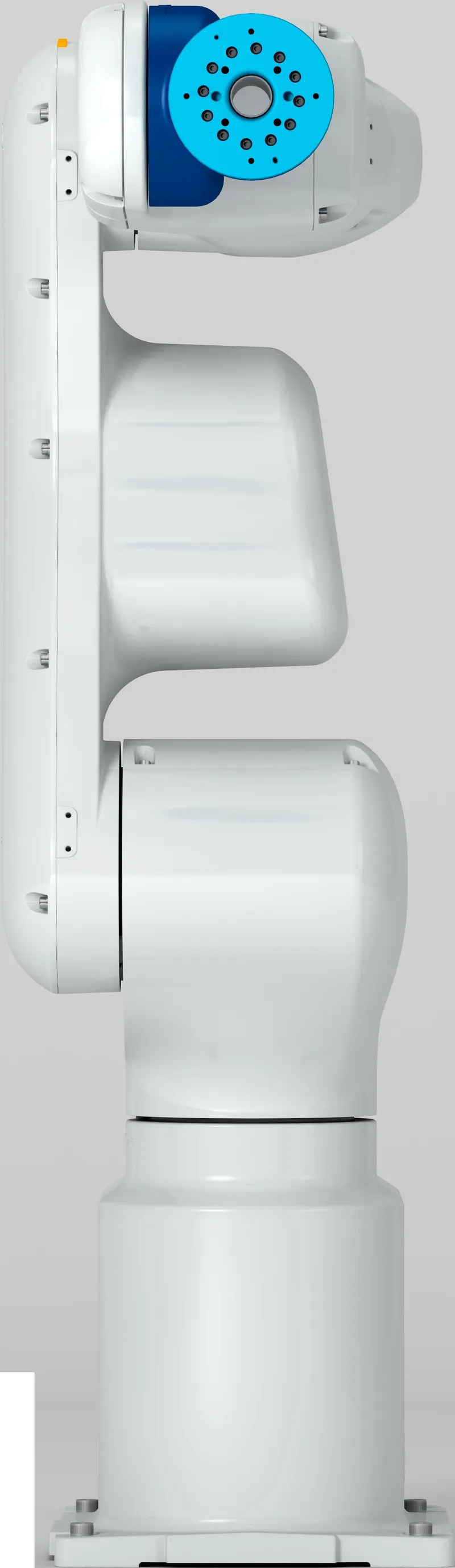

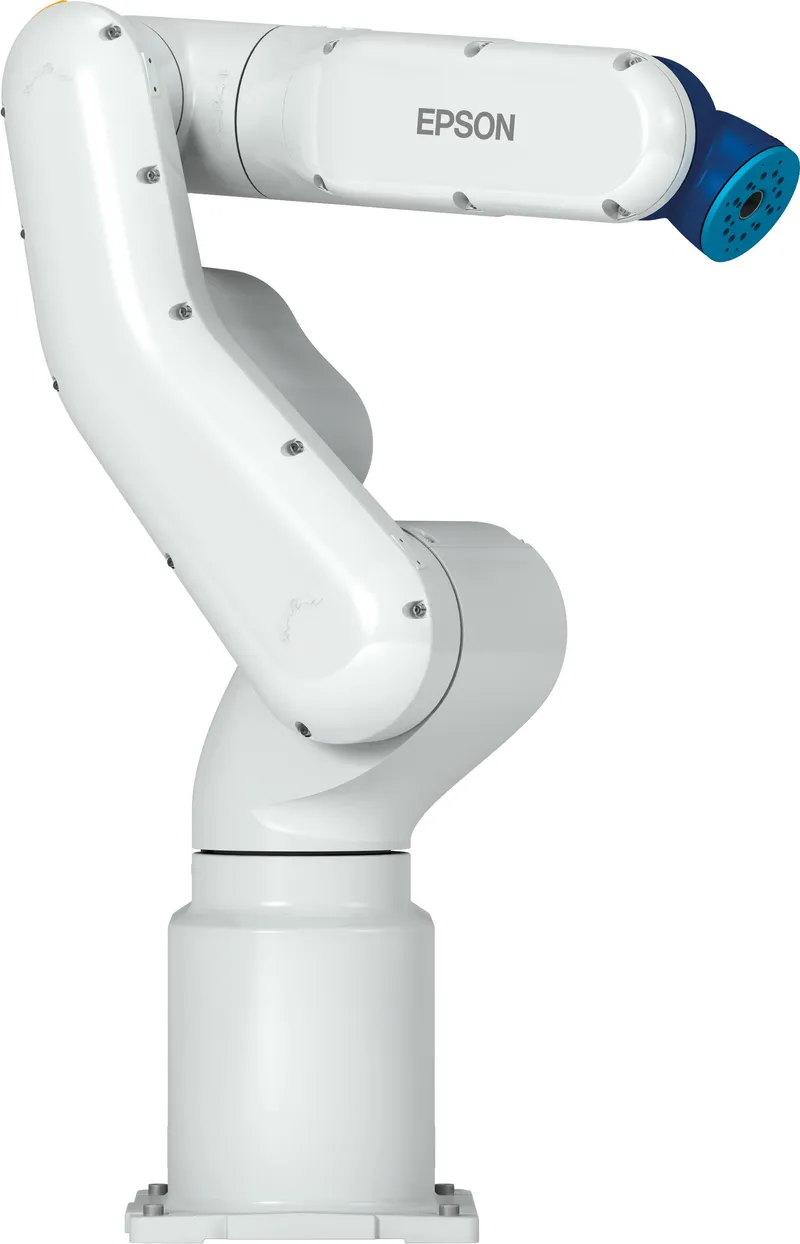

VT6L

An all-in-one 6 kg 6-axis robot with 900 mm reach and controller fully integrated into the robot base. The VT6L accepts standard 100–240 V or 48 V DC power, and is available in cleanroom ISO Class 4 and IP67-protected variants.

Partial · 48%

Payload

6 kg

Reach

920 mm

Repeatability

±0.1 mm

Full specifications

Performance

How much it lifts, how far it reaches, how precisely it repeats.

Payload Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.: 6 kg

19th pct in class
Reach Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.: 920 mm

31th pct in class
Repeatability How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.: 0.1 mm

3th pct in class
Axes (DOF) Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.: 6

Motion range & speed

Per-axis travel limits and rotational speeds.

Motion range and maximum speed per joint.

Axis	Range	Max speed
J1	-170° to 170°	—
J2	-160° to 65°	—
J3	-51° to 190°	—
J4	-200° to 200°	—
J5	-125° to 125°	—
J6	-360° to 360°	—

Physical

Size, mass and how it mounts.

Robot weight Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.: 40 kg
Mounting Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).: floor, ceiling, wall

Power & controller

Electrical supply and the control cabinet that drives it.

Power supply Required input voltage / phase for the controller.: AC 100-240 V Single Phase or 48 V DC
Power draw Typical operating power consumption. Lower is more efficient.: 1,200 W

0th pct in class

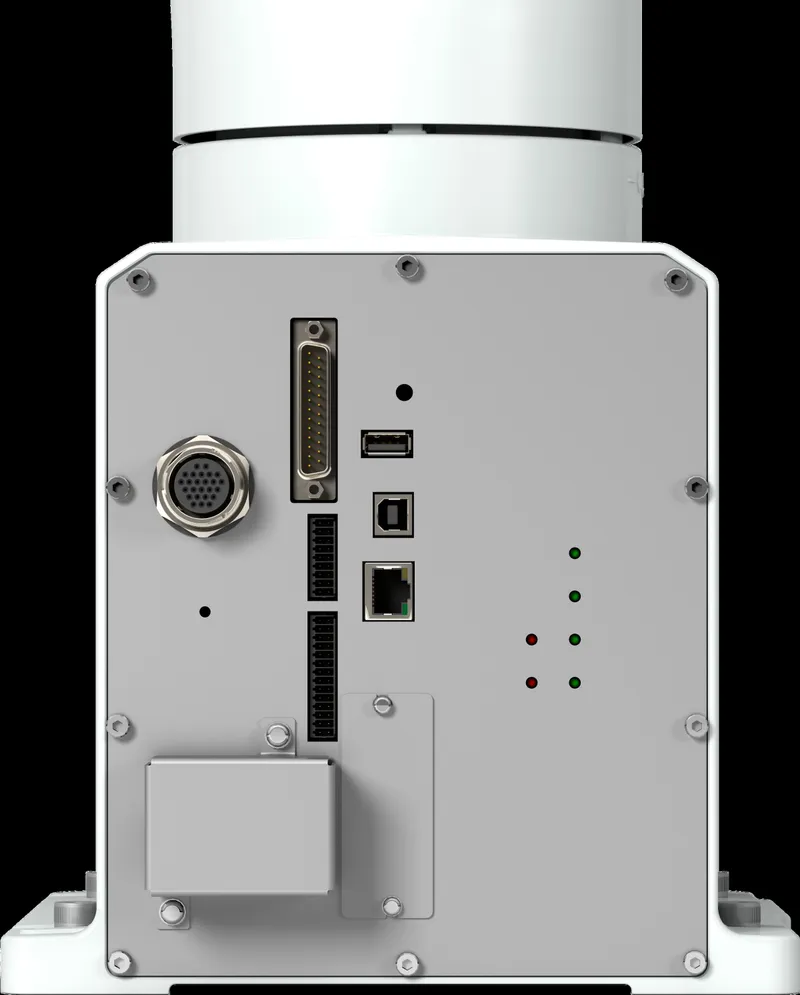

Controller The control cabinet / unit that runs the robot.: Built-in controller

Environment

Conditions it can operate in — dust, water, temperature, cleanliness.

IP rating (arm) Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.: IP20

0th pct in class
Operating temp Ambient temperature range for normal operation.: 5 to 40 °C

Safety

Standards met and collaborative-operation capability.

Collaborative Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).: No
Safety standards Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).: ISO 10218-1

Control & software

Programming, languages and ecosystem.

Programming How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.: teach-pendant, offline-sim
Languages Native robot programming language(s) — e.g. KRL (KUKA), RAPID (ABB), URScript (UR), INFORM (Yaskawa).: SPEL+
Offline programming Whether programs can be built and validated offline in a digital twin before deployment.: Yes

Connectivity & I/O

Signals, fieldbuses and tooling interfaces.

Fieldbus Industrial networks supported for PLC/cell integration (PROFINET, EtherNet/IP, EtherCAT, Modbus TCP, CC-Link, etc.).: PROFINET, EtherNet/IP, EtherCAT
Digital I/O Built-in digital inputs/outputs for grippers, sensors and signalling.: 24 in / 16 out
