Epson Robots
Flexion N6

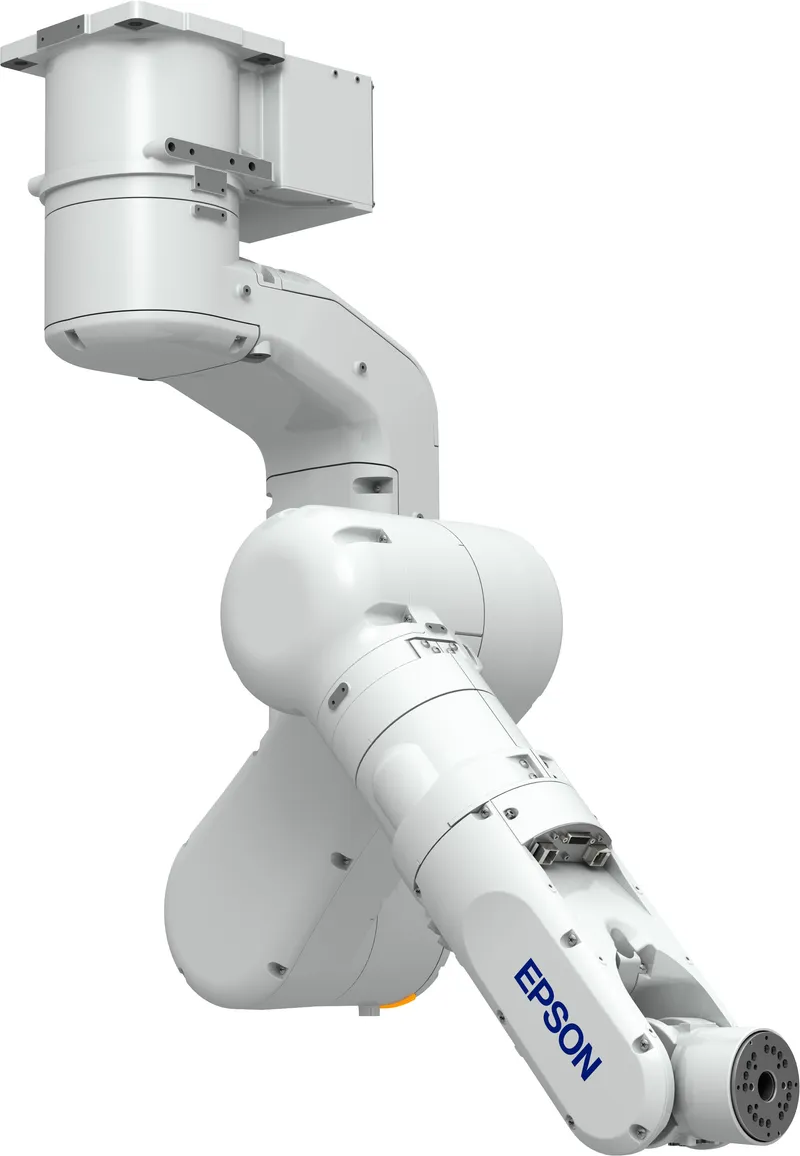

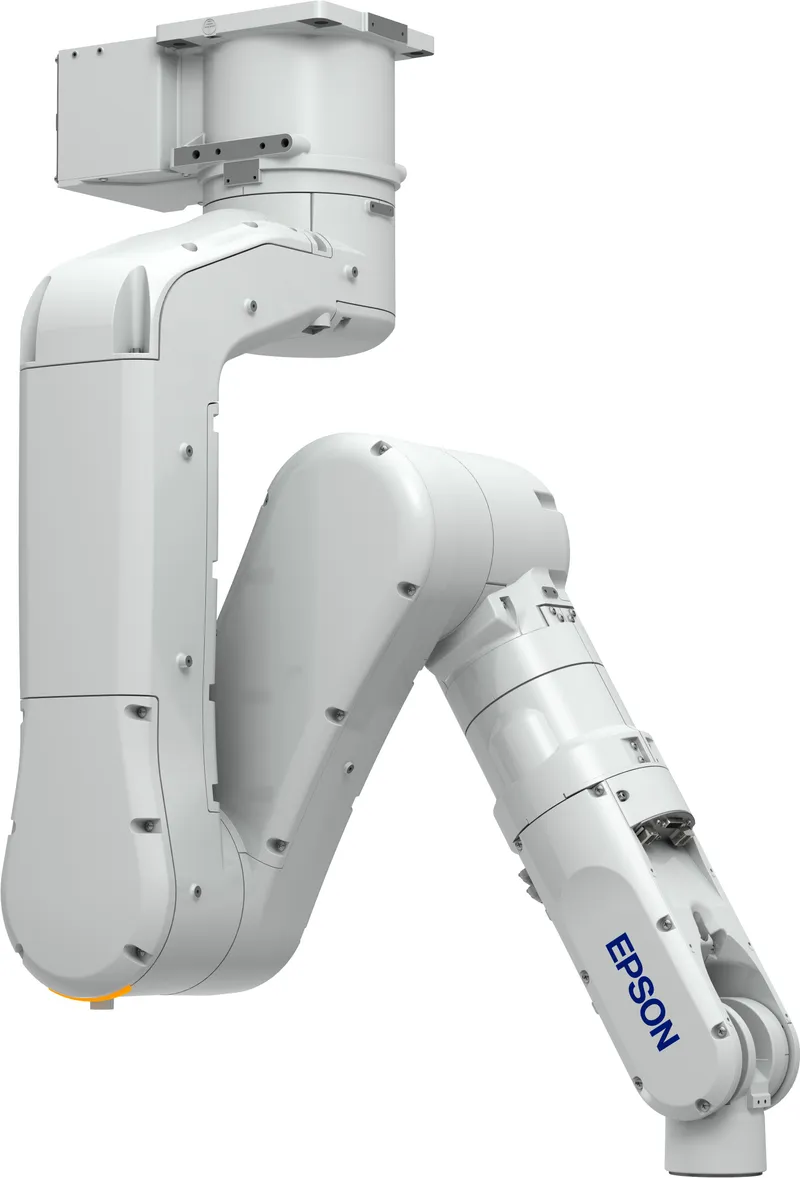

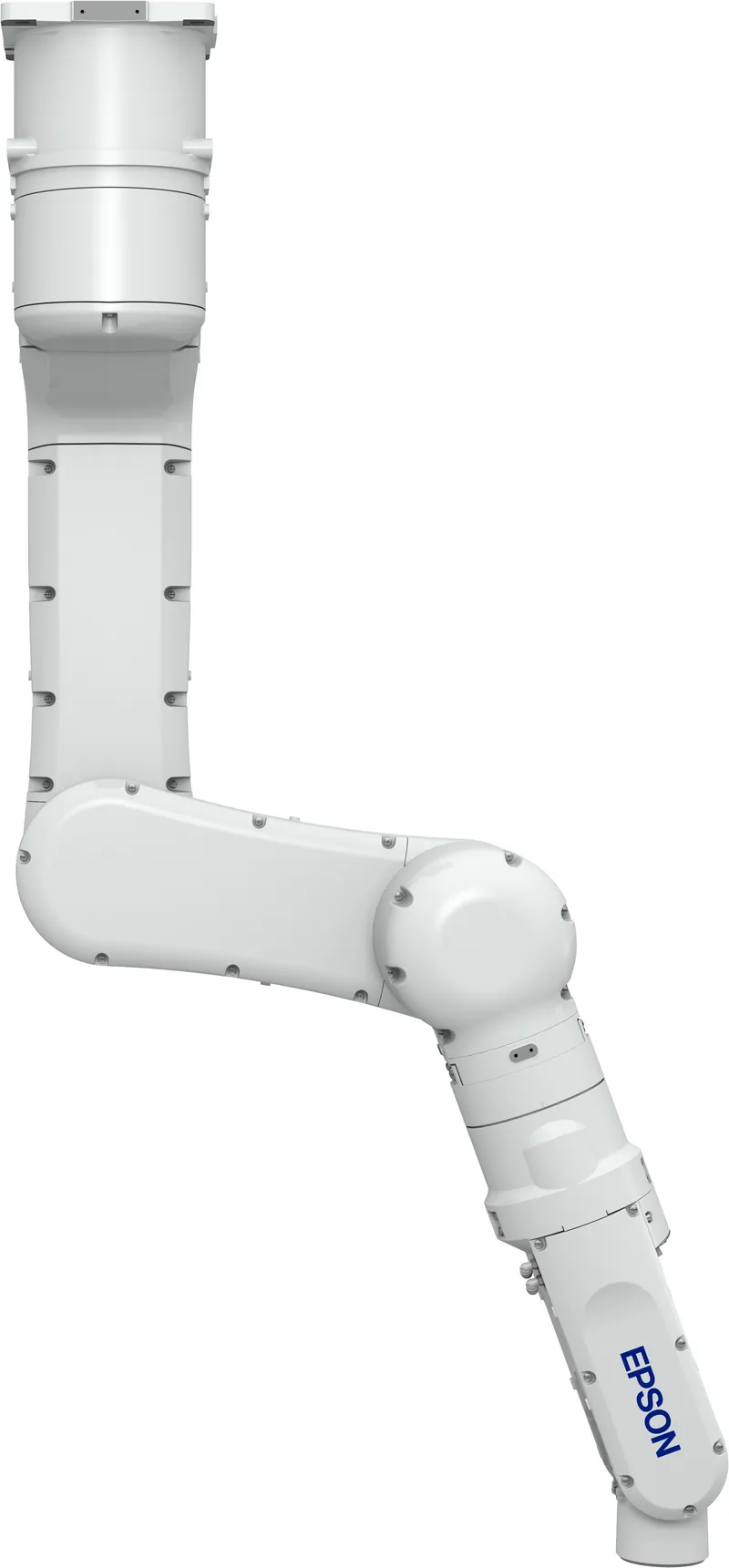

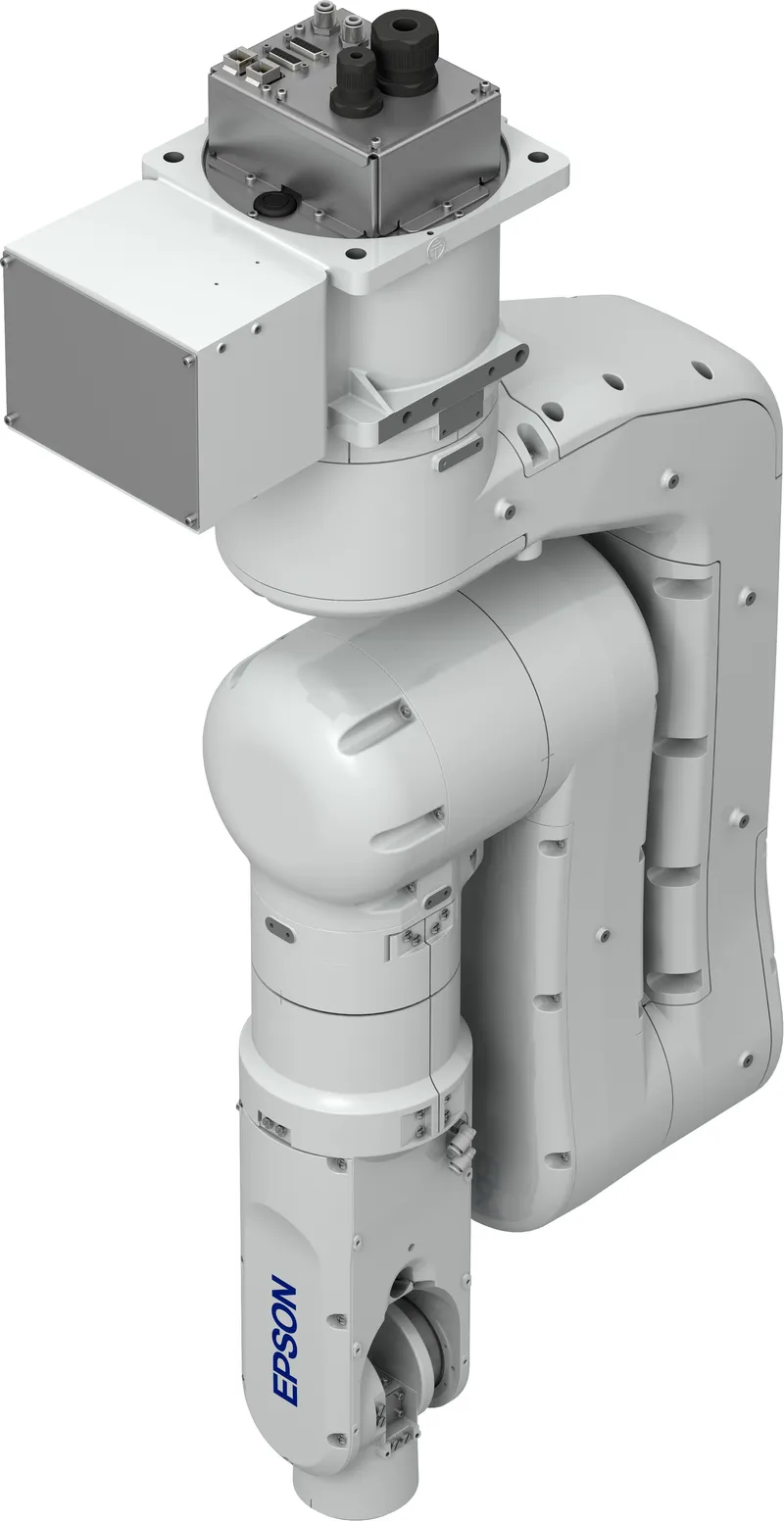

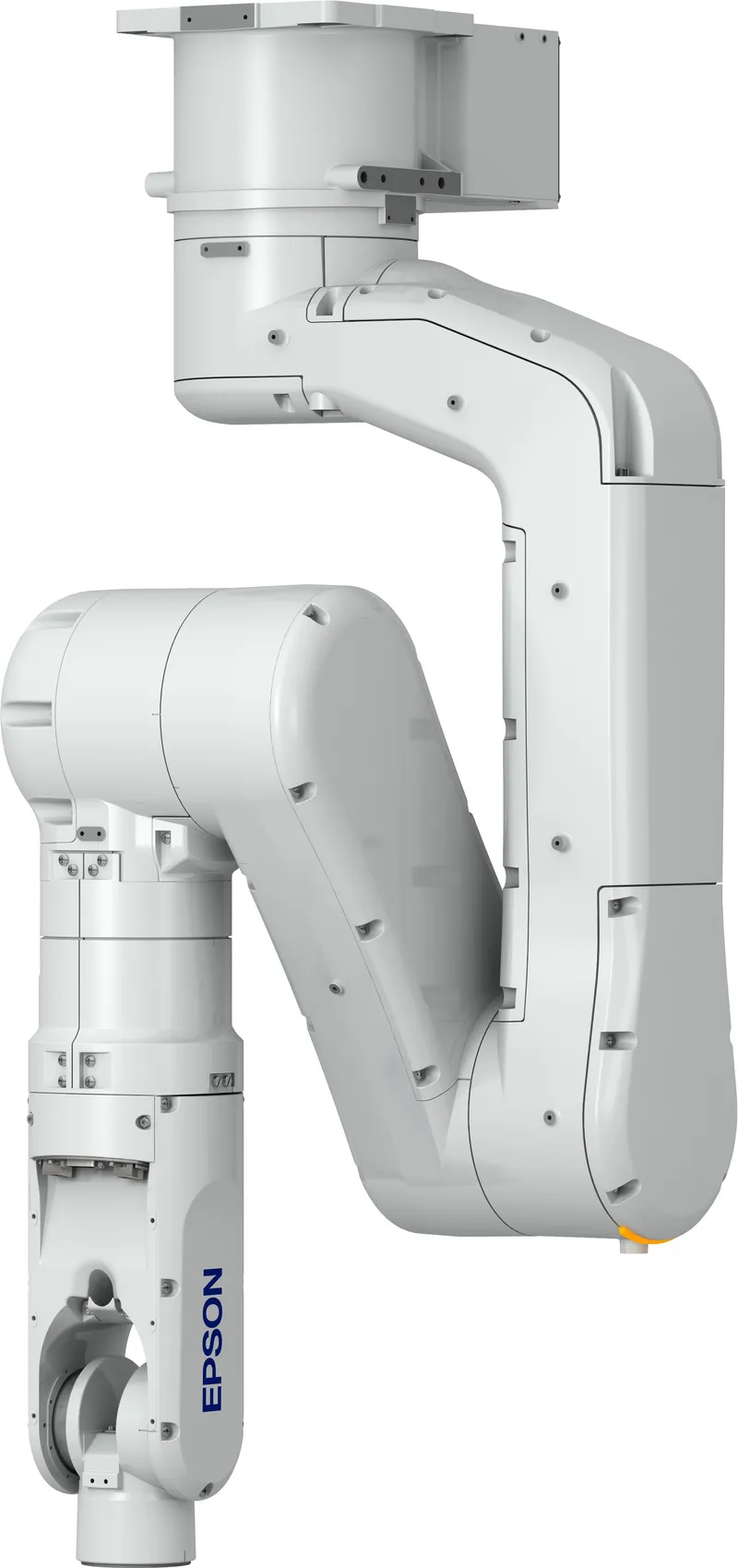

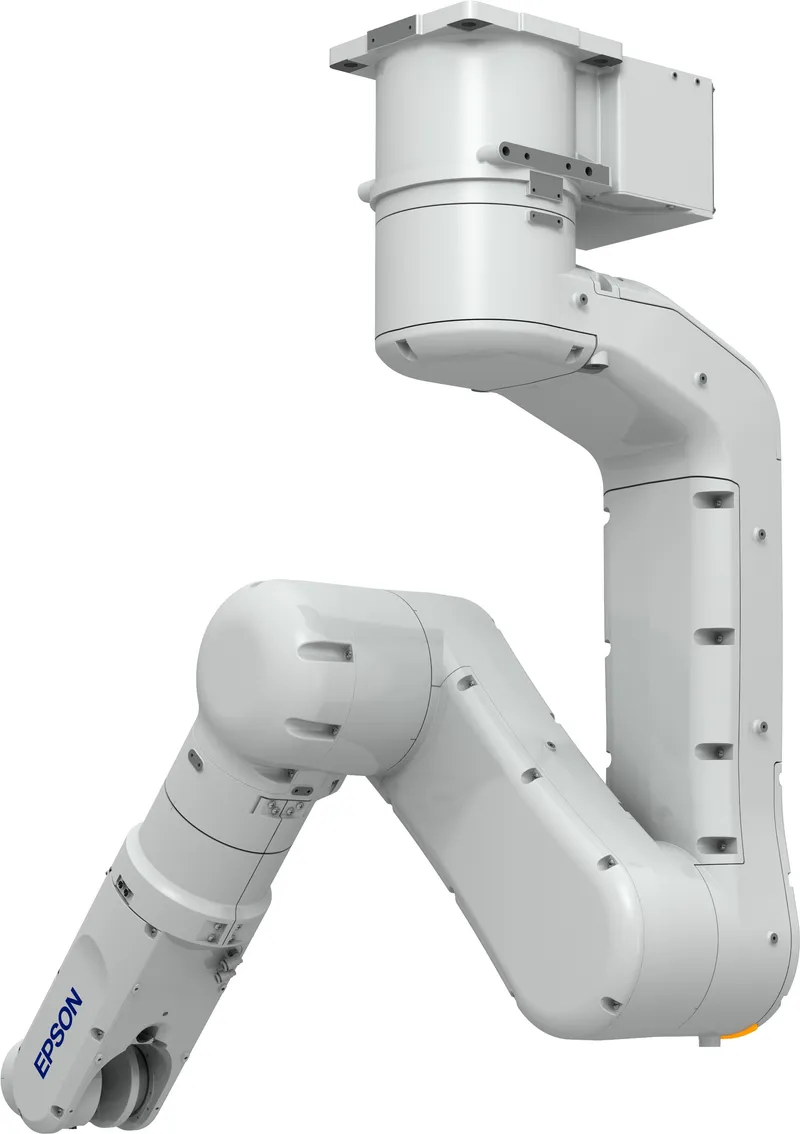

A folding-arm 6-axis robot with 6 kg payload and 850–1000 mm reach. The Flexion N6's collapsible arm retracts to pass through tight openings before extending to full reach, enabling flexible deployments in space-constrained work cells.
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 6 kg 14th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 860 mm 17th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.03 mm 51th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 6
Motion range & speed
Per-axis travel limits and rotational speeds.
Motion range and maximum speed per joint.
| Axis | Range | Max speed |
|---|---|---|
| J1 | -180° to 180° | — |
| J2 | -180° to 180° | — |
| J3 | -180° to 180° | — |
| J4 | -200° to 200° | — |
| J5 | -125° to 125° | — |
| J6 | -360° to 360° | — |
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 64 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- floor, ceiling, wall
Power & controller
Electrical supply and the control cabinet that drives it.
- Power supply
Required input voltage / phase for the controller.
- AC 200-240 V Single Phase
- Controller
The control cabinet / unit that runs the robot.
- RC700A
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (arm)
Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.
- IP20 0th pct in class
- Operating temp
Ambient temperature range for normal operation.
- 5 to 40 °C
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- No
- Safety standards
Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).
- ISO 10218-1
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- teach-pendant, offline-sim
- Languages
Native robot programming language(s) — e.g. KRL (KUKA), RAPID (ABB), URScript (UR), INFORM (Yaskawa).
- SPEL+
- Offline programming
Whether programs can be built and validated offline in a digital twin before deployment.
- Yes
Connectivity & I/O
Signals, fieldbuses and tooling interfaces.
- Fieldbus
Industrial networks supported for PLC/cell integration (PROFINET, EtherNet/IP, EtherCAT, Modbus TCP, CC-Link, etc.).
- PROFINET, EtherNet/IP, EtherCAT
Industrial Robotics Hub — industrialroboticshub.com
Safety certifications
- ISO 10218-1 — the primary industrial-robot safety standard covering design and construction requirements
Specifications sourced from Epson Robots official datasheet ↗. Specs last verified 2026-07-01.
Owner reviews
Real, first-hand feedback from people who run the Epson Robots Flexion N6. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the Epson Robots Flexion N6? +
The Epson Robots Flexion N6 has a maximum payload of 6 kg.
What is the reach of the Epson Robots Flexion N6? +
The Epson Robots Flexion N6 has a maximum reach of 860 mm (0.86 m).
What is the repeatability of the Epson Robots Flexion N6? +
The Epson Robots Flexion N6 has a pose repeatability of ±0.03 mm (ISO 9283), making it highly accurate for precision work.
How many axes does the Epson Robots Flexion N6 have? +
The Epson Robots Flexion N6 is a 6-axis articulated arm robot.
What is the Epson Robots Flexion N6 used for? +
The Epson Robots Flexion N6 is typically used for assembly, pick-and-place, machine-tending, material-handling.
What controller does the Epson Robots Flexion N6 use? +
The Epson Robots Flexion N6 runs on the RC700A controller.
What is the IP rating of the Epson Robots Flexion N6? +
The Epson Robots Flexion N6 arm carries an IP20 ingress-protection rating.
