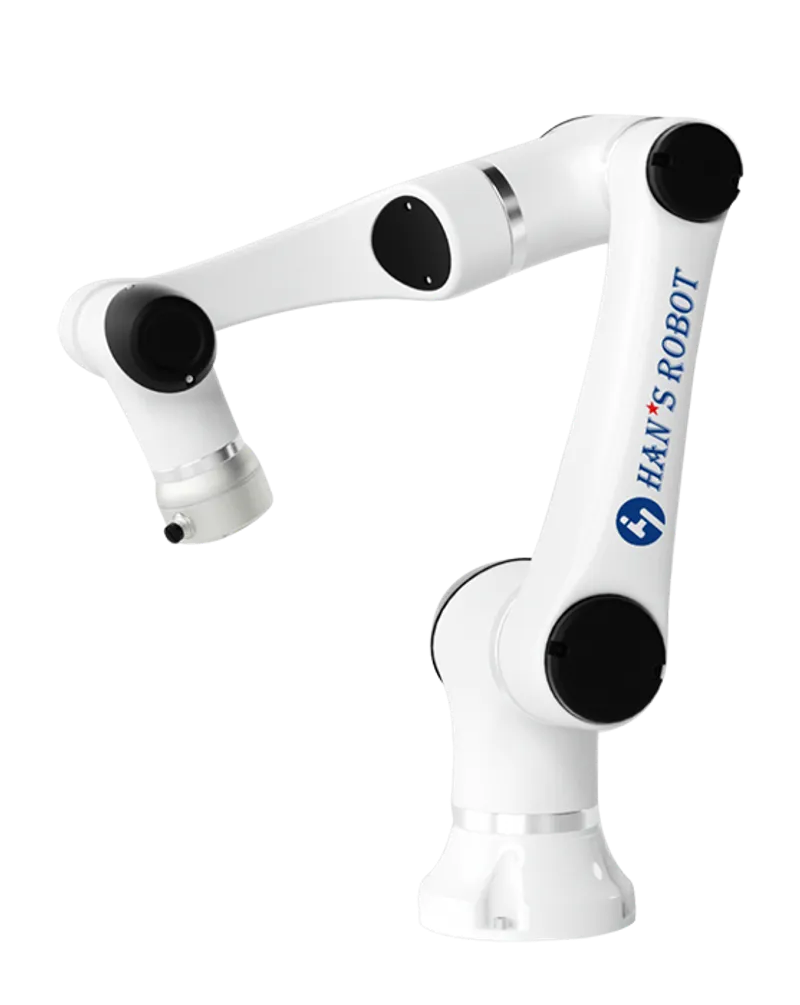

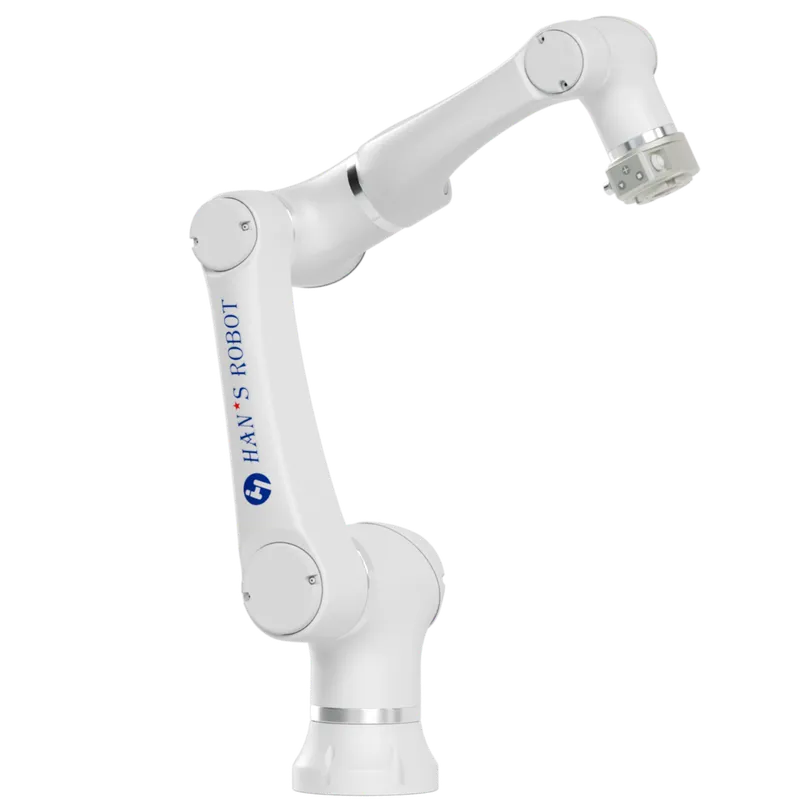

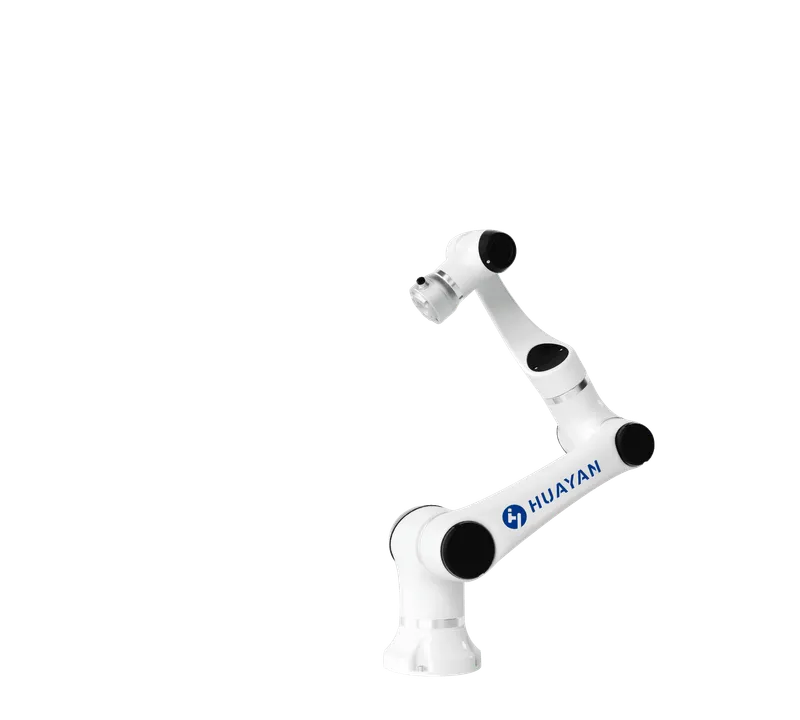

Elfin E15

The Elfin E15 is the highest-payload standard Elfin model, offering 15 kg capacity at a 1300 mm reach for heavy-duty collaborative assembly and handling applications.

Partial · 41%

Payload

15 kg

Reach

1,300 mm

Repeatability

±0.1 mm

💲 Price on application

Full specifications

Performance

How much it lifts, how far it reaches, how precisely it repeats.

Payload Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.: 15 kg

69th pct in class
Reach Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.: 1,300 mm

61th pct in class
Repeatability How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.: 0.1 mm

0th pct in class
Axes (DOF) Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.: 6

Physical

Size, mass and how it mounts.

Robot weight Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.: 60 kg
Mounting Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).: floor, ceiling, wall, any

Safety

Standards met and collaborative-operation capability.

Collaborative Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).: Yes
Safety standards Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).: ISO 10218-1, ISO/TS 15066
Cert. cobot payload Payload at which collaborative (force-limited) operation is still certified.: 15 kg

68th pct in class

Control & software

Programming, languages and ecosystem.

Programming How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.: hand-guiding, graphical
ROS support Robot Operating System driver availability (none / ROS 1 / ROS 2 / both).: ros1
Offline programming Whether programs can be built and validated offline in a digital twin before deployment.: Yes

Connectivity & I/O

Signals, fieldbuses and tooling interfaces.

Fieldbus Industrial networks supported for PLC/cell integration (PROFINET, EtherNet/IP, EtherCAT, Modbus TCP, CC-Link, etc.).: EtherCAT, Modbus, PROFINET
Integrated vision Whether a camera / vision system is built into the robot or controller.: No
