KUKA

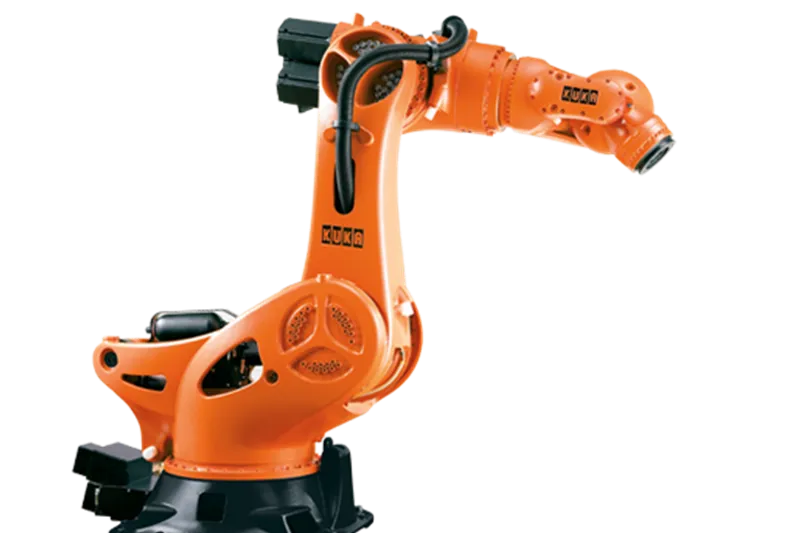

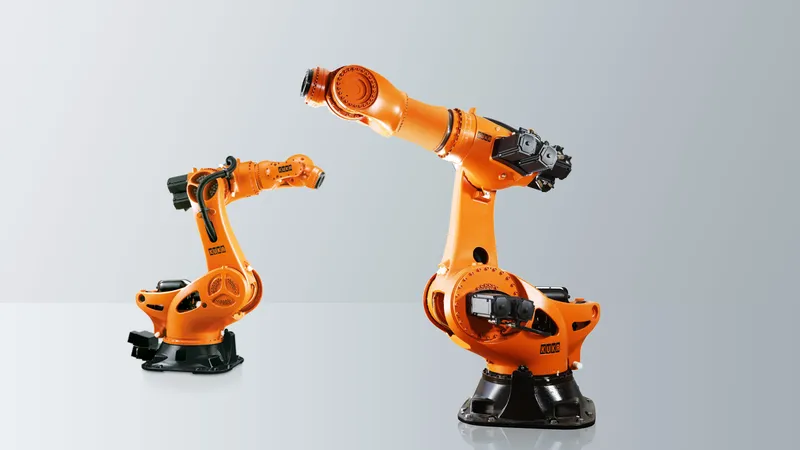

KR 1000 TITAN
The KR 1000 TITAN is one of the world's strongest industrial robots, with a 1000 kg payload and 3202 mm reach. It handles complete car bodies, aircraft sections and very large press parts.
💲 Price on application
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 1,000 kg 98th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 3,202 mm 93th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.1 mm 4th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 6
- Max TCP speed
Top linear speed of the tool centre point. Higher means faster cycle times.
- 1,600 mm/s 8th pct in class
Motion range & speed
Per-axis travel limits and rotational speeds.
- Max axis speed
Highest rotational speed of the fastest joint. Higher helps short, fast moves.
- 67 °/s 0th pct in class
Motion range and maximum speed per joint.
| Axis | Range | Max speed |
|---|---|---|
| J1 | -150° to 150° | 58 °/s |
| J2 | -130° to 17.5° | 50 °/s |
| J3 | -110° to 145° | 50 °/s |
| J4 | -350° to 350° | 60 °/s |
| J5 | -118° to 118° | 60 °/s |
| J6 | -350° to 350° | 72 °/s |
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 4,690 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- floor
- Colour
Standard finish colour.
- #FF6600
Power & controller
Electrical supply and the control cabinet that drives it.
- Power supply
Required input voltage / phase for the controller.
- 3×AC 400 V, 50 Hz
- Controller
The control cabinet / unit that runs the robot.
- KR C5
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (arm)
Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.
- IP65 48th pct in class
- IP rating (wrist)
Ingress protection at the wrist, often higher than the body for wet/washdown duty.
- IP67 14th pct in class
- Operating temp
Ambient temperature range for normal operation.
- 10 to 55 °C
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- No
- Safety standards
Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).
- ISO 10218-1, PLd Cat.3, SIL 2
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- teach-pendant, offline-sim, script
- Languages
Native robot programming language(s) — e.g. KRL (KUKA), RAPID (ABB), URScript (UR), INFORM (Yaskawa).
- KRL
- Teach pendant
The handheld programming/jog device supplied.
- smartPAD
- Simulation
Offline programming / simulation software for the robot.
- KUKA.Sim
- Offline programming
Whether programs can be built and validated offline in a digital twin before deployment.
- Yes
Connectivity & I/O
Signals, fieldbuses and tooling interfaces.
- Fieldbus
Industrial networks supported for PLC/cell integration (PROFINET, EtherNet/IP, EtherCAT, Modbus TCP, CC-Link, etc.).
- PROFINET, EtherNet/IP, EtherCAT
- Tool flange
Mechanical interface at the wrist for mounting tools (ISO 9409-1 pattern).
- ISO 9409-1-250-4-M16
Industrial Robotics Hub — industrialroboticshub.com
Safety certifications
- ISO 10218-1 — the primary industrial-robot safety standard covering design and construction requirements
- PLd Cat.3 — high safety-integrity (PLd) with a dual-channel architecture that tolerates one fault without losing the safety function
- SIL 2 — Safety Integrity Level 2 — a mid-high functional-safety rating (IEC 62061/IEC 61508)
Specifications sourced from KUKA official datasheet ↗. Specs last verified 2026-07-05.
Owner reviews
Real, first-hand feedback from people who run the KUKA KR 1000 TITAN. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the KUKA KR 1000 TITAN? +
The KUKA KR 1000 TITAN has a maximum payload of 1,000 kg.
What is the reach of the KUKA KR 1000 TITAN? +
The KUKA KR 1000 TITAN has a maximum reach of 3,202 mm (3.20 m).
What is the repeatability of the KUKA KR 1000 TITAN? +
The KUKA KR 1000 TITAN has a pose repeatability of ±0.1 mm (ISO 9283), making it suitable for precision work.
How many axes does the KUKA KR 1000 TITAN have? +
The KUKA KR 1000 TITAN is a 6-axis articulated arm robot.
What is the KUKA KR 1000 TITAN used for? +
The KUKA KR 1000 TITAN is typically used for heavy-material-handling, press-automation, body-in-white, die-casting, aerospace-assembly.
What controller does the KUKA KR 1000 TITAN use? +
The KUKA KR 1000 TITAN runs on the KR C5 controller.
What is the IP rating of the KUKA KR 1000 TITAN? +
The KUKA KR 1000 TITAN arm carries an IP65 ingress-protection rating.
How much does the KUKA KR 1000 TITAN cost? +
KUKA KR 1000 TITAN: Price on application. Industrial robots are typically quoted per project through authorized distributors.
