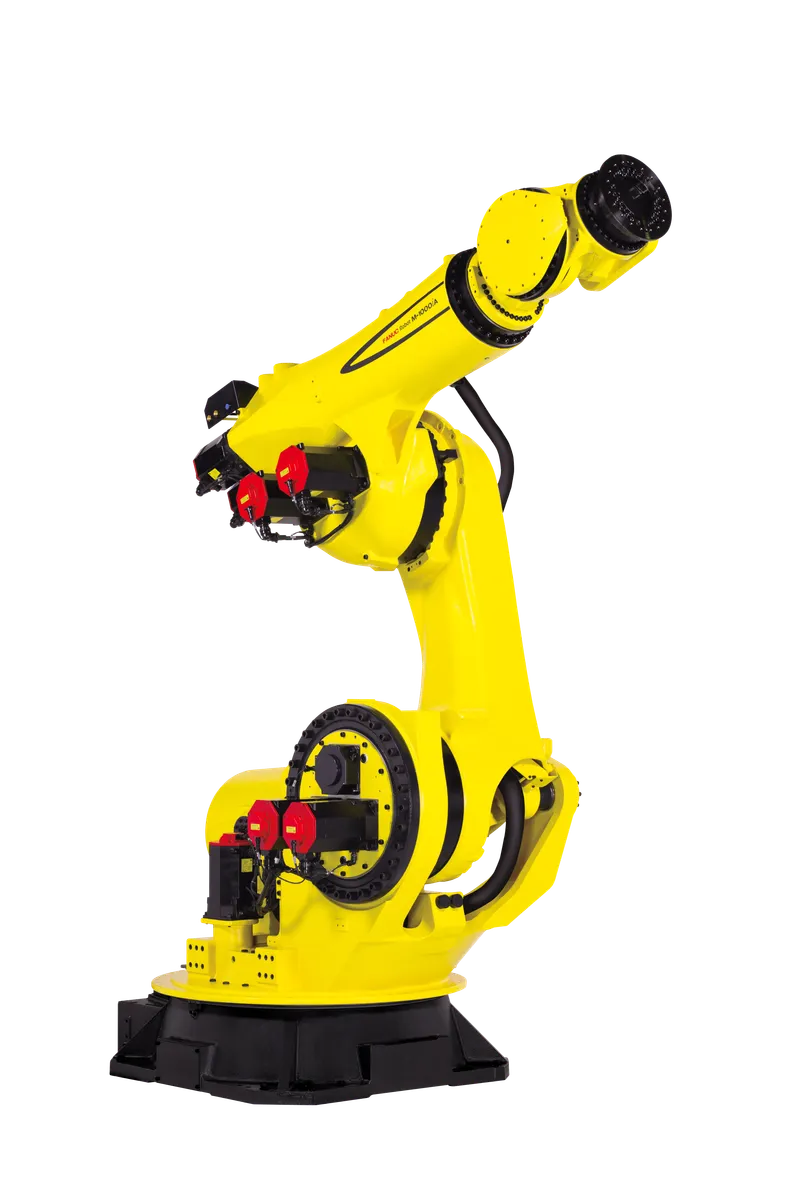

1 photo

Product image © FANUC, shown for identification. Official source ↗.

Documents

Manufacturer M-1000iA Datasheet

Articulated arm 🇯🇵 Japan ✓ Verified specs

FANUC

M-1000iA

FANUC’s largest serial-link robot - 1,000 kg wrist payload at 3,253 mm reach on a 5,300 kg body. Unlike the parallel-link mechanism usual at this payload, the serial link lets the arm stand upright and rotate backwards, widening the vertical and longitudinal working range.

Payload

1,000 kg

@ full reach: usually lower

Reach

3,253 mm

Repeatability

±0.1 mm

💲 Price on application

Full specifications

Performance

How much it lifts, how far it reaches, how precisely it repeats.

Payload Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.: 1,000 kg

98th pct in class
Reach Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.: 3,253 mm

94th pct in class
Repeatability How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.: 0.1 mm

4th pct in class
Axes (DOF) Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.: 6
Wrist torque Allowable torque at the wrist axis — how much twisting force a tool can apply. Higher handles bigger/offset tools.: 8,800 N·m

98th pct in class
Wrist inertia Allowable moment of inertia at the wrist — how much rotating mass it can swing without overload. Higher is more capable.: 1,750 kg·m²

98th pct in class

Motion range & speed

Per-axis travel limits and rotational speeds.

Motion range and maximum speed per joint.

Axis	Range	Max speed
J1	—	60 °/s
J2	—	50 °/s
J3	—	50 °/s
J4	—	70 °/s
J5	—	70 °/s
J6	—	85 °/s

Physical

Size, mass and how it mounts.

Robot weight Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.: 5,300 kg
Mounting Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).: floor

Power & controller

Electrical supply and the control cabinet that drives it.

Power draw Typical operating power consumption. Lower is more efficient.: 8,000 W

3th pct in class
Controller The control cabinet / unit that runs the robot.: R-30iB Plus

Safety

Standards met and collaborative-operation capability.

Collaborative Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).: No

Control & software

Programming, languages and ecosystem.

Programming How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.: teach-pendant, offline-sim
Languages Native robot programming language(s) — e.g. KRL (KUKA), RAPID (ABB), URScript (UR), INFORM (Yaskawa).: KAREL, TP
Teach pendant The handheld programming/jog device supplied.: iPendant Touch
Offline programming Whether programs can be built and validated offline in a digital twin before deployment.: Yes

Specifications sourced from FANUC official datasheet ↗. Specs last verified 2026-08-06.
