KUKA

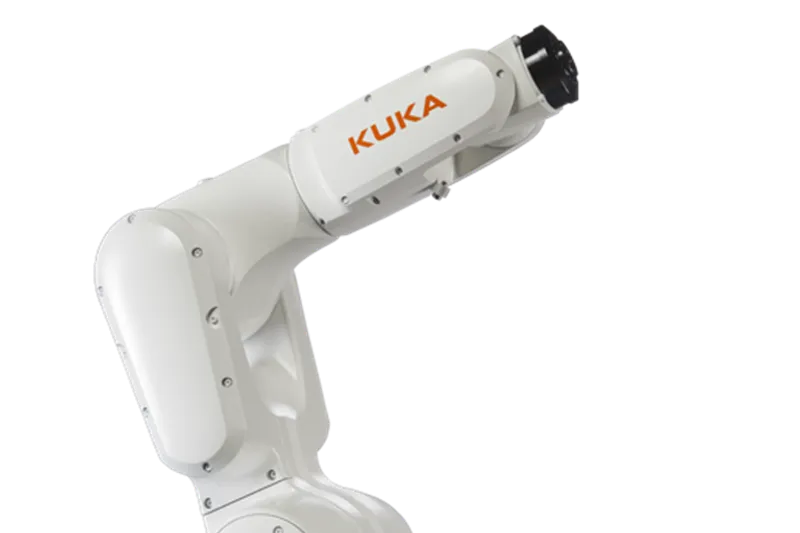

KR 20 R1810
The KR 20 R1810 is the largest member of the AGILUS family, extending the high-speed small-robot concept to a 20 kg payload and 1813 mm reach for larger-cell handling and assembly tasks.
💲 Price on application
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 20 kg 44th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 1,813 mm 51th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.04 mm 43th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 6
- Max TCP speed
Top linear speed of the tool centre point. Higher means faster cycle times.
- 2,000 mm/s 16th pct in class
Motion range & speed
Per-axis travel limits and rotational speeds.
- Max axis speed
Highest rotational speed of the fastest joint. Higher helps short, fast moves.
- 360 °/s 31th pct in class
Motion range and maximum speed per joint.
| Axis | Range | Max speed |
|---|---|---|
| J1 | -185° to 185° | 360 °/s |
| J2 | -185° to 65° | 300 °/s |
| J3 | -138° to 175° | 300 °/s |
| J4 | -350° to 350° | 450 °/s |
| J5 | -130° to 130° | 360 °/s |
| J6 | -350° to 350° | 450 °/s |
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 270 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- floor, ceiling, tilted
- Colour
Standard finish colour.
- #FF6600
Power & controller
Electrical supply and the control cabinet that drives it.
- Power supply
Required input voltage / phase for the controller.
- 3×AC 400 V, 50 Hz
- Controller
The control cabinet / unit that runs the robot.
- KR C5
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (arm)
Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.
- IP54 19th pct in class
- IP rating (wrist)
Ingress protection at the wrist, often higher than the body for wet/washdown duty.
- IP54 1th pct in class
- Operating temp
Ambient temperature range for normal operation.
- 10 to 55 °C
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- No
- Safety standards
Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).
- ISO 10218-1, PLd Cat.3, SIL 2
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- teach-pendant, offline-sim, script
- Languages
Native robot programming language(s) — e.g. KRL (KUKA), RAPID (ABB), URScript (UR), INFORM (Yaskawa).
- KRL
- Teach pendant
The handheld programming/jog device supplied.
- smartPAD
- Simulation
Offline programming / simulation software for the robot.
- KUKA.Sim
- Offline programming
Whether programs can be built and validated offline in a digital twin before deployment.
- Yes
Connectivity & I/O
Signals, fieldbuses and tooling interfaces.
- Fieldbus
Industrial networks supported for PLC/cell integration (PROFINET, EtherNet/IP, EtherCAT, Modbus TCP, CC-Link, etc.).
- PROFINET, EtherNet/IP, EtherCAT
- Tool flange
Mechanical interface at the wrist for mounting tools (ISO 9409-1 pattern).
- ISO 9409-1-50-4-M6
Industrial Robotics Hub — industrialroboticshub.com
Safety certifications
- ISO 10218-1 — the primary industrial-robot safety standard covering design and construction requirements
- PLd Cat.3 — high safety-integrity (PLd) with a dual-channel architecture that tolerates one fault without losing the safety function
- SIL 2 — Safety Integrity Level 2 — a mid-high functional-safety rating (IEC 62061/IEC 61508)
Specifications sourced from KUKA official datasheet ↗. Specs last verified 2026-07-05.
Owner reviews
Real, first-hand feedback from people who run the KUKA KR 20 R1810. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the KUKA KR 20 R1810? +
The KUKA KR 20 R1810 has a maximum payload of 20 kg.
What is the reach of the KUKA KR 20 R1810? +
The KUKA KR 20 R1810 has a maximum reach of 1,813 mm (1.81 m).
What is the repeatability of the KUKA KR 20 R1810? +
The KUKA KR 20 R1810 has a pose repeatability of ±0.04 mm (ISO 9283), making it highly accurate for precision work.
How many axes does the KUKA KR 20 R1810 have? +
The KUKA KR 20 R1810 is a 6-axis articulated arm robot.
What is the KUKA KR 20 R1810 used for? +
The KUKA KR 20 R1810 is typically used for pick-and-place, assembly, machine-tending, packaging, material-handling.
What controller does the KUKA KR 20 R1810 use? +
The KUKA KR 20 R1810 runs on the KR C5 controller.
What is the IP rating of the KUKA KR 20 R1810? +
The KUKA KR 20 R1810 arm carries an IP54 ingress-protection rating.
How much does the KUKA KR 20 R1810 cost? +
KUKA KR 20 R1810: Price on application. Industrial robots are typically quoted per project through authorized distributors.
