ROKAE

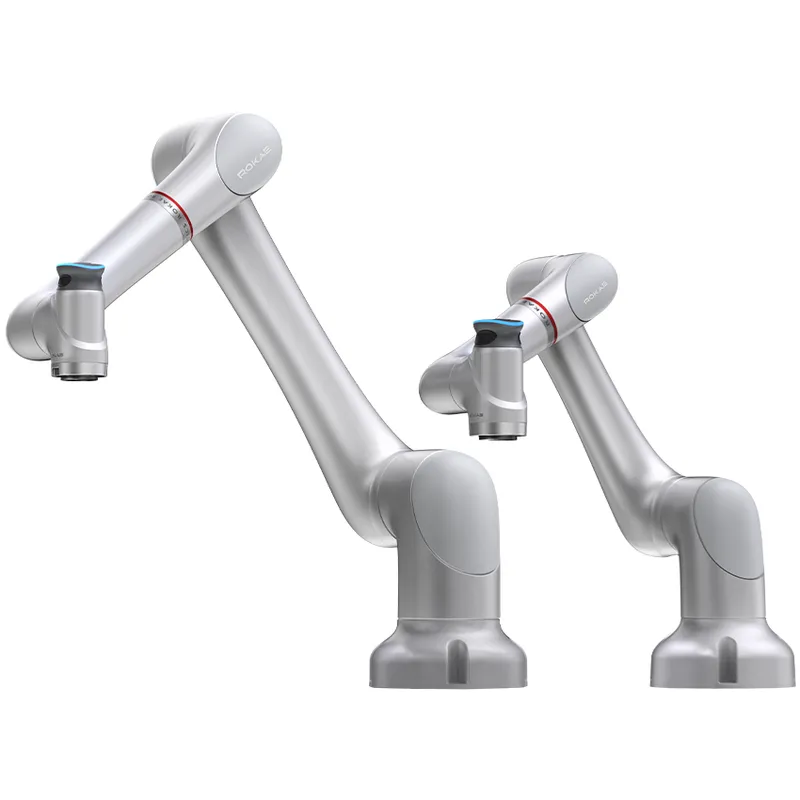

xMate CR18
The xMate CR18 is an 18 kg payload collaborative robot with a compact 1062 mm reach and IP67 protection for heavy-duty cobot applications.
Payload
18 kg
Reach
1,062 mm
Repeatability
±0.03 mm
💲 Price on application
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 18 kg 78th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 1,062 mm 51th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.03 mm 53th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 6
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 38 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- floor, ceiling, wall
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (arm)
Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.
- IP67 76th pct in class
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- Yes
- Safety standards
Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).
- ISO 10218-1, ISO/TS 15066, PLd Cat.3
- Cert. cobot payload
Payload at which collaborative (force-limited) operation is still certified.
- 18 kg 77th pct in class
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- hand-guiding, graphical
- ROS support
Robot Operating System driver availability (none / ROS 1 / ROS 2 / both).
- none
- Offline programming
Whether programs can be built and validated offline in a digital twin before deployment.
- Yes
Specifications sourced from ROKAE official datasheet ↗. Specs last verified 2026-06-26.
Frequently asked questions
What is the payload of the ROKAE xMate CR18? +
The ROKAE xMate CR18 has a maximum payload of 18 kg.
What is the reach of the ROKAE xMate CR18? +
The ROKAE xMate CR18 has a maximum reach of 1,062 mm (1.06 m).
What is the repeatability of the ROKAE xMate CR18? +
The ROKAE xMate CR18 has a pose repeatability of ±0.03 mm (ISO 9283), making it highly accurate for precision work.
How many axes does the ROKAE xMate CR18 have? +
The ROKAE xMate CR18 is a 6-axis collaborative robot.
What is the ROKAE xMate CR18 used for? +
The ROKAE xMate CR18 is typically used for machine-tending, material-handling, assembly, welding.
Is the ROKAE xMate CR18 a collaborative robot? +
Yes — the ROKAE xMate CR18 is a collaborative robot (cobot) designed to work safely alongside people under ISO/TS 15066.
What is the IP rating of the ROKAE xMate CR18? +
The ROKAE xMate CR18 arm carries an IP67 ingress-protection rating.
How much does the ROKAE xMate CR18 cost? +
ROKAE xMate CR18: Price on application. Industrial robots are typically quoted per project through authorized distributors.
