Siasun
SR12A

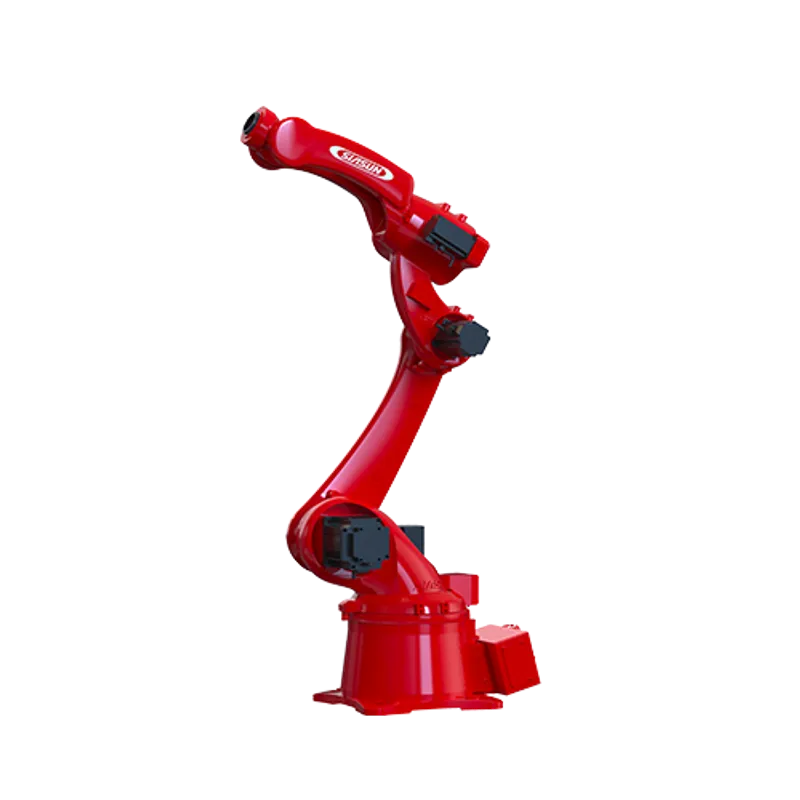

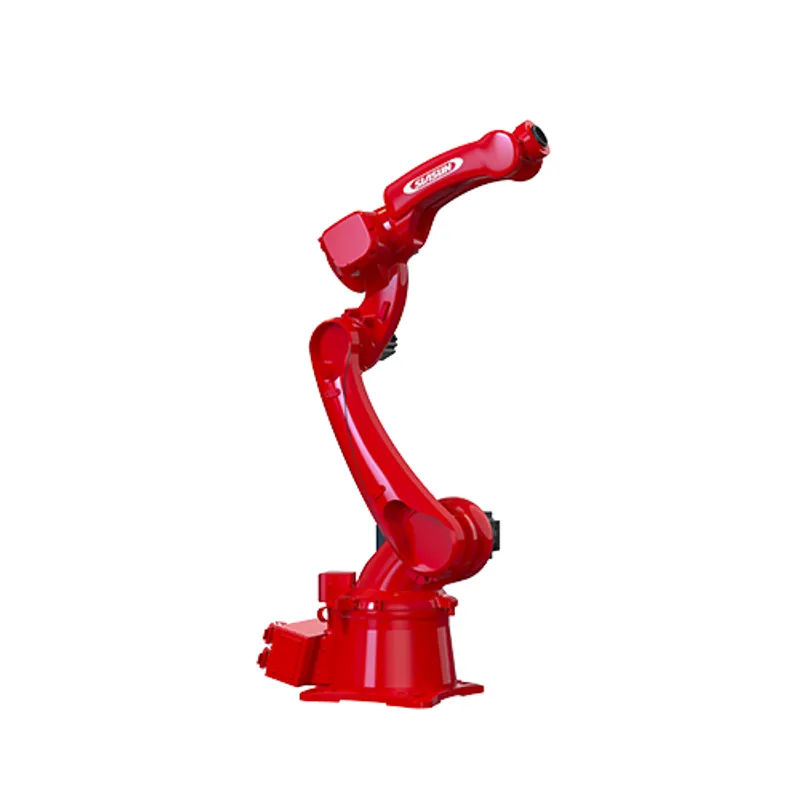

Siasun 12 kg payload, 1465 mm reach 6-axis industrial arm optimized for arc welding with integrated wire feeder support.
💲 Price on application
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 12 kg 35th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 1,465 mm 39th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.03 mm 51th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 6
- Wrist torque
Allowable torque at the wrist axis — how much twisting force a tool can apply. Higher handles bigger/offset tools.
- 23 N·m 28th pct in class
- Wrist inertia
Allowable moment of inertia at the wrist — how much rotating mass it can swing without overload. Higher is more capable.
- 0.4 kg·m² 11th pct in class
Motion range & speed
Per-axis travel limits and rotational speeds.
- Max axis speed
Highest rotational speed of the fastest joint. Higher helps short, fast moves.
- 720 °/s 69th pct in class
Motion range and maximum speed per joint.
| Axis | Range | Max speed |
|---|---|---|
| J1 | -180° to 180° | 200 °/s |
| J2 | -170° to 90° | 200 °/s |
| J3 | -90° to 150° | 220 °/s |
| J4 | -180° to 180° | 400 °/s |
| J5 | -160° to 145° | 430 °/s |
| J6 | -360° to 360° | 720 °/s |
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 130 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- floor, ceiling, wall
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (wrist)
Ingress protection at the wrist, often higher than the body for wet/washdown duty.
- IP65 6th pct in class
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- No
- Safety standards
Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).
- ISO 10218-1
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- teach-pendant, offline-sim
- ROS support
Robot Operating System driver availability (none / ROS 1 / ROS 2 / both).
- none
Industrial Robotics Hub — industrialroboticshub.com
Safety certifications
- ISO 10218-1 — the primary industrial-robot safety standard covering design and construction requirements
Specifications sourced from Siasun official datasheet ↗. Specs last verified 2026-06-26.
Owner reviews
Real, first-hand feedback from people who run the Siasun SR12A. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the Siasun SR12A? +
The Siasun SR12A has a maximum payload of 12 kg.
What is the reach of the Siasun SR12A? +
The Siasun SR12A has a maximum reach of 1,465 mm (1.47 m).
What is the repeatability of the Siasun SR12A? +
The Siasun SR12A has a pose repeatability of ±0.03 mm (ISO 9283), making it highly accurate for precision work.
How many axes does the Siasun SR12A have? +
The Siasun SR12A is a 6-axis articulated arm robot.
What is the Siasun SR12A used for? +
The Siasun SR12A is typically used for welding, material-handling.
How much does the Siasun SR12A cost? +
Siasun SR12A: Price on application. Industrial robots are typically quoted per project through authorized distributors.
