ABB Robotics

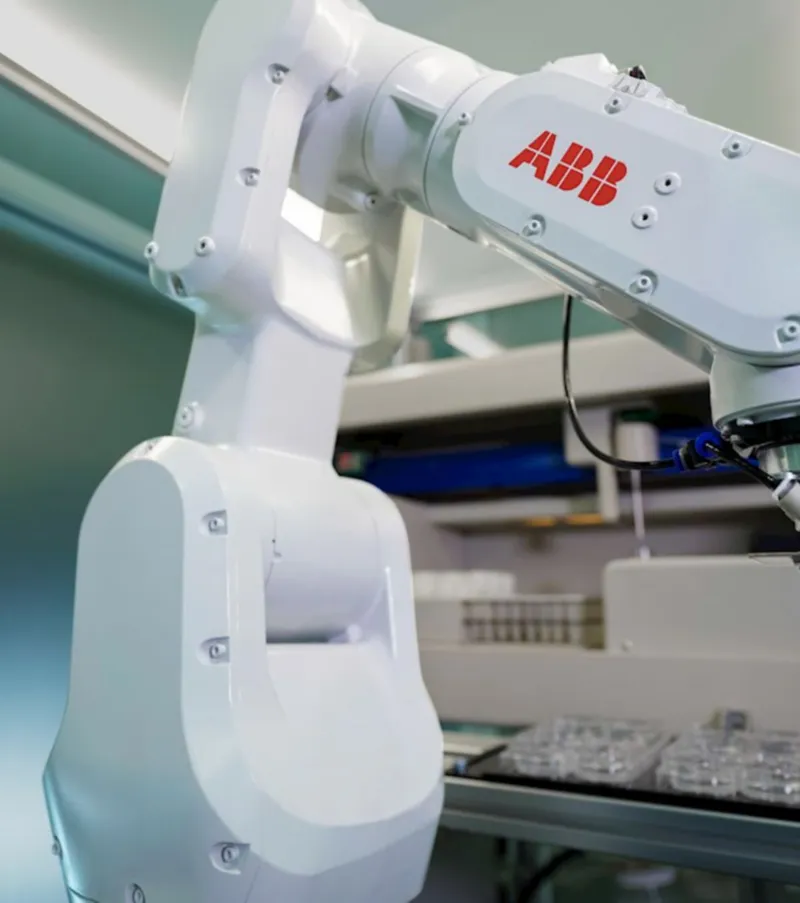

IRB 1100
ABB's compact, fast 4 kg arm — among the smallest and most accurate in its class, built for electronics assembly and pick-and-place.
💲 Price on application
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 4 kg 5th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 580 mm 6th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.01 mm 97th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 6
- Wrist torque
Allowable torque at the wrist axis — how much twisting force a tool can apply. Higher handles bigger/offset tools.
- 5 N·m 2th pct in class
- Wrist inertia
Allowable moment of inertia at the wrist — how much rotating mass it can swing without overload. Higher is more capable.
- 0.18 kg·m² 2th pct in class
Motion range & speed
Per-axis travel limits and rotational speeds.
Motion range and maximum speed per joint.
| Axis | Range | Max speed |
|---|---|---|
| J1 | -230° to 230° | 460 °/s |
| J2 | -115° to 113° | 380 °/s |
| J3 | -205° to 55° | 280 °/s |
| J4 | -230° to 230° | 560 °/s |
| J5 | -125° to 120° | 420 °/s |
| J6 | -400° to 400° | 750 °/s |
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 21 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- floor, ceiling, wall, tilted
Power & controller
Electrical supply and the control cabinet that drives it.
- Controller
The control cabinet / unit that runs the robot.
- OmniCore C30
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (arm)
Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.
- IP40 5th pct in class
- Operating temp
Ambient temperature range for normal operation.
- 5 to 45 °C
- Humidity
Permissible relative-humidity range (non-condensing).
- ≤ 95 %RH
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- No
- Safety standards
Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).
- ISO 10218-1
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- teach-pendant, offline-sim
- Languages
Native robot programming language(s) — e.g. KRL (KUKA), RAPID (ABB), URScript (UR), INFORM (Yaskawa).
- RAPID
- ROS support
Robot Operating System driver availability (none / ROS 1 / ROS 2 / both).
- ros1
- Teach pendant
The handheld programming/jog device supplied.
- FlexPendant
- Offline programming
Whether programs can be built and validated offline in a digital twin before deployment.
- Yes
Connectivity & I/O
Signals, fieldbuses and tooling interfaces.
- Fieldbus
Industrial networks supported for PLC/cell integration (PROFINET, EtherNet/IP, EtherCAT, Modbus TCP, CC-Link, etc.).
- PROFINET, EtherNet/IP, EtherCAT
- Tool flange
Mechanical interface at the wrist for mounting tools (ISO 9409-1 pattern).
- ISO 9409-1-31.5-4-M5
Safety certifications
- ISO 10218-1 — the primary industrial-robot safety standard covering design and construction requirements
Specifications sourced from ABB Robotics official datasheet ↗. Specs last verified 2026-07-01.
Owner reviews
Real, first-hand feedback from people who run the ABB Robotics IRB 1100. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the ABB Robotics IRB 1100? +
The ABB Robotics IRB 1100 has a maximum payload of 4 kg.
What is the reach of the ABB Robotics IRB 1100? +
The ABB Robotics IRB 1100 has a maximum reach of 580 mm (0.58 m).
What is the repeatability of the ABB Robotics IRB 1100? +
The ABB Robotics IRB 1100 has a pose repeatability of ±0.01 mm (ISO 9283), making it highly accurate for precision work.
How many axes does the ABB Robotics IRB 1100 have? +
The ABB Robotics IRB 1100 is a 6-axis articulated arm robot.
What is the ABB Robotics IRB 1100 used for? +
The ABB Robotics IRB 1100 is typically used for assembly, pick-and-place, machine-tending.
What controller does the ABB Robotics IRB 1100 use? +
The ABB Robotics IRB 1100 runs on the OmniCore C30 controller.
What is the IP rating of the ABB Robotics IRB 1100? +
The ABB Robotics IRB 1100 arm carries an IP40 ingress-protection rating.
How much does the ABB Robotics IRB 1100 cost? +
ABB Robotics IRB 1100: Price on application. Industrial robots are typically quoted per project through authorized distributors.
