ABB Robotics

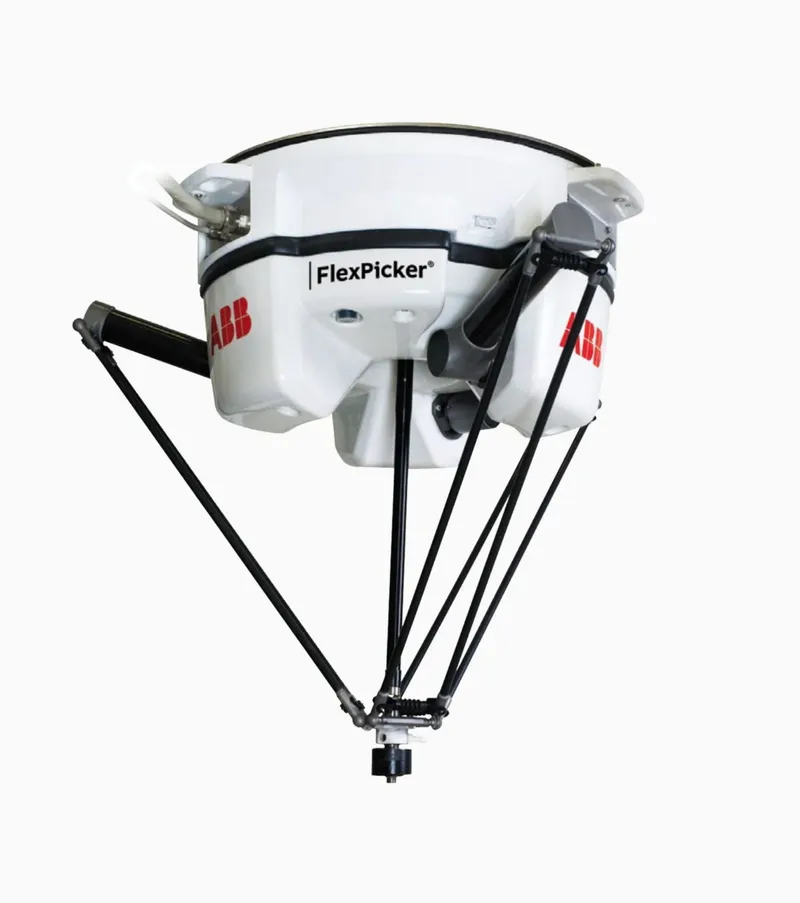

IRB 360 FlexPicker 8/1130
The iconic FlexPicker delta robot — extreme-speed pick-and-place for packaging lines, here in the 8 kg / 1130 mm diameter configuration with integrated vision and conveyor tracking.
💲 Price on application
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 8 kg 80th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 1,130 mm 40th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.1 mm 0th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 4
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 120 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- ceiling
Power & controller
Electrical supply and the control cabinet that drives it.
- Power supply
Required input voltage / phase for the controller.
- 200-600V
- Power draw
Typical operating power consumption. Lower is more efficient.
- 477 W 60th pct in class
- Power rating
Rated supply capacity the installation must provide.
- 7.2 kVA
- Controller
The control cabinet / unit that runs the robot.
- OmniCore
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (arm)
Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.
- IP69K 78th pct in class
- Operating temp
Ambient temperature range for normal operation.
- 0 to 45 °C
- Humidity
Permissible relative-humidity range (non-condensing).
- 0 to 95 %RH
- Noise level
Operating sound pressure level. Lower is quieter.
- 70 dB(A) 0th pct in class
- Cleanroom class
ISO 14644-1 cleanroom rating the robot is certified for. Lower number = cleaner environment.
- 5 ISO 20th pct in class
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- No
- Safety standards
Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).
- ISO 10218-1
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- teach-pendant, offline-sim
- Languages
Native robot programming language(s) — e.g. KRL (KUKA), RAPID (ABB), URScript (UR), INFORM (Yaskawa).
- RAPID
- Teach pendant
The handheld programming/jog device supplied.
- FlexPendant
- Offline programming
Whether programs can be built and validated offline in a digital twin before deployment.
- Yes
Connectivity & I/O
Signals, fieldbuses and tooling interfaces.
- Fieldbus
Industrial networks supported for PLC/cell integration (PROFINET, EtherNet/IP, EtherCAT, Modbus TCP, CC-Link, etc.).
- PROFINET, EtherNet/IP
Safety certifications
- ISO 10218-1 — the primary industrial-robot safety standard covering design and construction requirements
Specifications sourced from ABB Robotics official datasheet ↗. Specs last verified 2026-07-01.
Owner reviews
Real, first-hand feedback from people who run the ABB Robotics IRB 360 FlexPicker 8/1130. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the ABB Robotics IRB 360 FlexPicker 8/1130? +
The ABB Robotics IRB 360 FlexPicker 8/1130 has a maximum payload of 8 kg.
What is the reach of the ABB Robotics IRB 360 FlexPicker 8/1130? +
The ABB Robotics IRB 360 FlexPicker 8/1130 has a maximum reach of 1,130 mm (1.13 m).
What is the repeatability of the ABB Robotics IRB 360 FlexPicker 8/1130? +
The ABB Robotics IRB 360 FlexPicker 8/1130 has a pose repeatability of ±0.1 mm (ISO 9283), making it suitable for precision work.
How many axes does the ABB Robotics IRB 360 FlexPicker 8/1130 have? +
The ABB Robotics IRB 360 FlexPicker 8/1130 is a 4-axis delta / parallel robot.
What is the ABB Robotics IRB 360 FlexPicker 8/1130 used for? +
The ABB Robotics IRB 360 FlexPicker 8/1130 is typically used for pick-and-place, packaging, material-handling.
What controller does the ABB Robotics IRB 360 FlexPicker 8/1130 use? +
The ABB Robotics IRB 360 FlexPicker 8/1130 runs on the OmniCore controller.
What is the IP rating of the ABB Robotics IRB 360 FlexPicker 8/1130? +
The ABB Robotics IRB 360 FlexPicker 8/1130 arm carries an IP69K ingress-protection rating.
How much does the ABB Robotics IRB 360 FlexPicker 8/1130 cost? +
ABB Robotics IRB 360 FlexPicker 8/1130: Price on application. Industrial robots are typically quoted per project through authorized distributors.
