Dobot

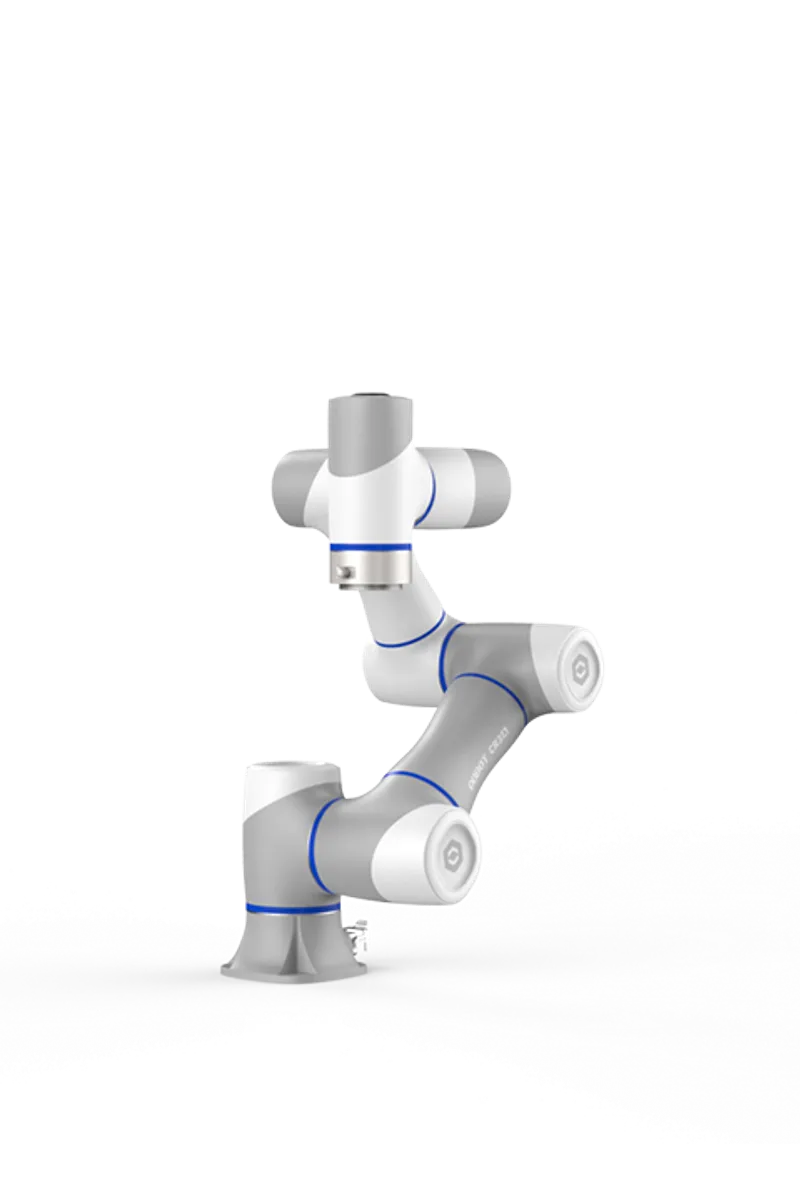

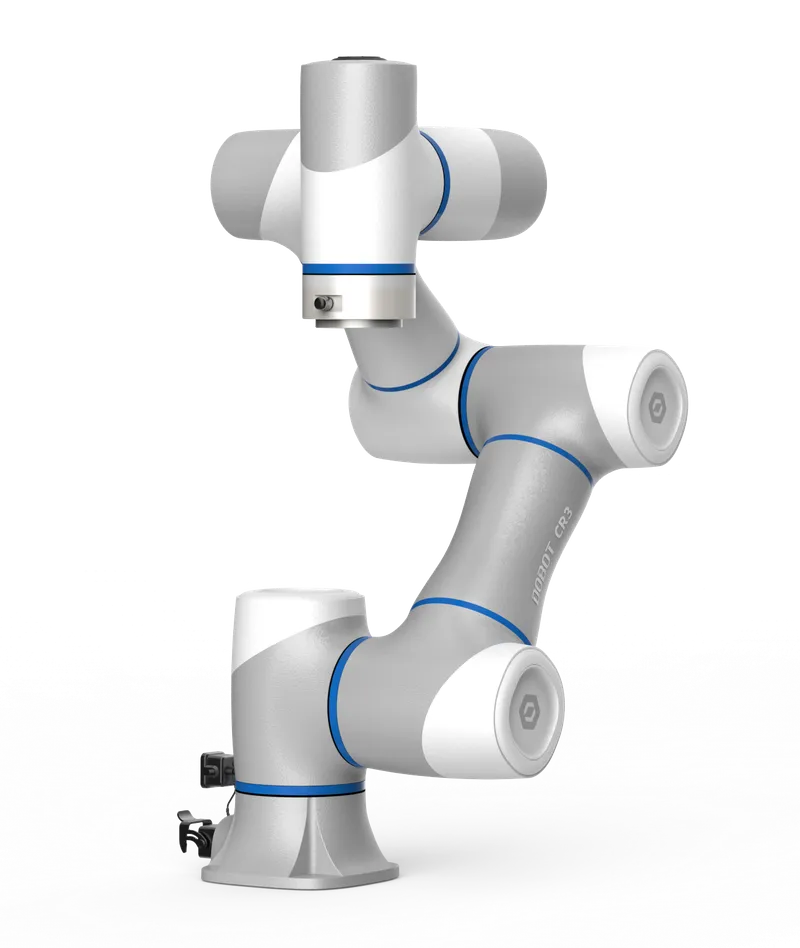

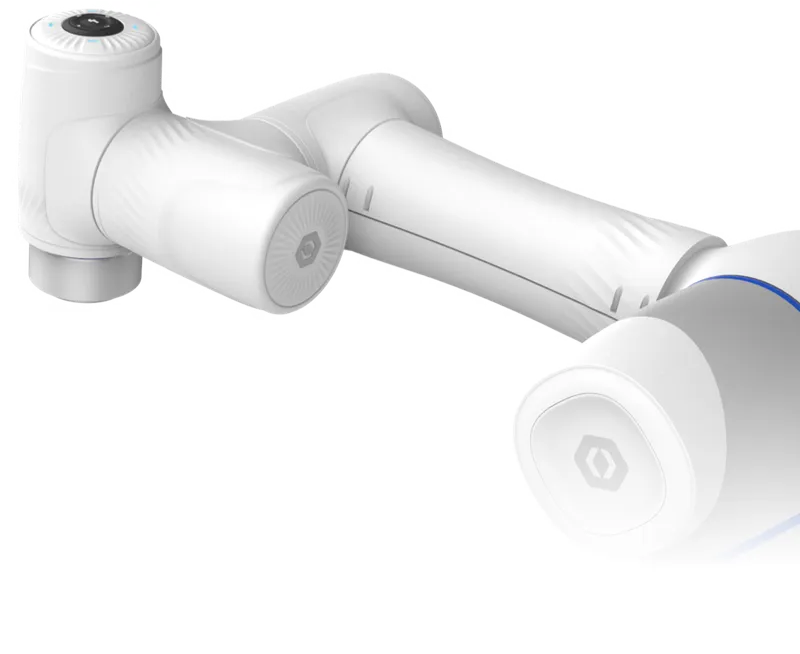

CR3A
The smallest of Dobot's second-generation CRA collaborative series, offering 3 kg payload at 620 mm working radius with any-angle mounting and ISO 13849-1 PLd Cat.3 safety.
💲 Price on application
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 3 kg 4th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 620 mm 8th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.02 mm 74th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 6
- Max TCP speed
Top linear speed of the tool centre point. Higher means faster cycle times.
- 3,000 mm/s 73th pct in class
Motion range & speed
Per-axis travel limits and rotational speeds.
Motion range and maximum speed per joint.
| Axis | Range | Max speed |
|---|---|---|
| J1 | -360° to 360° | — |
| J2 | -360° to 360° | — |
| J3 | -155° to 155° | — |
| J4 | -360° to 360° | — |
| J5 | -360° to 360° | — |
| J6 | -360° to 360° | — |
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 17 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- floor, ceiling, wall, any
Power & controller
Electrical supply and the control cabinet that drives it.
- Power draw
Typical operating power consumption. Lower is more efficient.
- 120 W 97th pct in class
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (arm)
Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.
- IP54 5th pct in class
- Operating temp
Ambient temperature range for normal operation.
- 0 to 50 °C
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- Yes
- Safety standards
Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).
- ISO 13849-1:2015 PLd Cat.3, ISO 10218-1:2011, ISO/TS 15066, CE, UL
- Cert. cobot payload
Payload at which collaborative (force-limited) operation is still certified.
- 3 kg 3th pct in class
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- hand-guiding, graphical, teach-pendant
- Languages
Native robot programming language(s) — e.g. KRL (KUKA), RAPID (ABB), URScript (UR), INFORM (Yaskawa).
- Blockly, LUA
- ROS support
Robot Operating System driver availability (none / ROS 1 / ROS 2 / both).
- ros1
- Teach pendant
The handheld programming/jog device supplied.
- 10.1-inch HD capacitive, 1920x1280
- Offline programming
Whether programs can be built and validated offline in a digital twin before deployment.
- Yes
Connectivity & I/O
Signals, fieldbuses and tooling interfaces.
- Fieldbus
Industrial networks supported for PLC/cell integration (PROFINET, EtherNet/IP, EtherCAT, Modbus TCP, CC-Link, etc.).
- Modbus TCP, Modbus RTU, EtherNet/IP, PROFINET
- Integrated vision
Whether a camera / vision system is built into the robot or controller.
- No
Industrial Robotics Hub — industrialroboticshub.com
Safety certifications
- ISO 13849-1:2015 PLd Cat.3 — high safety-integrity (PLd) under the 2015 edition of the machine safety-control standard
- ISO 10218-1:2011 — the primary industrial-robot safety standard covering design and construction requirements
- ISO/TS 15066 — the safety standard for collaborative robots working near people (force and speed limits)
- CE — CE marking — confirms conformity with EU product-safety directives for the European market
- UL — UL certification — North American safety listing confirming compliance with product-safety standards
Specifications sourced from Dobot official datasheet ↗. Specs last verified 2026-06-26.
Owner reviews
Real, first-hand feedback from people who run the Dobot CR3A. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the Dobot CR3A? +
The Dobot CR3A has a maximum payload of 3 kg.
What is the reach of the Dobot CR3A? +
The Dobot CR3A has a maximum reach of 620 mm (0.62 m).
What is the repeatability of the Dobot CR3A? +
The Dobot CR3A has a pose repeatability of ±0.02 mm (ISO 9283), making it highly accurate for precision work.
How many axes does the Dobot CR3A have? +
The Dobot CR3A is a 6-axis collaborative robot.
What is the Dobot CR3A used for? +
The Dobot CR3A is typically used for assembly, pick-and-place, machine-tending, gluing.
Is the Dobot CR3A a collaborative robot? +
Yes — the Dobot CR3A is a collaborative robot (cobot) designed to work safely alongside people under ISO/TS 15066.
What is the IP rating of the Dobot CR3A? +
The Dobot CR3A arm carries an IP54 ingress-protection rating.
How much does the Dobot CR3A cost? +
Dobot CR3A: Price on application. Industrial robots are typically quoted per project through authorized distributors.
