Siasun
GCR3

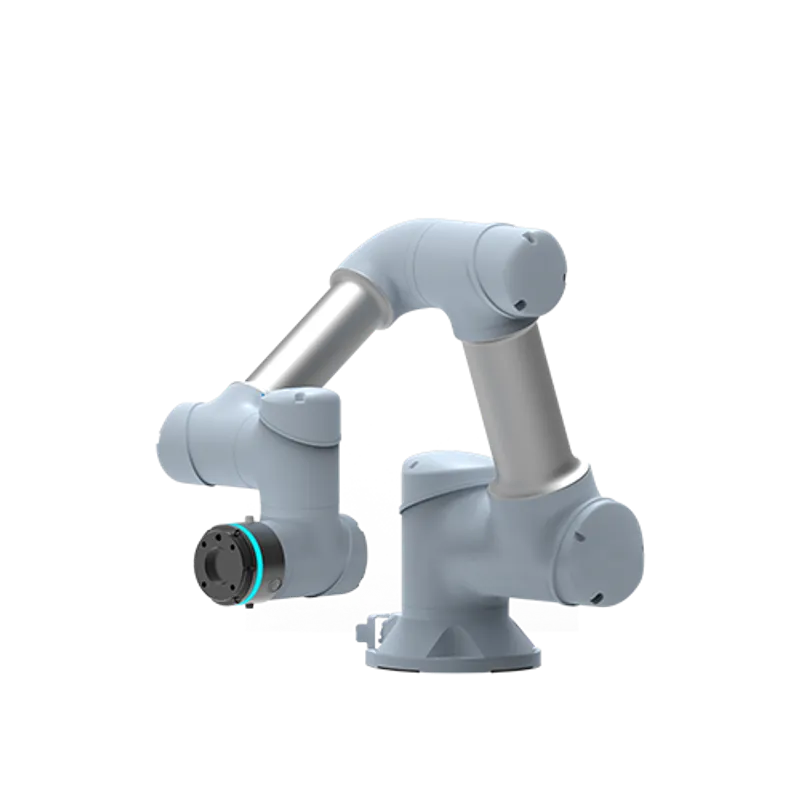

Siasun 3 kg payload, 618 mm reach 6-axis collaborative robot with TUV SUD safety certification for light assembly and human-robot cooperation.
💲 Price on application
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 3 kg 4th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 618 mm 7th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.02 mm 74th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 6
Motion range & speed
Per-axis travel limits and rotational speeds.
- Max axis speed
Highest rotational speed of the fastest joint. Higher helps short, fast moves.
- 225 °/s 51th pct in class
Motion range and maximum speed per joint.
| Axis | Range | Max speed |
|---|---|---|
| J1 | -360° to 360° | 225 °/s |
| J2 | -360° to 360° | 225 °/s |
| J3 | -360° to 360° | 225 °/s |
| J4 | -360° to 360° | 225 °/s |
| J5 | -360° to 360° | 225 °/s |
| J6 | -360° to 360° | 225 °/s |
Physical
Size, mass and how it mounts.
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- floor, ceiling, wall, tilted
Power & controller
Electrical supply and the control cabinet that drives it.
- Power draw
Typical operating power consumption. Lower is more efficient.
- 200 W 82th pct in class
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (arm)
Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.
- IP54 5th pct in class
- IP rating (wrist)
Ingress protection at the wrist, often higher than the body for wet/washdown duty.
- IP65 17th pct in class
- Operating temp
Ambient temperature range for normal operation.
- -10 to 50 °C
- Cleanroom class
ISO 14644-1 cleanroom rating the robot is certified for. Lower number = cleaner environment.
- 5 ISO 0th pct in class
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- Yes
- Safety standards
Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).
- IEC 61508
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- teach-pendant, offline-sim
- ROS support
Robot Operating System driver availability (none / ROS 1 / ROS 2 / both).
- none
Industrial Robotics Hub — industrialroboticshub.com
Safety certifications
- IEC 61508
Specifications sourced from Siasun official datasheet ↗. Specs last verified 2026-06-26.
Owner reviews
Real, first-hand feedback from people who run the Siasun GCR3. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the Siasun GCR3? +
The Siasun GCR3 has a maximum payload of 3 kg.
What is the reach of the Siasun GCR3? +
The Siasun GCR3 has a maximum reach of 618 mm (0.62 m).
What is the repeatability of the Siasun GCR3? +
The Siasun GCR3 has a pose repeatability of ±0.02 mm (ISO 9283), making it highly accurate for precision work.
How many axes does the Siasun GCR3 have? +
The Siasun GCR3 is a 6-axis collaborative robot.
What is the Siasun GCR3 used for? +
The Siasun GCR3 is typically used for assembly, pick-and-place.
Is the Siasun GCR3 a collaborative robot? +
Yes — the Siasun GCR3 is a collaborative robot (cobot) designed to work safely alongside people under ISO/TS 15066.
What is the IP rating of the Siasun GCR3? +
The Siasun GCR3 arm carries an IP54 ingress-protection rating.
How much does the Siasun GCR3 cost? +
Siasun GCR3: Price on application. Industrial robots are typically quoted per project through authorized distributors.
