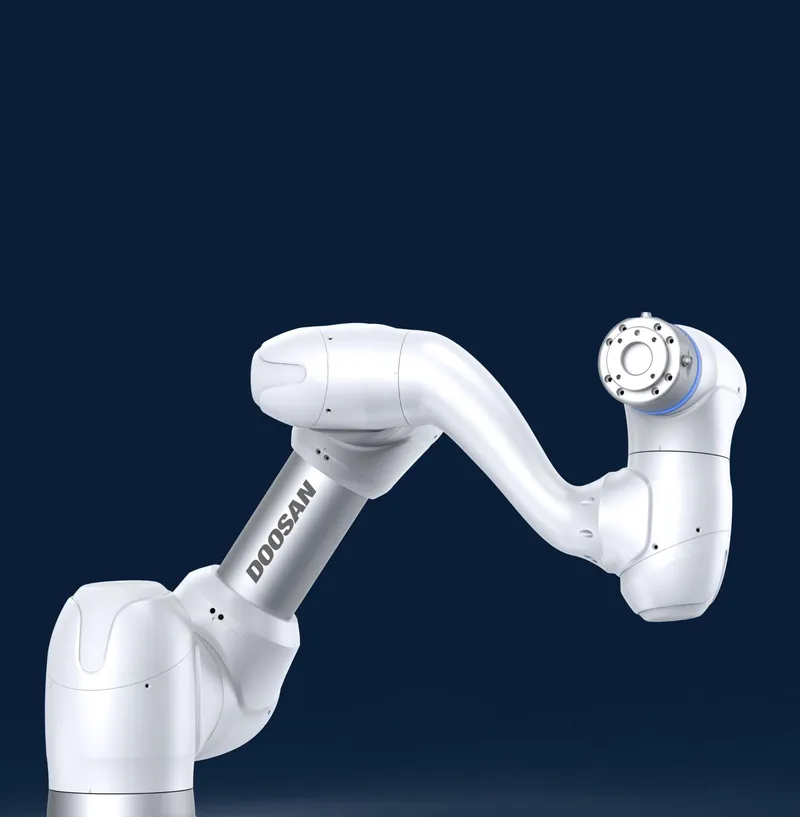

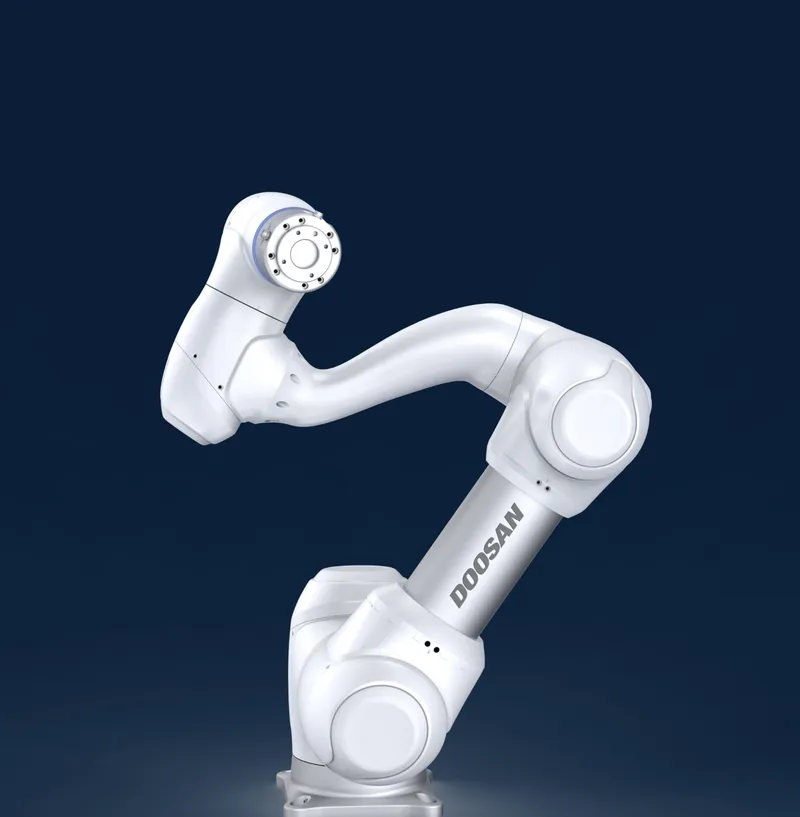

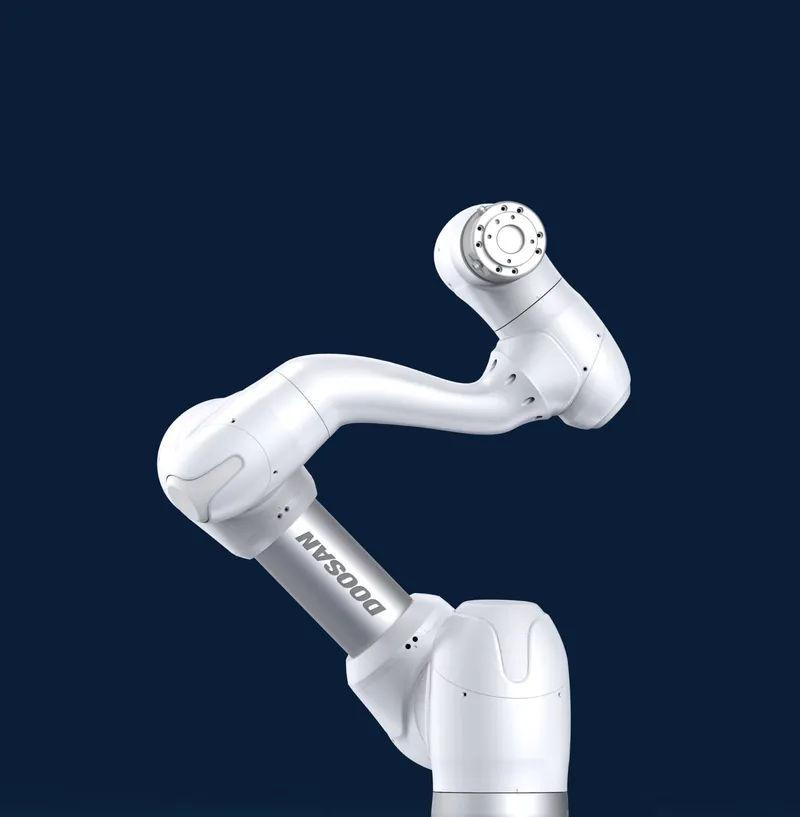

Doosan Robotics
M1509
15 kg high-payload M-series collaborative robot with 900 mm reach, delivering industry-leading payload density for compact-footprint heavy-part handling.
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 15 kg 70th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 900 mm 29th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.05 mm 10th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 6
- Max TCP speed
Top linear speed of the tool centre point. Higher means faster cycle times.
- 1,000 mm/s 0th pct in class
Motion range & speed
Per-axis travel limits and rotational speeds.
- Max axis speed
Highest rotational speed of the fastest joint. Higher helps short, fast moves.
- 225 °/s 51th pct in class
Motion range and maximum speed per joint.
| Axis | Range | Max speed |
|---|---|---|
| J1 | -360° to 360° | 150 °/s |
| J2 | -360° to 360° | 150 °/s |
| J3 | -150° to 150° | 180 °/s |
| J4 | -360° to 360° | 225 °/s |
| J5 | -360° to 360° | 225 °/s |
| J6 | -360° to 360° | 225 °/s |
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 35 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- floor, ceiling, wall, tilted
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (arm)
Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.
- IP54 5th pct in class
- Operating temp
Ambient temperature range for normal operation.
- 0 to 45 °C
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- Yes
- Safety standards
Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).
- ISO 10218-1, ISO/TS 15066, PLd Cat.3
- Collab features
Collaborative safety functions: power-force-limiting, speed-and-separation monitoring, hand-guiding, safety-rated stops.
- power-force-limiting, speed-and-separation-monitoring, safety-rated-stop, hand-guiding
- Cert. cobot payload
Payload at which collaborative (force-limited) operation is still certified.
- 15 kg 69th pct in class
- Safety zones
Number of configurable safety planes/zones the controller supports.
- 24
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- teach-pendant, lead-through, block-programming, script
- Languages
Native robot programming language(s) — e.g. KRL (KUKA), RAPID (ABB), URScript (UR), INFORM (Yaskawa).
- DRL (Doosan Robot Language)
- Teach pendant
The handheld programming/jog device supplied.
- 10.1" touchscreen tablet pendant (DART-Suite)
- Offline programming
Whether programs can be built and validated offline in a digital twin before deployment.
- Yes
Connectivity & I/O
Signals, fieldbuses and tooling interfaces.
- Fieldbus
Industrial networks supported for PLC/cell integration (PROFINET, EtherNet/IP, EtherCAT, Modbus TCP, CC-Link, etc.).
- EtherNet/IP, PROFINET, Modbus TCP, EtherCAT
Industrial Robotics Hub — industrialroboticshub.com
Safety certifications
- ISO 10218-1 — the primary industrial-robot safety standard covering design and construction requirements
- ISO/TS 15066 — the safety standard for collaborative robots working near people (force and speed limits)
- PLd Cat.3 — high safety-integrity (PLd) with a dual-channel architecture that tolerates one fault without losing the safety function
Specifications sourced from Doosan Robotics official datasheet ↗. Specs last verified 2026-07-01.
Owner reviews
Real, first-hand feedback from people who run the Doosan Robotics M1509. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the Doosan Robotics M1509? +
The Doosan Robotics M1509 has a maximum payload of 15 kg.
What is the reach of the Doosan Robotics M1509? +
The Doosan Robotics M1509 has a maximum reach of 900 mm (0.90 m).
What is the repeatability of the Doosan Robotics M1509? +
The Doosan Robotics M1509 has a pose repeatability of ±0.05 mm (ISO 9283), making it highly accurate for precision work.
How many axes does the Doosan Robotics M1509 have? +
The Doosan Robotics M1509 is a 6-axis collaborative robot.
What is the Doosan Robotics M1509 used for? +
The Doosan Robotics M1509 is typically used for assembly, machine-tending, pick-and-place, inspection.
Is the Doosan Robotics M1509 a collaborative robot? +
Yes — the Doosan Robotics M1509 is a collaborative robot (cobot) designed to work safely alongside people under ISO/TS 15066.
What controller does the Doosan Robotics M1509 use? +
The Doosan Robotics M1509 runs on the DART Platform controller.
What is the IP rating of the Doosan Robotics M1509? +
The Doosan Robotics M1509 arm carries an IP54 ingress-protection rating.
