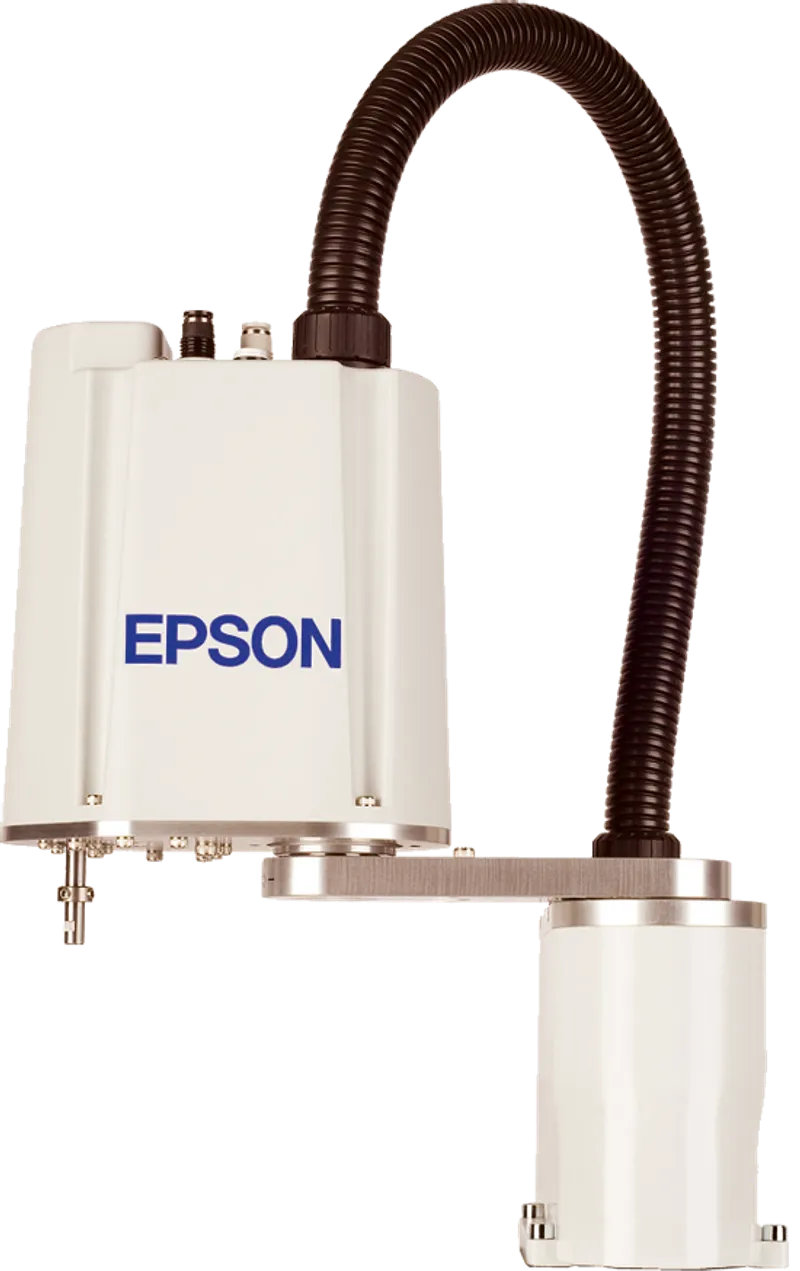

Product image © Epson Robots, shown for identification. Official source ↗.
Epson Robots
G1-221
Smallest SCARA Epson builds - a 225 mm-arm mini robot weighing 8 kg, carrying 0.5 kg rated / 1.5 kg maximum with +/-0.008 mm repeatability and a 0.30 s cycle. Also offered as a 3-axis model without the rotating joint 4.
Payload
1.5 kg
@ full reach: 0.5 kg
Reach
225 mm
Repeatability
±0.008 mm
💲 Price on application
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 1.5 kg 0th pct in class
- Payload at full reach
Manufacturer-stated payload at the wrist when the arm is at (or near) maximum horizontal reach. Often 20-40% below the headline rated payload because leverage and inertia rise with extension. Higher means it keeps more usable capacity at the edge of its envelope.
- 0.5 kg 0th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 225 mm 0th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.008 mm 98th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 4
- Std cycle time
Time for a standard 25/305/25 mm pick-place move where published. Lower is faster.
- 0.3 s 88th pct in class
Motion range & speed
Per-axis travel limits and rotational speeds.
Motion range and maximum speed per joint.
| Axis | Range | Max speed |
|---|---|---|
| J1 | -125° to 125° | — |
| J2 | -152° to 152° | — |
| J4 | -360° to 360° | — |
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 8 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- tabletop
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- Cleanroom class
ISO 14644-1 cleanroom rating the robot is certified for. Lower number = cleaner environment.
- 3 ISO 10th pct in class
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- No
- Safety standards
Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).
- UL 1740, CE
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- teach-pendant, offline-sim
- Languages
Native robot programming language(s) — e.g. KRL (KUKA), RAPID (ABB), URScript (UR), INFORM (Yaskawa).
- SPEL+
- Simulation
Offline programming / simulation software for the robot.
- Epson RC+
- Offline programming
Whether programs can be built and validated offline in a digital twin before deployment.
- Yes
Safety certifications
- UL 1740 — UL certification — North American safety listing confirming compliance with product-safety standards
- CE — CE marking — confirms conformity with EU product-safety directives for the European market
Specifications sourced from Epson Robots official datasheet ↗. Specs last verified 2026-08-06.
Owner reviews
Real, first-hand feedback from people who run the Epson Robots G1-221. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the Epson Robots G1-221? +
The Epson Robots G1-221 has a maximum payload of 1.5 kg.
What is the reach of the Epson Robots G1-221? +
The Epson Robots G1-221 has a maximum reach of 225 mm (0.23 m).
What is the repeatability of the Epson Robots G1-221? +
The Epson Robots G1-221 has a pose repeatability of ±0.008 mm (ISO 9283), making it highly accurate for precision work.
How many axes does the Epson Robots G1-221 have? +
The Epson Robots G1-221 is a 4-axis scara robot.
What is the Epson Robots G1-221 used for? +
The Epson Robots G1-221 is typically used for assembly, pick-and-place, inspection, screw-driving.
What controller does the Epson Robots G1-221 use? +
The Epson Robots G1-221 runs on the RC700A controller.
How much does the Epson Robots G1-221 cost? +
Epson Robots G1-221: Price on application. Industrial robots are typically quoted per project through authorized distributors.
