Epson Robots
T3

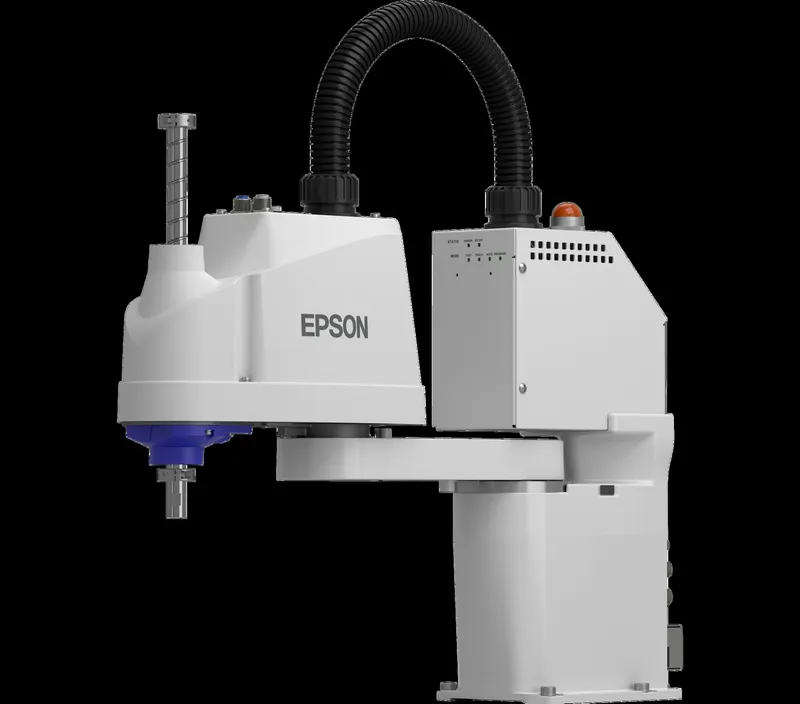

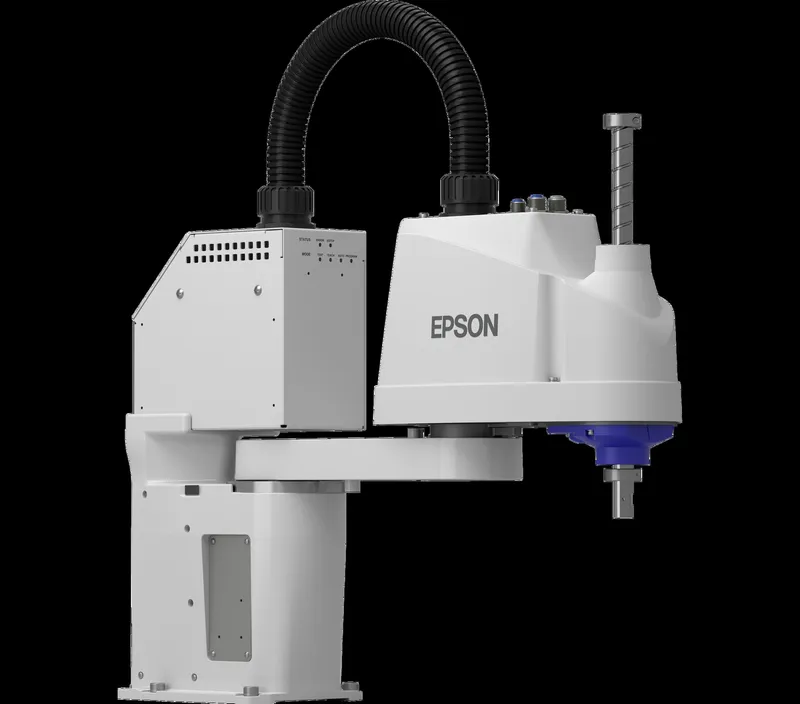

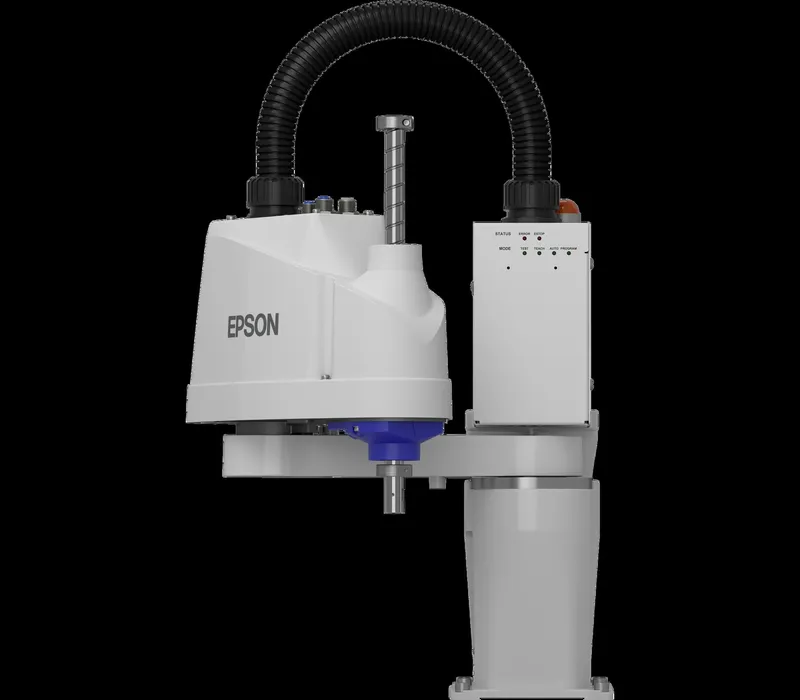

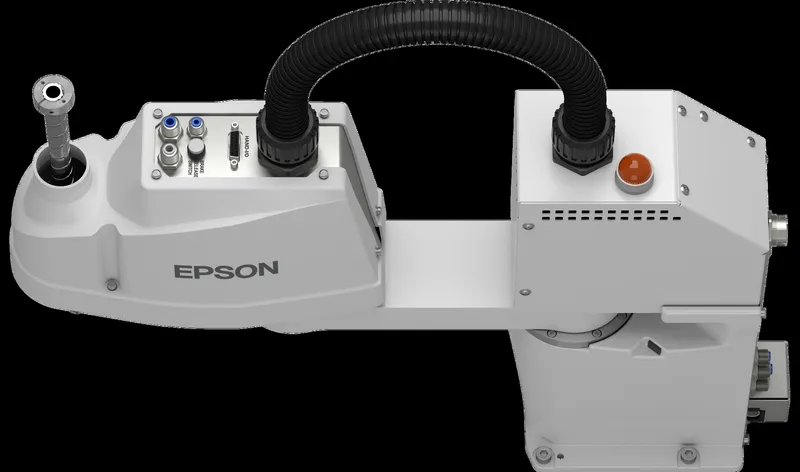

An all-in-one 3 kg SCARA with 400 mm reach and a controller integrated into the robot base, running on standard 100–240 V single-phase power. Eliminates the external controller cabinet for space-constrained automation cells.
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 3 kg 2th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 400 mm 12th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.02 mm 21th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 4
Motion range & speed
Per-axis travel limits and rotational speeds.
Motion range and maximum speed per joint.
| Axis | Range | Max speed |
|---|---|---|
| J1 | -132° to 132° | — |
| J2 | -141° to 141° | — |
| J4 | -360° to 360° | — |
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 16 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- floor
Power & controller
Electrical supply and the control cabinet that drives it.
- Power supply
Required input voltage / phase for the controller.
- AC 100-240 V Single Phase
- Power draw
Typical operating power consumption. Lower is more efficient.
- 660 W 25th pct in class

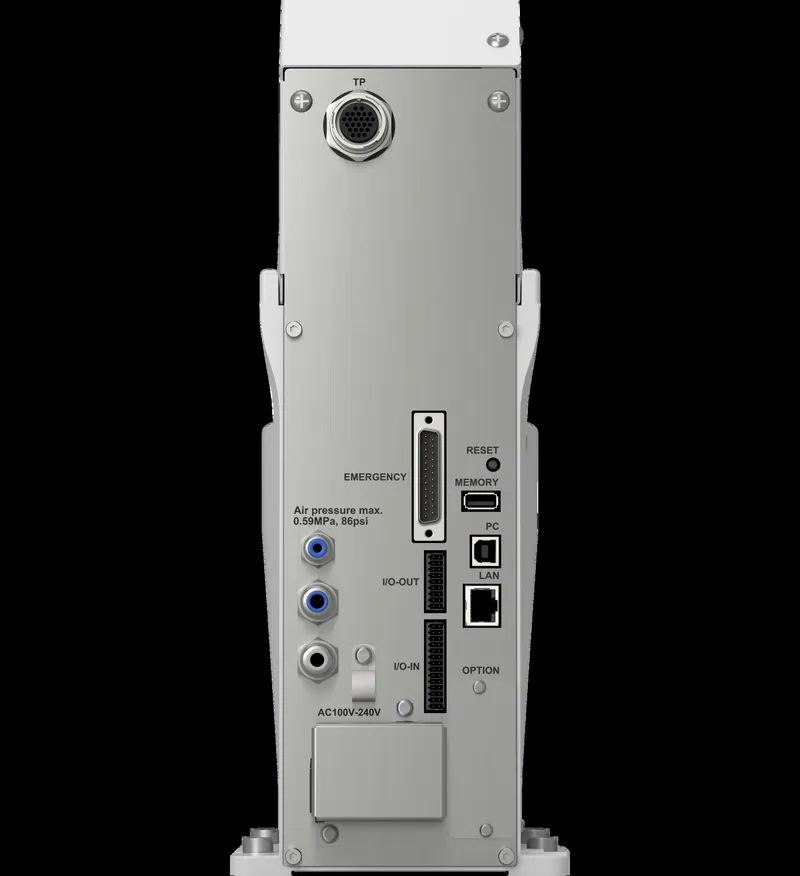

- Controller
The control cabinet / unit that runs the robot.
- Built-in controller
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (arm)
Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.
- IP20 0th pct in class
- Operating temp
Ambient temperature range for normal operation.
- 5 to 40 °C
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- No
- Safety standards
Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).
- ISO 10218-1
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- teach-pendant, offline-sim
- Languages
Native robot programming language(s) — e.g. KRL (KUKA), RAPID (ABB), URScript (UR), INFORM (Yaskawa).
- SPEL+
- Offline programming
Whether programs can be built and validated offline in a digital twin before deployment.
- Yes
Connectivity & I/O
Signals, fieldbuses and tooling interfaces.
- Fieldbus
Industrial networks supported for PLC/cell integration (PROFINET, EtherNet/IP, EtherCAT, Modbus TCP, CC-Link, etc.).
- EtherNet/IP, PROFINET
Industrial Robotics Hub — industrialroboticshub.com
Safety certifications
- ISO 10218-1 — the primary industrial-robot safety standard covering design and construction requirements
Specifications sourced from Epson Robots official datasheet ↗. Specs last verified 2026-07-01.
Owner reviews
Real, first-hand feedback from people who run the Epson Robots T3. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the Epson Robots T3? +
The Epson Robots T3 has a maximum payload of 3 kg.
What is the reach of the Epson Robots T3? +
The Epson Robots T3 has a maximum reach of 400 mm (0.40 m).
What is the repeatability of the Epson Robots T3? +
The Epson Robots T3 has a pose repeatability of ±0.02 mm (ISO 9283), making it highly accurate for precision work.
How many axes does the Epson Robots T3 have? +
The Epson Robots T3 is a 4-axis scara robot.
What is the Epson Robots T3 used for? +
The Epson Robots T3 is typically used for assembly, pick-and-place, inspection.
What controller does the Epson Robots T3 use? +
The Epson Robots T3 runs on the Built-in controller controller.
What is the IP rating of the Epson Robots T3? +
The Epson Robots T3 arm carries an IP20 ingress-protection rating.
