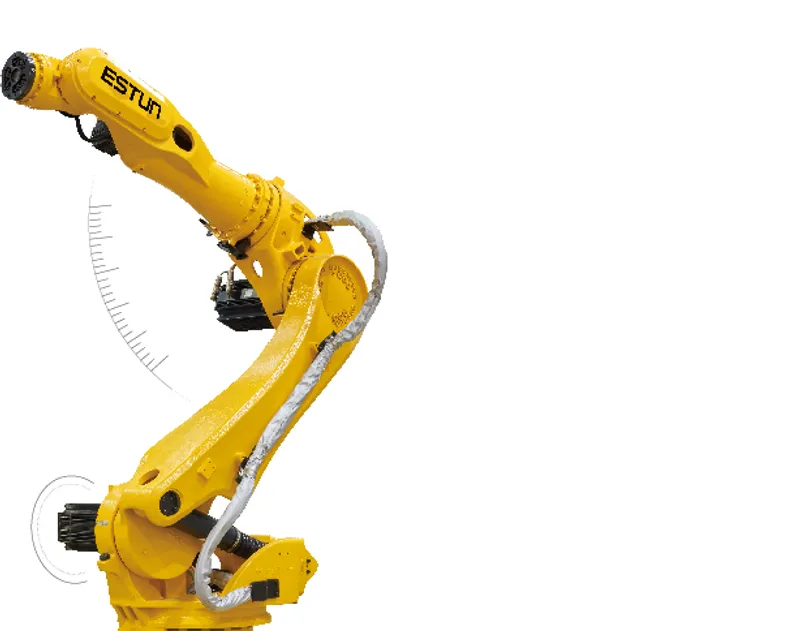

Product image © Estun, shown for identification. Official source ↗.

Documents

Manufacturer ESTUN ER Series Robot Catalog (PDF)

Articulated arm 🇨🇳 China ✓ Verified specs

Estun

ER170B-2650

170 kg payload 6-axis robot with 2650 mm reach and 0.2 mm repeatability, one step above the 220 kg B-series arm.

Payload

170 kg

@ full reach: usually lower

Reach

2,650 mm

Repeatability

±0.2 mm

💲 Price on application

Full specifications

Performance

How much it lifts, how far it reaches, how precisely it repeats.

Payload Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.: 170 kg

75th pct in class
Reach Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.: 2,650 mm

71th pct in class
Repeatability How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.: 0.2 mm

3th pct in class
Axes (DOF) Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.: 6

Motion range & speed

Per-axis travel limits and rotational speeds.

Max axis speed Highest rotational speed of the fastest joint. Higher helps short, fast moves.: 160 °/s

19th pct in class

Axis	Range	Max speed
J1	-180° to 180°	114 °/s
J2	-60° to 80°	105 °/s
J3	-95° to 80°	119 °/s
J4	-180° to 180°	120 °/s
J5	-125° to 125°	120 °/s
J6	-360° to 360°	160 °/s

Physical

Size, mass and how it mounts.

Robot weight Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.: 1,092 kg
Mounting Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).: floor

Environment

Conditions it can operate in — dust, water, temperature, cleanliness.

IP rating (arm) Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.: IP54

19th pct in class

Safety

Standards met and collaborative-operation capability.

Collaborative Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).: No
Safety standards Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).: ISO 10218-1

Control & software

Programming, languages and ecosystem.

Programming How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.: teach-pendant, offline-sim
ROS support Robot Operating System driver availability (none / ROS 1 / ROS 2 / both).: none

Safety certifications

ISO 10218-1 — the primary industrial-robot safety standard covering design and construction requirements

Specifications sourced from Estun official datasheet ↗. Specs last verified 2026-07-16.
