Estun

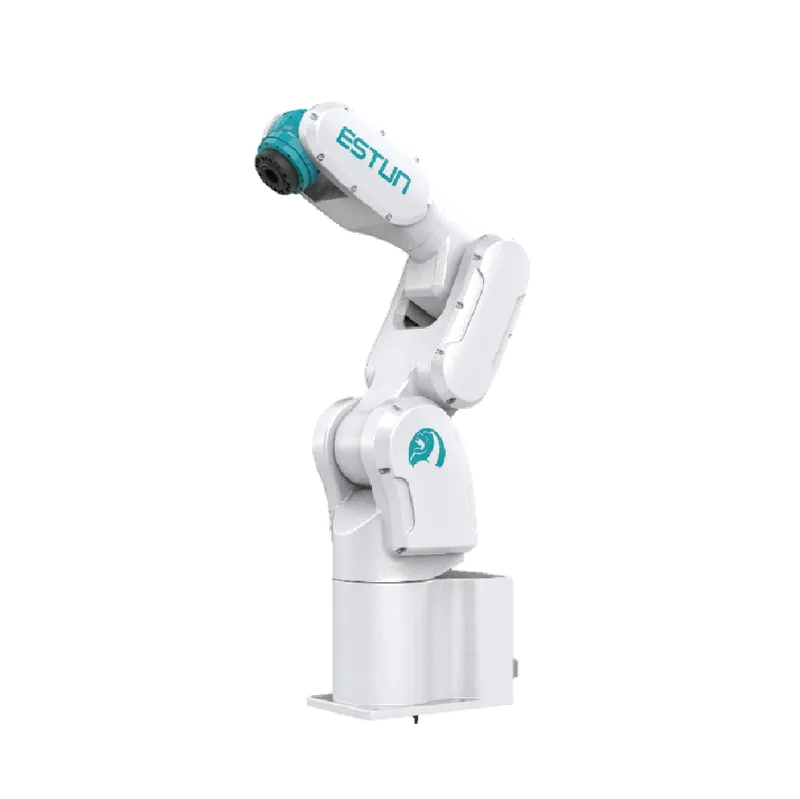

ER4-550-MI
Ultra-compact 4 kg mini articulated robot with 550 mm reach and IP65 rating, designed for precision assembly and electronics tasks in tight spaces.
💲 Price on application
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 4 kg 5th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 550 mm 5th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 6
Motion range & speed
Per-axis travel limits and rotational speeds.
- Max axis speed
Highest rotational speed of the fastest joint. Higher helps short, fast moves.
- 823 °/s 86th pct in class
Motion range and maximum speed per joint.
| Axis | Range | Max speed |
|---|---|---|
| J1 | -170° to 170° | 490 °/s |
| J2 | -90° to 130° | 407 °/s |
| J3 | -200° to 65° | 520 °/s |
| J4 | -190° to 190° | 655 °/s |
| J5 | -120° to 120° | 700 °/s |
| J6 | -360° to 360° | 823 °/s |
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 22 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- floor
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (arm)
Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.
- IP65 48th pct in class
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- No
- Safety standards
Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).
- ISO 10218-1
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- teach-pendant, offline-sim
- ROS support
Robot Operating System driver availability (none / ROS 1 / ROS 2 / both).
- none
Industrial Robotics Hub — industrialroboticshub.com
Safety certifications
- ISO 10218-1 — the primary industrial-robot safety standard covering design and construction requirements

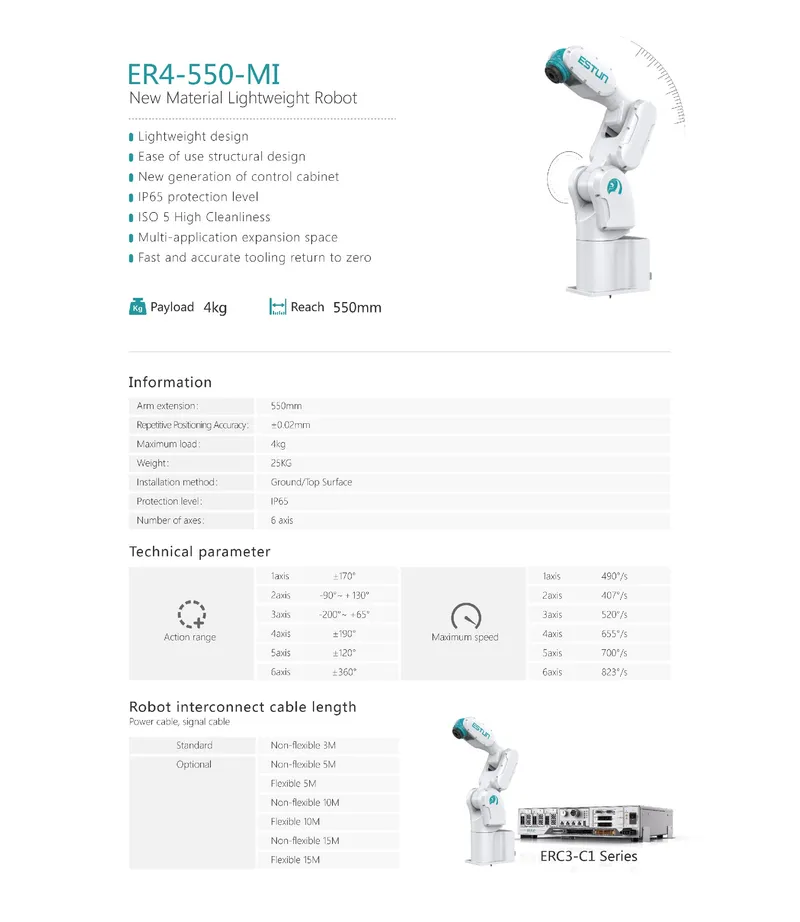

Specifications sourced from Estun official datasheet ↗. Specs last verified 2026-06-26.
Owner reviews
Real, first-hand feedback from people who run the Estun ER4-550-MI. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the Estun ER4-550-MI? +
The Estun ER4-550-MI has a maximum payload of 4 kg.
What is the reach of the Estun ER4-550-MI? +
The Estun ER4-550-MI has a maximum reach of 550 mm (0.55 m).
How many axes does the Estun ER4-550-MI have? +
The Estun ER4-550-MI is a 6-axis articulated arm robot.
What is the Estun ER4-550-MI used for? +
The Estun ER4-550-MI is typically used for assembly, dispensing, inspection.
What is the IP rating of the Estun ER4-550-MI? +
The Estun ER4-550-MI arm carries an IP65 ingress-protection rating.
How much does the Estun ER4-550-MI cost? +
Estun ER4-550-MI: Price on application. Industrial robots are typically quoted per project through authorized distributors.
