FANUC

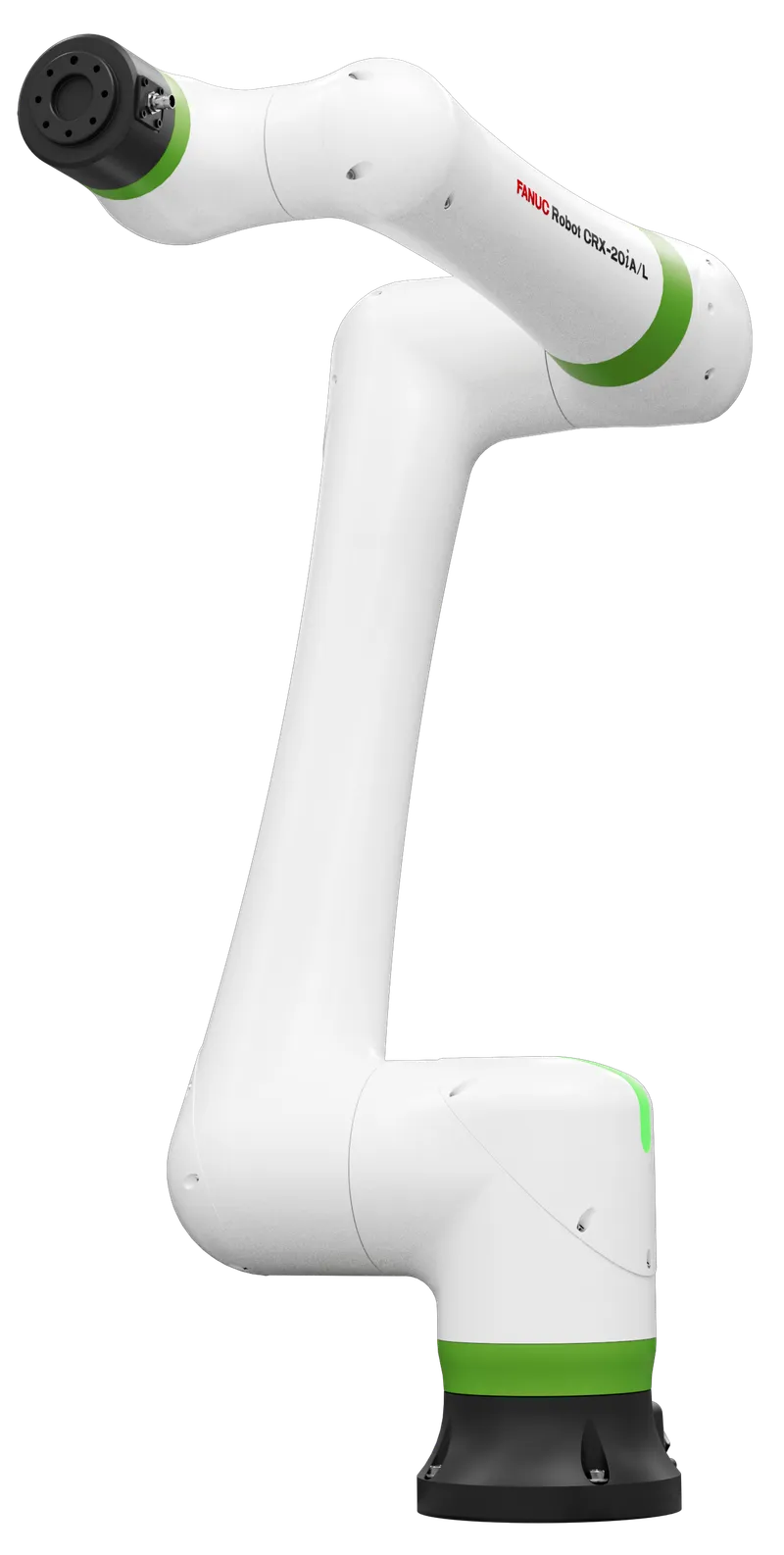

CRX-20iA/L
A 20 kg long-reach collaborative robot with 1418 mm reach — brings higher payload palletizing and machine tending to the easy-to-use CRX family.
💲 Price on application
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 20 kg 79th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 1,418 mm 77th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.04 mm 45th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 6
- Max TCP speed
Top linear speed of the tool centre point. Higher means faster cycle times.
- 1,500 mm/s 40th pct in class
- Wrist torque
Allowable torque at the wrist axis — how much twisting force a tool can apply. Higher handles bigger/offset tools.
- 70 N·m 82th pct in class
- Wrist inertia
Allowable moment of inertia at the wrist — how much rotating mass it can swing without overload. Higher is more capable.
- 4 kg·m² 71th pct in class
Motion range & speed
Per-axis travel limits and rotational speeds.
- Max axis speed
Highest rotational speed of the fastest joint. Higher helps short, fast moves.
- 600 °/s 92th pct in class
Motion range and maximum speed per joint.
| Axis | Range | Max speed |
|---|---|---|
| J1 | -180° to 180° | 80 °/s |
| J2 | -180° to 180° | 80 °/s |
| J3 | -270° to 270° | 120 °/s |
| J4 | -190° to 190° | 112 °/s |
| J5 | -180° to 180° | 90 °/s |
| J6 | -225° to 225° | 112 °/s |
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 64 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- floor, ceiling, wall, tilted
Power & controller
Electrical supply and the control cabinet that drives it.
- Power supply
Required input voltage / phase for the controller.
- 200-240 V AC, single phase
- Power draw
Typical operating power consumption. Lower is more efficient.
- 800 W 15th pct in class
- Controller
The control cabinet / unit that runs the robot.
- R-30iB Mini Plus
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (arm)
Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.
- IP67 78th pct in class
- IP rating (wrist)
Ingress protection at the wrist, often higher than the body for wet/washdown duty.
- IP67 31th pct in class
- Operating temp
Ambient temperature range for normal operation.
- 0 to 45 °C
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- Yes
- Safety standards
Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).
- ISO 10218-1, ISO/TS 15066, PLd Cat.3
- Collab features
Collaborative safety functions: power-force-limiting, speed-and-separation monitoring, hand-guiding, safety-rated stops.
- power-force-limiting, safety-rated-stop, hand-guiding
- Cert. cobot payload
Payload at which collaborative (force-limited) operation is still certified.
- 20 kg 79th pct in class
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- teach-pendant, lead-through, graphical-blockly
- Languages
Native robot programming language(s) — e.g. KRL (KUKA), RAPID (ABB), URScript (UR), INFORM (Yaskawa).
- KAREL, TP
- ROS support
Robot Operating System driver availability (none / ROS 1 / ROS 2 / both).
- ros1
- Teach pendant
The handheld programming/jog device supplied.
- Tablet TP (drag-and-drop)
- Offline programming
Whether programs can be built and validated offline in a digital twin before deployment.
- Yes
Connectivity & I/O
Signals, fieldbuses and tooling interfaces.
- Fieldbus
Industrial networks supported for PLC/cell integration (PROFINET, EtherNet/IP, EtherCAT, Modbus TCP, CC-Link, etc.).
- PROFINET, EtherNet/IP, EtherCAT
- Tool flange
Mechanical interface at the wrist for mounting tools (ISO 9409-1 pattern).
- ISO 9409-1-50-4-M6
Industrial Robotics Hub — industrialroboticshub.com
Safety certifications
- ISO 10218-1 — the primary industrial-robot safety standard covering design and construction requirements
- ISO/TS 15066 — the safety standard for collaborative robots working near people (force and speed limits)
- PLd Cat.3 — high safety-integrity (PLd) with a dual-channel architecture that tolerates one fault without losing the safety function
Specifications sourced from FANUC official datasheet ↗. Specs last verified 2026-07-16.
Owner reviews
Real, first-hand feedback from people who run the FANUC CRX-20iA/L. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the FANUC CRX-20iA/L? +
The FANUC CRX-20iA/L has a maximum payload of 20 kg.
What is the reach of the FANUC CRX-20iA/L? +
The FANUC CRX-20iA/L has a maximum reach of 1,418 mm (1.42 m).
What is the repeatability of the FANUC CRX-20iA/L? +
The FANUC CRX-20iA/L has a pose repeatability of ±0.04 mm (ISO 9283), making it highly accurate for precision work.
How many axes does the FANUC CRX-20iA/L have? +
The FANUC CRX-20iA/L is a 6-axis collaborative robot.
What is the FANUC CRX-20iA/L used for? +
The FANUC CRX-20iA/L is typically used for palletizing, machine-tending, material-handling, pick-and-place.
Is the FANUC CRX-20iA/L a collaborative robot? +
Yes — the FANUC CRX-20iA/L is a collaborative robot (cobot) designed to work safely alongside people under ISO/TS 15066.
What controller does the FANUC CRX-20iA/L use? +
The FANUC CRX-20iA/L runs on the R-30iB Mini Plus controller.
What is the IP rating of the FANUC CRX-20iA/L? +
The FANUC CRX-20iA/L arm carries an IP67 ingress-protection rating.
How much does the FANUC CRX-20iA/L cost? +
FANUC CRX-20iA/L: Price on application. Industrial robots are typically quoted per project through authorized distributors.
