FANUC
CRX-5iA

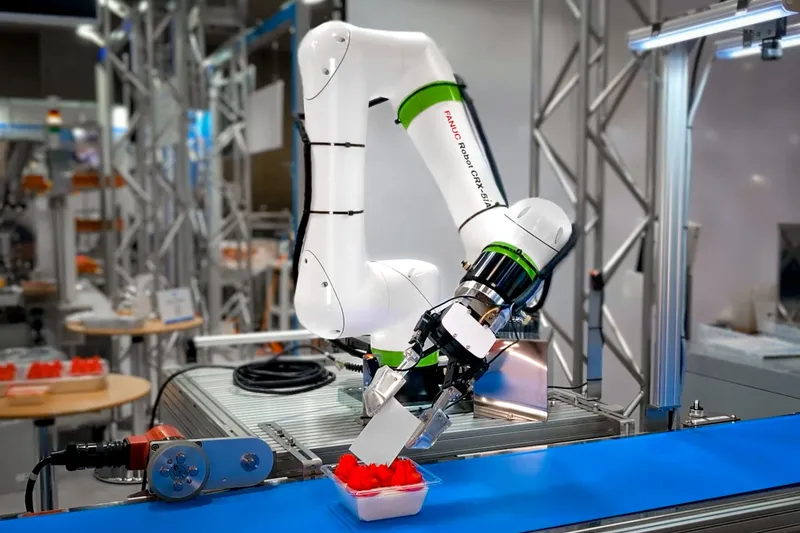

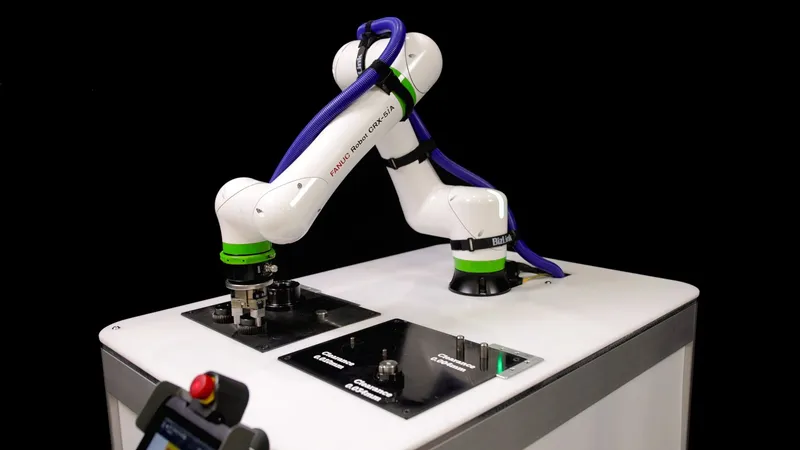

A 5 kg collaborative robot with 994 mm reach, part of FANUC's CRX line aimed at manufacturers with little robotics experience, using the drag-and-drop CRX programming interface for material handling, machine tending and pick/pack.
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 5 kg 17th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 994 mm 47th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.03 mm 49th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 6
- Max TCP speed
Top linear speed of the tool centre point. Higher means faster cycle times.
- 2,000 mm/s 55th pct in class
- Wrist torque
Allowable torque at the wrist axis — how much twisting force a tool can apply. Higher handles bigger/offset tools.
- 19 N·m 35th pct in class
- Wrist inertia
Allowable moment of inertia at the wrist — how much rotating mass it can swing without overload. Higher is more capable.
- 0.77 kg·m² 24th pct in class
Motion range & speed
Per-axis travel limits and rotational speeds.
- Max axis speed
Highest rotational speed of the fastest joint. Higher helps short, fast moves.
- 2,000 °/s 98th pct in class
Motion range and maximum speed per joint.
| Axis | Range | Max speed |
|---|---|---|
| J1 | -200° to 200° | — |
| J2 | -180° to 180° | — |
| J3 | -317.5° to 317.5° | — |
| J4 | -190° to 190° | — |
| J5 | -180° to 180° | — |
| J6 | -225° to 225° | — |
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 25 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- floor, tilted, ceiling
Power & controller
Electrical supply and the control cabinet that drives it.
- Power supply
Required input voltage / phase for the controller.
- 100-120 / 200-240 VAC
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (arm)
Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.
- IP67 78th pct in class
- IP rating (wrist)
Ingress protection at the wrist, often higher than the body for wet/washdown duty.
- IP67 31th pct in class
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- Yes
- Cert. cobot payload
Payload at which collaborative (force-limited) operation is still certified.
- 5 kg 16th pct in class
Specifications sourced from FANUC official datasheet ↗. Specs last verified 2026-07-13.
Owner reviews
Real, first-hand feedback from people who run the FANUC CRX-5iA. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the FANUC CRX-5iA? +
The FANUC CRX-5iA has a maximum payload of 5 kg.
What is the reach of the FANUC CRX-5iA? +
The FANUC CRX-5iA has a maximum reach of 994 mm (0.99 m).
What is the repeatability of the FANUC CRX-5iA? +
The FANUC CRX-5iA has a pose repeatability of ±0.03 mm (ISO 9283), making it highly accurate for precision work.
How many axes does the FANUC CRX-5iA have? +
The FANUC CRX-5iA is a 6-axis collaborative robot.
What is the FANUC CRX-5iA used for? +
The FANUC CRX-5iA is typically used for material-handling, machine-tending, pick-and-place, packaging.
Is the FANUC CRX-5iA a collaborative robot? +
Yes — the FANUC CRX-5iA is a collaborative robot (cobot) designed to work safely alongside people under ISO/TS 15066.
What is the IP rating of the FANUC CRX-5iA? +
The FANUC CRX-5iA arm carries an IP67 ingress-protection rating.
