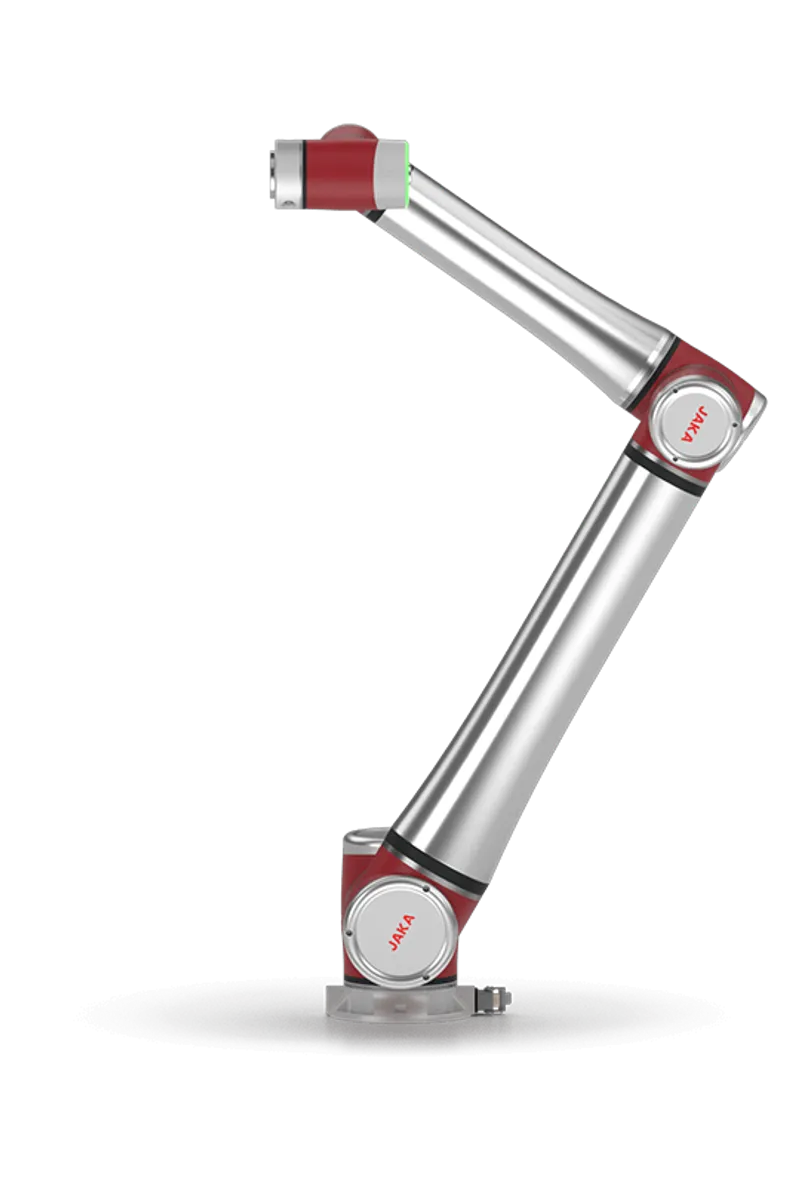

JAKA
A12
JAKA A12 is a 12 kg payload collaborative robot with 1425 mm reach and 0.03 mm repeatability, IP67-rated end joints for demanding machine-tending and material-handling tasks.
💲 Price on application
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 12 kg 35th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 1,425 mm 34th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.03 mm 51th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 6
- Max TCP speed
Top linear speed of the tool centre point. Higher means faster cycle times.
- 4,000 mm/s 57th pct in class
Motion range & speed
Per-axis travel limits and rotational speeds.
Motion range and maximum speed per joint.
| Axis | Range | Max speed |
|---|---|---|
| J1 | -360° to 360° | 150 °/s |
| J2 | -85° to 265° | 150 °/s |
| J3 | -175° to 175° | 210 °/s |
| J4 | -85° to 265° | 210 °/s |
| J5 | -360° to 360° | 265 °/s |
| J6 | -360° to 360° | 265 °/s |
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 41 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- floor, ceiling, wall, angle
Power & controller
Electrical supply and the control cabinet that drives it.
- Power supply
Required input voltage / phase for the controller.
- 100-240VAC, 50-60Hz
- Power draw
Typical operating power consumption. Lower is more efficient.
- 500 W 75th pct in class
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (arm)
Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.
- IP54 19th pct in class
- IP rating (wrist)
Ingress protection at the wrist, often higher than the body for wet/washdown duty.
- IP67 14th pct in class
- Operating temp
Ambient temperature range for normal operation.
- 0 to 50 °C
- Humidity
Permissible relative-humidity range (non-condensing).
- 0 to 90 %RH
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- Yes
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- graphical-programming, hand-guiding
- ROS support
Robot Operating System driver availability (none / ROS 1 / ROS 2 / both).
- none
- Teach pendant
The handheld programming/jog device supplied.
- PC, mobile terminal (PAD/phone)
Connectivity & I/O
Signals, fieldbuses and tooling interfaces.
- Fieldbus
Industrial networks supported for PLC/cell integration (PROFINET, EtherNet/IP, EtherCAT, Modbus TCP, CC-Link, etc.).
- PROFINET, EtherNet/IP, Modbus TCP
- Digital I/O
Built-in digital inputs/outputs for grippers, sensors and signalling.
- 16 in / 16 out
Specifications sourced from JAKA official datasheet ↗. Specs last verified 2026-07-27.
Owner reviews
Real, first-hand feedback from people who run the JAKA A12. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the JAKA A12? +
The JAKA A12 has a maximum payload of 12 kg.
What is the reach of the JAKA A12? +
The JAKA A12 has a maximum reach of 1,425 mm (1.43 m).
What is the repeatability of the JAKA A12? +
The JAKA A12 has a pose repeatability of ±0.03 mm (ISO 9283), making it highly accurate for precision work.
How many axes does the JAKA A12 have? +
The JAKA A12 is a 6-axis articulated arm robot.
What is the JAKA A12 used for? +
The JAKA A12 is typically used for machine-tending, material-handling, assembly.
Is the JAKA A12 a collaborative robot? +
Yes — the JAKA A12 is a collaborative robot (cobot) designed to work safely alongside people under ISO/TS 15066.
What controller does the JAKA A12 use? +
The JAKA A12 runs on the CAB 12 controller.
What is the IP rating of the JAKA A12? +
The JAKA A12 arm carries an IP54 ingress-protection rating.
How much does the JAKA A12 cost? +
JAKA A12: Price on application. Industrial robots are typically quoted per project through authorized distributors.
