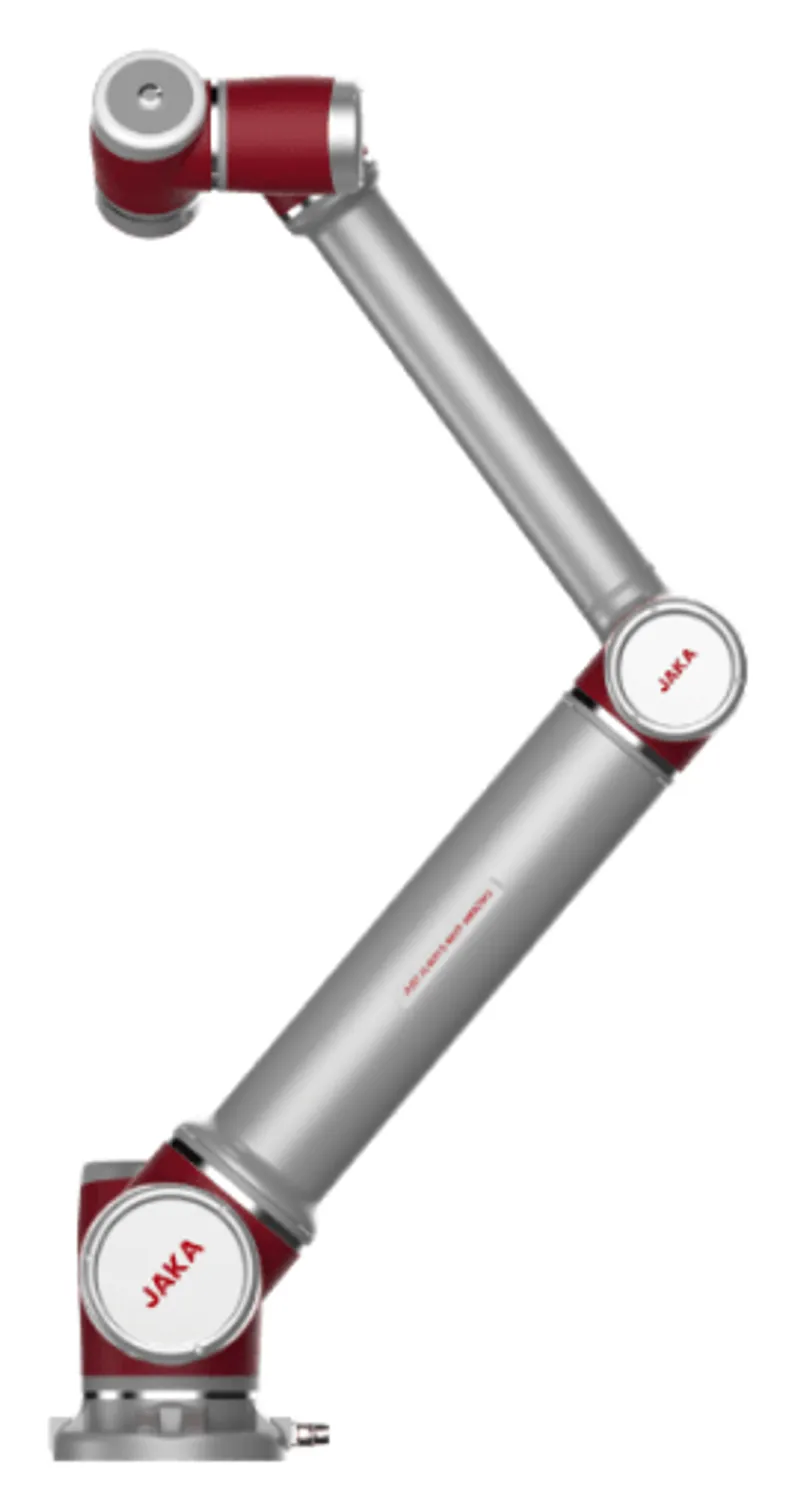

Pro 16

JAKA Pro 16 is a 16 kg payload, 1713 mm reach IP68-rated collaborative arm suited for long-reach heavy-duty tasks in wet or particle-laden environments.

Partial · 44%

Payload

16 kg

Reach

1,713 mm

Repeatability

±0.02 mm

💲 Price on application

Full specifications

Performance

How much it lifts, how far it reaches, how precisely it repeats.

Payload Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.: 16 kg

72th pct in class
Reach Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.: 1,713 mm

89th pct in class
Repeatability How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.: 0.02 mm

77th pct in class
Axes (DOF) Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.: 6
Max TCP speed Top linear speed of the tool centre point. Higher means faster cycle times.: 3,900 mm/s

81th pct in class

Physical

Size, mass and how it mounts.

Robot weight Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.: 74 kg
Mounting Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).: floor, ceiling, wall, any

Environment

Conditions it can operate in — dust, water, temperature, cleanliness.

IP rating (arm) Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.: IP68

97th pct in class
Operating temp Ambient temperature range for normal operation.: -10 to 50 °C

Safety

Standards met and collaborative-operation capability.

Collaborative Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).: Yes
Safety standards Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).: ISO 10218-1, ISO/TS 15066, CE
Cert. cobot payload Payload at which collaborative (force-limited) operation is still certified.: 16 kg

71th pct in class

Control & software

Programming, languages and ecosystem.

Programming How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.: hand-guiding, graphical, app
Offline programming Whether programs can be built and validated offline in a digital twin before deployment.: Yes

Connectivity & I/O

Signals, fieldbuses and tooling interfaces.

Fieldbus Industrial networks supported for PLC/cell integration (PROFINET, EtherNet/IP, EtherCAT, Modbus TCP, CC-Link, etc.).: Modbus TCP, Modbus RTU, TCP/IP
Integrated vision Whether a camera / vision system is built into the robot or controller.: No
