Kawasaki Robotics

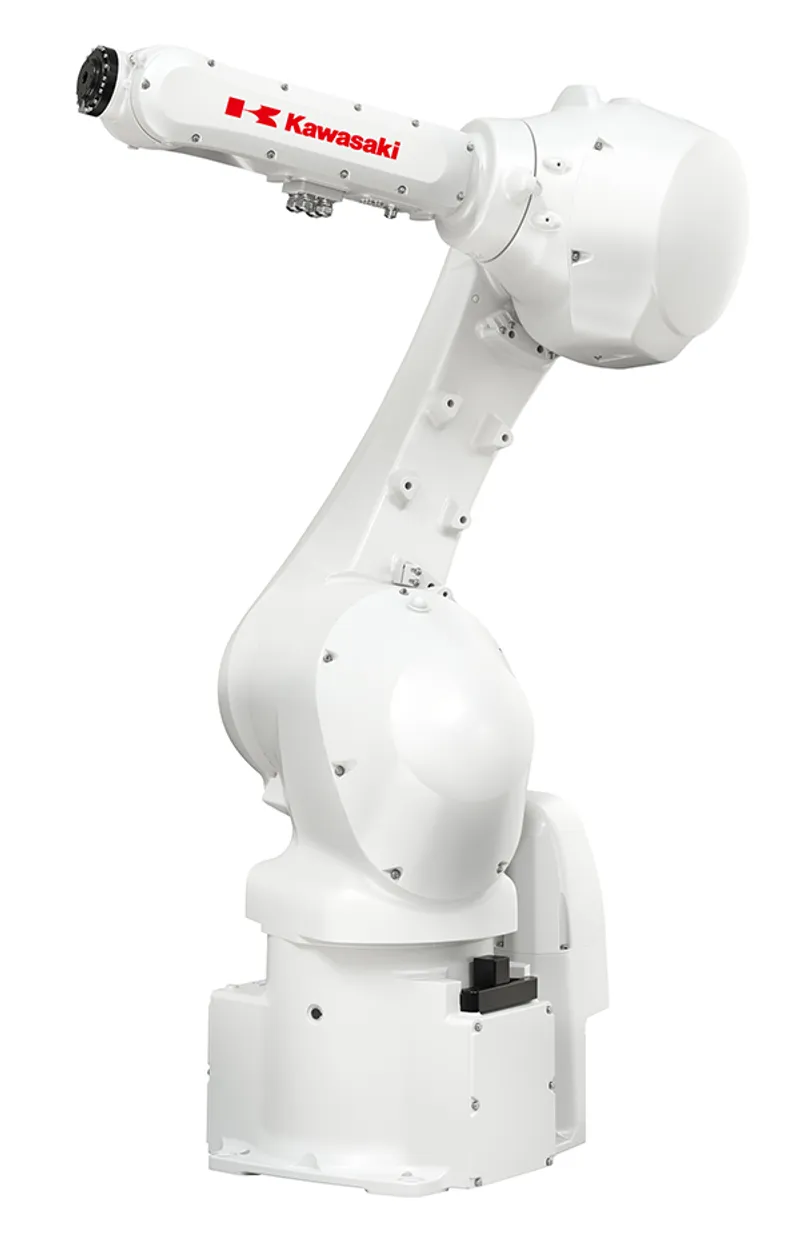

RS025S
Launched November 2025, the RS025S is a 25 kg high-rigidity general-purpose arm with a compact 1325 mm reach; its stiffened structure cuts tip deflection 60-70% versus prior same-payload models, rated IP67 for assembly and handling.
💲 Price on application
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 25 kg 50th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 1,325 mm 31th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.04 mm 43th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 6
- Wrist torque
Allowable torque at the wrist axis — how much twisting force a tool can apply. Higher handles bigger/offset tools.
- 70 N·m 48th pct in class
- Wrist inertia
Allowable moment of inertia at the wrist — how much rotating mass it can swing without overload. Higher is more capable.
- 2.8 kg·m² 53th pct in class

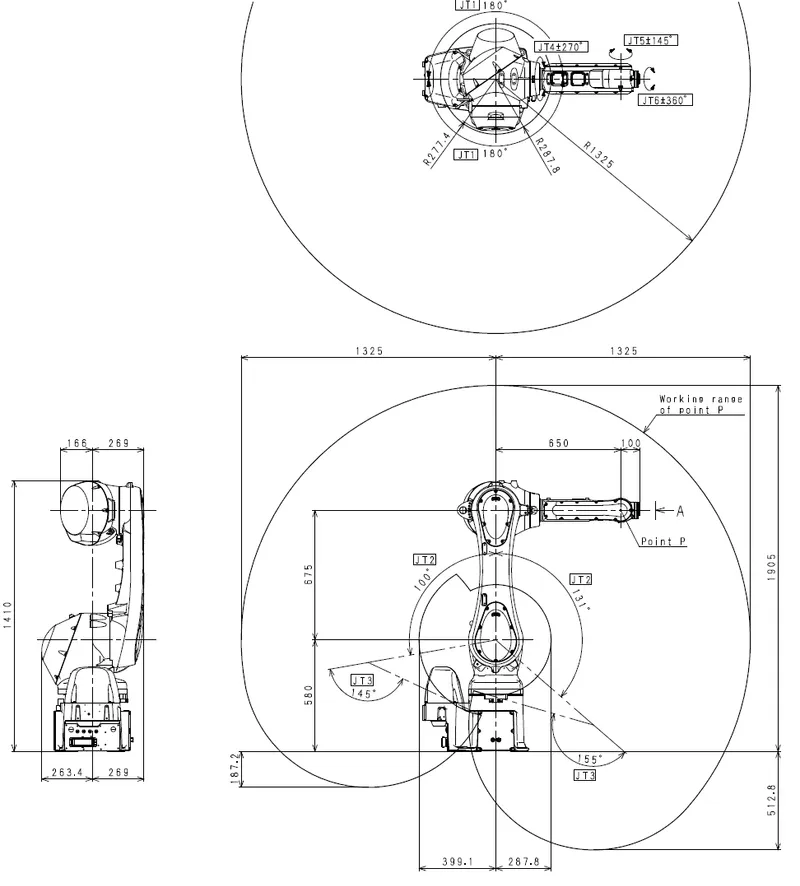

Motion range & speed
Per-axis travel limits and rotational speeds.
Motion range and maximum speed per joint.
| Axis | Range | Max speed |
|---|---|---|
| J1 | -180° to 180° | 215 °/s |
| J2 | -100° to 131° | 215 °/s |
| J3 | -155° to 145° | 270 °/s |
| J4 | -270° to 270° | 290 °/s |
| J5 | -145° to 145° | 410 °/s |
| J6 | -360° to 360° | 730 °/s |
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 265 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- floor, ceiling
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (arm)
Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.
- IP67 71th pct in class
- Operating temp
Ambient temperature range for normal operation.
- 0 to 45 °C
- Humidity
Permissible relative-humidity range (non-condensing).
- 35 to 85 %RH
- Cleanroom class
ISO 14644-1 cleanroom rating the robot is certified for. Lower number = cleaner environment.
- 6 ISO 0th pct in class
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- No
- Safety standards
Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).
- ISO 10218-1
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- teach-pendant, offline-sim
- Languages
Native robot programming language(s) — e.g. KRL (KUKA), RAPID (ABB), URScript (UR), INFORM (Yaskawa).
- AS
- Offline programming
Whether programs can be built and validated offline in a digital twin before deployment.
- Yes
Connectivity & I/O
Signals, fieldbuses and tooling interfaces.
- Fieldbus
Industrial networks supported for PLC/cell integration (PROFINET, EtherNet/IP, EtherCAT, Modbus TCP, CC-Link, etc.).
- PROFINET, EtherNet/IP, EtherCAT
Safety certifications
- ISO 10218-1 — the primary industrial-robot safety standard covering design and construction requirements
Specifications sourced from Kawasaki Robotics official datasheet ↗. Specs last verified 2026-07-06.
Owner reviews
Real, first-hand feedback from people who run the Kawasaki Robotics RS025S. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the Kawasaki Robotics RS025S? +
The Kawasaki Robotics RS025S has a maximum payload of 25 kg.
What is the reach of the Kawasaki Robotics RS025S? +
The Kawasaki Robotics RS025S has a maximum reach of 1,325 mm (1.32 m).
What is the repeatability of the Kawasaki Robotics RS025S? +
The Kawasaki Robotics RS025S has a pose repeatability of ±0.04 mm (ISO 9283), making it highly accurate for precision work.
How many axes does the Kawasaki Robotics RS025S have? +
The Kawasaki Robotics RS025S is a 6-axis articulated arm robot.
What is the Kawasaki Robotics RS025S used for? +
The Kawasaki Robotics RS025S is typically used for assembly, material-handling, machine-tending.
What is the IP rating of the Kawasaki Robotics RS025S? +
The Kawasaki Robotics RS025S arm carries an IP67 ingress-protection rating.
How much does the Kawasaki Robotics RS025S cost? +
Kawasaki Robotics RS025S: Price on application. Industrial robots are typically quoted per project through authorized distributors.
