KUKA
KR 16 R1100-3

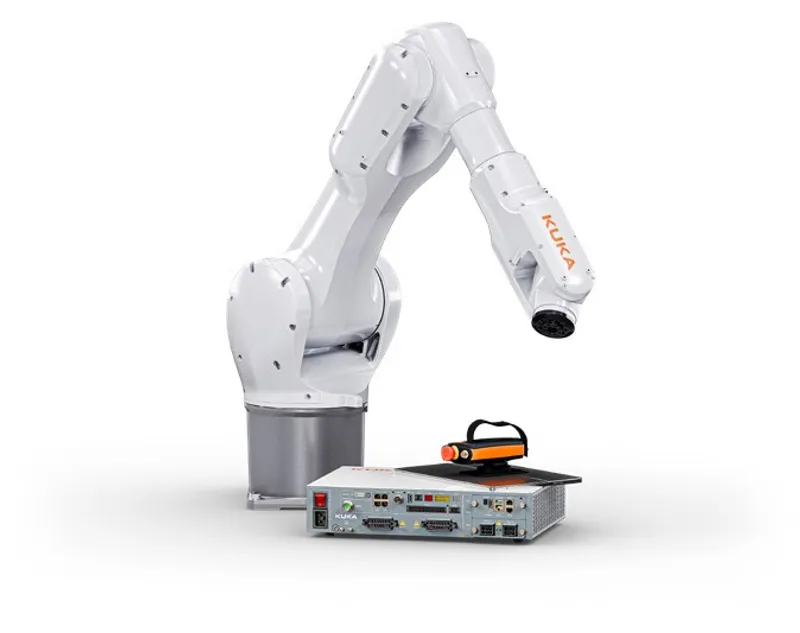

KUKA KR 16 R1100-3 is the flagship of the KR AGILUS ultra line, a compact 16 kg rated / 19.3 kg max payload robot with 1103 mm reach, 0.02 mm repeatability and IP67 whole-machine protection for AI-ready automation.
💲 Price on application
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 16 kg 43th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 1,103 mm 29th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.02 mm 68th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 6
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 89 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- floor, ceiling, wall, angle
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (arm)
Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.
- IP67 71th pct in class
- IP rating (wrist)
Ingress protection at the wrist, often higher than the body for wet/washdown duty.
- IP67 14th pct in class
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- No
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- teach-pendant, offline-programming
- ROS support
Robot Operating System driver availability (none / ROS 1 / ROS 2 / both).
- none
Specifications sourced from KUKA official datasheet ↗. Specs last verified 2026-07-27.
Owner reviews
Real, first-hand feedback from people who run the KUKA KR 16 R1100-3. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the KUKA KR 16 R1100-3? +
The KUKA KR 16 R1100-3 has a maximum payload of 16 kg.
What is the reach of the KUKA KR 16 R1100-3? +
The KUKA KR 16 R1100-3 has a maximum reach of 1,103 mm (1.10 m).
What is the repeatability of the KUKA KR 16 R1100-3? +
The KUKA KR 16 R1100-3 has a pose repeatability of ±0.02 mm (ISO 9283), making it highly accurate for precision work.
How many axes does the KUKA KR 16 R1100-3 have? +
The KUKA KR 16 R1100-3 is a 6-axis articulated arm robot.
What is the KUKA KR 16 R1100-3 used for? +
The KUKA KR 16 R1100-3 is typically used for material-handling, assembly, machine-tending.
What controller does the KUKA KR 16 R1100-3 use? +
The KUKA KR 16 R1100-3 runs on the KR C5 micro-2 controller.
What is the IP rating of the KUKA KR 16 R1100-3? +
The KUKA KR 16 R1100-3 arm carries an IP67 ingress-protection rating.
How much does the KUKA KR 16 R1100-3 cost? +
KUKA KR 16 R1100-3: Price on application. Industrial robots are typically quoted per project through authorized distributors.
