KUKA

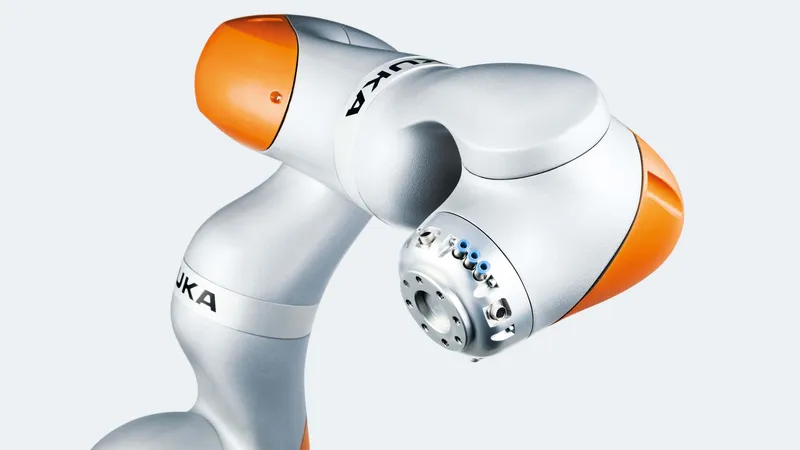

LBR iiwa 7 R800
The first series-produced sensitive cobot — a 7-axis arm with joint torque sensors on every axis, enabling delicate force-controlled assembly and true human-robot collaboration.
💲 Price on application
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 7 kg 35th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 800 mm 18th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.1 mm 0th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 7
- Max TCP speed
Top linear speed of the tool centre point. Higher means faster cycle times.
- 1,000 mm/s 0th pct in class
Motion range & speed
Per-axis travel limits and rotational speeds.
- Max axis speed
Highest rotational speed of the fastest joint. Higher helps short, fast moves.
- 85 °/s 0th pct in class
Motion range and maximum speed per joint.
| Axis | Range | Max speed |
|---|---|---|
| J1 | -170° to 170° | 98 °/s |
| J2 | -120° to 120° | 98 °/s |
| J3 | -170° to 170° | 100 °/s |
| J4 | -120° to 120° | 130 °/s |
| J5 | -170° to 170° | 140 °/s |
| J6 | -120° to 120° | 180 °/s |
| J7 | -175° to 175° | 180 °/s |
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 24 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- floor, ceiling, wall, tilted
- Colour
Standard finish colour.
- #FF6600
Power & controller
Electrical supply and the control cabinet that drives it.
- Power supply
Required input voltage / phase for the controller.
- AC 200–230 V, 50/60 Hz
- Controller
The control cabinet / unit that runs the robot.
- KUKA Sunrise Cabinet
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (arm)
Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.
- IP54 5th pct in class
- IP rating (wrist)
Ingress protection at the wrist, often higher than the body for wet/washdown duty.
- IP54 0th pct in class
- Operating temp
Ambient temperature range for normal operation.
- 10 to 50 °C
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- Yes
- Safety standards
Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).
- ISO 10218-1, ISO/TS 15066, PLd Cat.3
- Collab features
Collaborative safety functions: power-force-limiting, speed-and-separation monitoring, hand-guiding, safety-rated stops.
- power-force-limiting, safety-rated-stop, hand-guiding
- Cert. cobot payload
Payload at which collaborative (force-limited) operation is still certified.
- 7 kg 34th pct in class
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- teach-pendant, lead-through, offline-sim
- Languages
Native robot programming language(s) — e.g. KRL (KUKA), RAPID (ABB), URScript (UR), INFORM (Yaskawa).
- Java (Sunrise)
- ROS support
Robot Operating System driver availability (none / ROS 1 / ROS 2 / both).
- both
- Teach pendant
The handheld programming/jog device supplied.
- smartPAD
- Offline programming
Whether programs can be built and validated offline in a digital twin before deployment.
- Yes
Connectivity & I/O
Signals, fieldbuses and tooling interfaces.
- Fieldbus
Industrial networks supported for PLC/cell integration (PROFINET, EtherNet/IP, EtherCAT, Modbus TCP, CC-Link, etc.).
- PROFINET, EtherCAT

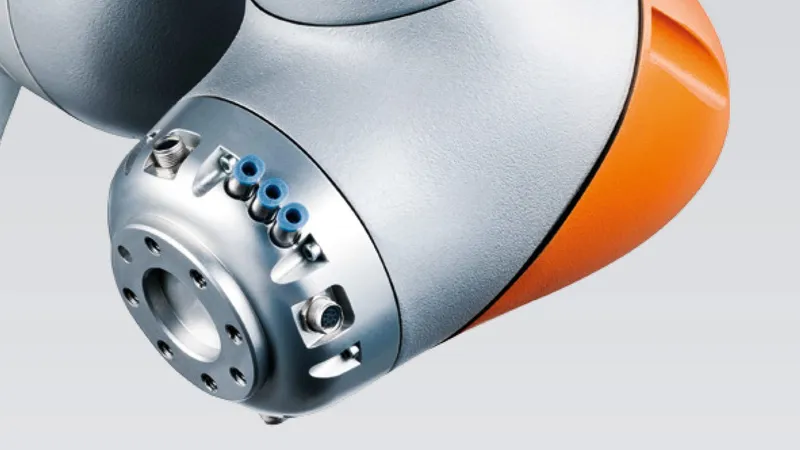

- Tool flange
Mechanical interface at the wrist for mounting tools (ISO 9409-1 pattern).
- ISO 9409-1-63
Safety certifications
- ISO 10218-1 — the primary industrial-robot safety standard covering design and construction requirements
- ISO/TS 15066 — the safety standard for collaborative robots working near people (force and speed limits)
- PLd Cat.3 — high safety-integrity (PLd) with a dual-channel architecture that tolerates one fault without losing the safety function
Specifications sourced from KUKA official datasheet ↗. Specs last verified 2026-07-16.
Owner reviews
Real, first-hand feedback from people who run the KUKA LBR iiwa 7 R800. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the KUKA LBR iiwa 7 R800? +
The KUKA LBR iiwa 7 R800 has a maximum payload of 7 kg.
What is the reach of the KUKA LBR iiwa 7 R800? +
The KUKA LBR iiwa 7 R800 has a maximum reach of 800 mm (0.80 m).
What is the repeatability of the KUKA LBR iiwa 7 R800? +
The KUKA LBR iiwa 7 R800 has a pose repeatability of ±0.1 mm (ISO 9283), making it suitable for precision work.
How many axes does the KUKA LBR iiwa 7 R800 have? +
The KUKA LBR iiwa 7 R800 is a 7-axis collaborative robot.
What is the KUKA LBR iiwa 7 R800 used for? +
The KUKA LBR iiwa 7 R800 is typically used for assembly, machine-tending, inspection, dispensing.
Is the KUKA LBR iiwa 7 R800 a collaborative robot? +
Yes — the KUKA LBR iiwa 7 R800 is a collaborative robot (cobot) designed to work safely alongside people under ISO/TS 15066.
What controller does the KUKA LBR iiwa 7 R800 use? +
The KUKA LBR iiwa 7 R800 runs on the KUKA Sunrise Cabinet controller.
What is the IP rating of the KUKA LBR iiwa 7 R800? +
The KUKA LBR iiwa 7 R800 arm carries an IP54 ingress-protection rating.
How much does the KUKA LBR iiwa 7 R800 cost? +
KUKA LBR iiwa 7 R800: Price on application. Industrial robots are typically quoted per project through authorized distributors.
