OMRON Robotics

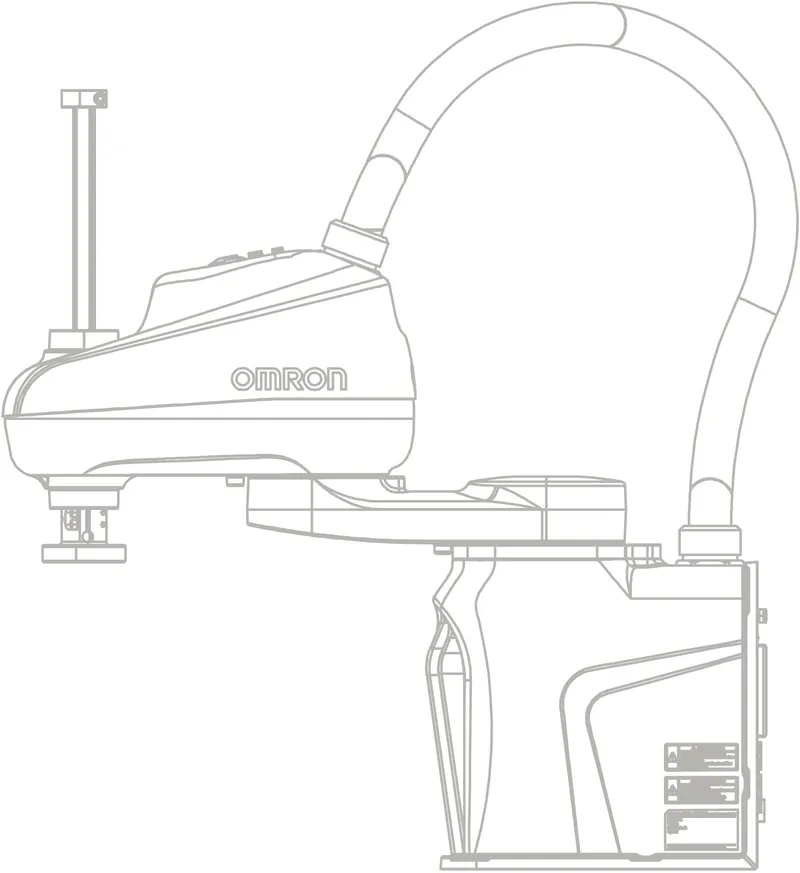

i4-450L
Light-duty 4-axis SCARA robot with 450 mm reach and 5 kg payload, the mid-reach member of the i4L family for compact assembly and material-handling cells.
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 5 kg 26th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 450 mm 22th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.01 mm 59th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 4
- Wrist torque
Allowable torque at the wrist axis — how much twisting force a tool can apply. Higher handles bigger/offset tools.
- 1.1 N·m 0th pct in class
- Wrist inertia
Allowable moment of inertia at the wrist — how much rotating mass it can swing without overload. Higher is more capable.
- 0.05 kg·m² 11th pct in class
Motion range & speed
Per-axis travel limits and rotational speeds.
- Max axis speed
Highest rotational speed of the fastest joint. Higher helps short, fast moves.
- 6,000 °/s 87th pct in class
Motion range and maximum speed per joint.
| Axis | Range | Max speed |
|---|---|---|
| J1 | -136° to 136° | 456 °/s |
| J2 | -148° to 148° | 456 °/s |
| J4 | -360° to 360° | 6000 °/s |
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 16 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- table, wall
Power & controller
Electrical supply and the control cabinet that drives it.
- Power supply
Required input voltage / phase for the controller.
- 24 VDC control / 48 VDC high power
- Controller
The control cabinet / unit that runs the robot.
- NJ501-R Series
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (arm)
Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.
- IP20 0th pct in class
- Operating temp
Ambient temperature range for normal operation.
- 5 to 40 °C
- Humidity
Permissible relative-humidity range (non-condensing).
- 5 to 90 %RH
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- No
- Safety standards
Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).
- ISO 10218-1
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- offline-programming, teach-pendant
- Languages
Native robot programming language(s) — e.g. KRL (KUKA), RAPID (ABB), URScript (UR), INFORM (Yaskawa).
- IEC 61131-3
Connectivity & I/O
Signals, fieldbuses and tooling interfaces.
- Fieldbus
Industrial networks supported for PLC/cell integration (PROFINET, EtherNet/IP, EtherCAT, Modbus TCP, CC-Link, etc.).
- EtherCAT, PROFINET
Safety certifications
- ISO 10218-1 — the primary industrial-robot safety standard covering design and construction requirements
Specifications sourced from OMRON Robotics official datasheet ↗. Specs last verified 2026-08-03.
Owner reviews
Real, first-hand feedback from people who run the OMRON Robotics i4-450L. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the OMRON Robotics i4-450L? +
The OMRON Robotics i4-450L has a maximum payload of 5 kg.
What is the reach of the OMRON Robotics i4-450L? +
The OMRON Robotics i4-450L has a maximum reach of 450 mm (0.45 m).
What is the repeatability of the OMRON Robotics i4-450L? +
The OMRON Robotics i4-450L has a pose repeatability of ±0.01 mm (ISO 9283), making it highly accurate for precision work.
How many axes does the OMRON Robotics i4-450L have? +
The OMRON Robotics i4-450L is a 4-axis scara robot.
What is the OMRON Robotics i4-450L used for? +
The OMRON Robotics i4-450L is typically used for assembly, pick-and-place, material-handling.
What controller does the OMRON Robotics i4-450L use? +
The OMRON Robotics i4-450L runs on the NJ501-R Series controller.
What is the IP rating of the OMRON Robotics i4-450L? +
The OMRON Robotics i4-450L arm carries an IP20 ingress-protection rating.
