OMRON Robotics
i4-750

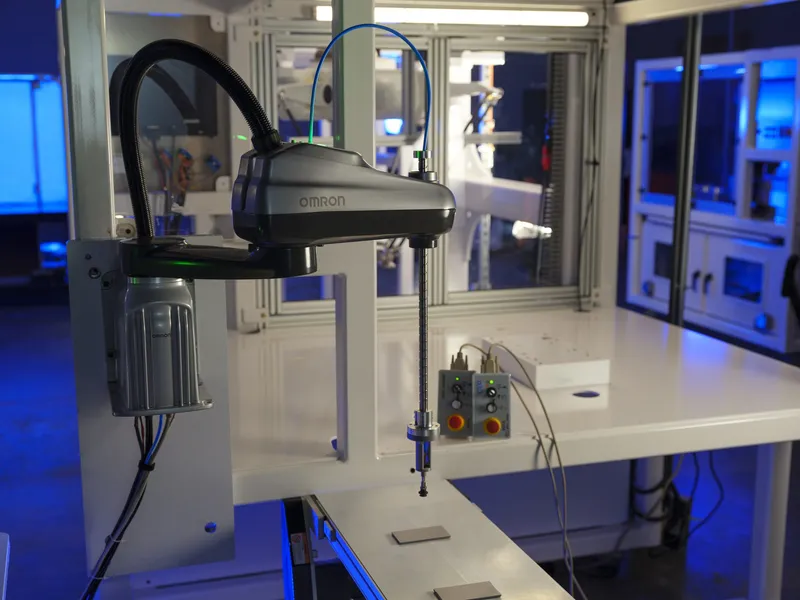

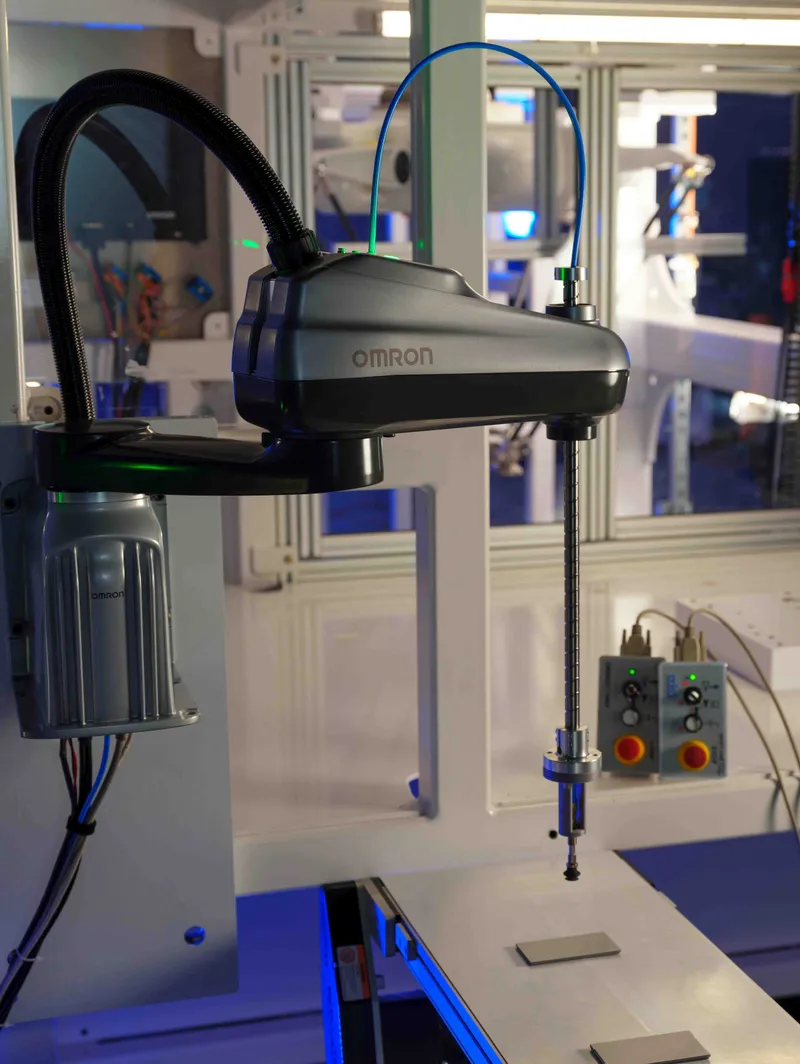

High-speed 4-axis SCARA robot with 750 mm reach and 15 kg payload, the mid-reach member of the i4H family between the 650 mm and 850 mm variants, for precision assembly, dispensing, and pick-and-place.
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 15 kg 74th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 750 mm 67th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.015 mm 43th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 4
- Std cycle time
Time for a standard 25/305/25 mm pick-place move where published. Lower is faster.
- 0.39 s 13th pct in class
- Wrist torque
Allowable torque at the wrist axis — how much twisting force a tool can apply. Higher handles bigger/offset tools.
- 8 N·m 75th pct in class
- Wrist inertia
Allowable moment of inertia at the wrist — how much rotating mass it can swing without overload. Higher is more capable.
- 0.5 kg·m² 78th pct in class
Motion range & speed
Per-axis travel limits and rotational speeds.
- Max axis speed
Highest rotational speed of the fastest joint. Higher helps short, fast moves.
- 2,400 °/s 61th pct in class
Motion range and maximum speed per joint.
| Axis | Range | Max speed |
|---|---|---|
| J1 | -152° to 152° | 450 °/s |
| J2 | -140° to 140° | 720 °/s |
| J4 | -360° to 360° | 2400 °/s |
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 51 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- floor
Power & controller
Electrical supply and the control cabinet that drives it.
- Power supply
Required input voltage / phase for the controller.
- 200-240V AC single-phase
- Controller
The control cabinet / unit that runs the robot.
- Sysmac NJ/NX
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (arm)
Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.
- IP20 0th pct in class
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- No
- Safety standards
Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).
- ISO 10218-1
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- offline-programming, teach-pendant
- Languages
Native robot programming language(s) — e.g. KRL (KUKA), RAPID (ABB), URScript (UR), INFORM (Yaskawa).
- IEC 61131-3
Connectivity & I/O
Signals, fieldbuses and tooling interfaces.
- Fieldbus
Industrial networks supported for PLC/cell integration (PROFINET, EtherNet/IP, EtherCAT, Modbus TCP, CC-Link, etc.).
- EtherCAT, EtherNet/IP, PROFINET
Safety certifications
- ISO 10218-1 — the primary industrial-robot safety standard covering design and construction requirements
Specifications sourced from OMRON Robotics official datasheet ↗. Specs last verified 2026-08-03.
Owner reviews
Real, first-hand feedback from people who run the OMRON Robotics i4-750. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the OMRON Robotics i4-750? +
The OMRON Robotics i4-750 has a maximum payload of 15 kg.
What is the reach of the OMRON Robotics i4-750? +
The OMRON Robotics i4-750 has a maximum reach of 750 mm (0.75 m).
What is the repeatability of the OMRON Robotics i4-750? +
The OMRON Robotics i4-750 has a pose repeatability of ±0.015 mm (ISO 9283), making it highly accurate for precision work.
How many axes does the OMRON Robotics i4-750 have? +
The OMRON Robotics i4-750 is a 4-axis scara robot.
What is the OMRON Robotics i4-750 used for? +

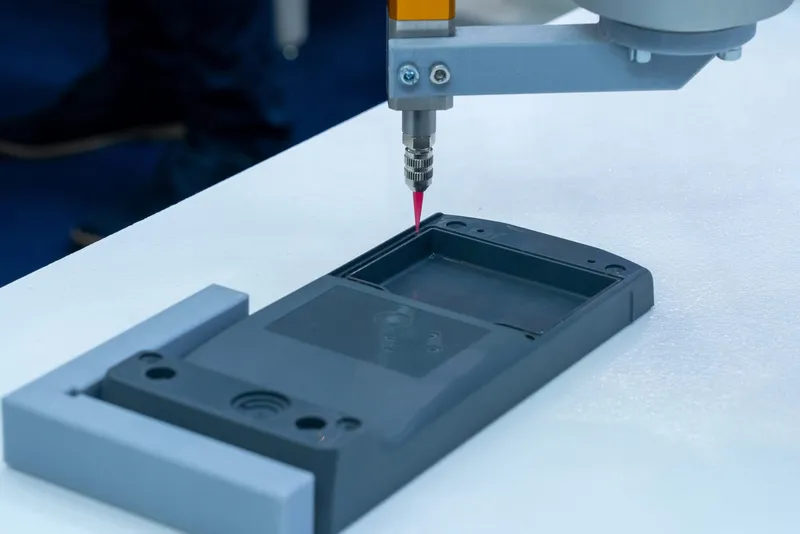

The OMRON Robotics i4-750 is typically used for assembly, pick-and-place, dispensing.
What controller does the OMRON Robotics i4-750 use? +
The OMRON Robotics i4-750 runs on the Sysmac NJ/NX controller.
What is the IP rating of the OMRON Robotics i4-750? +
The OMRON Robotics i4-750 arm carries an IP20 ingress-protection rating.
