ROKAE
NB220-220/2.7

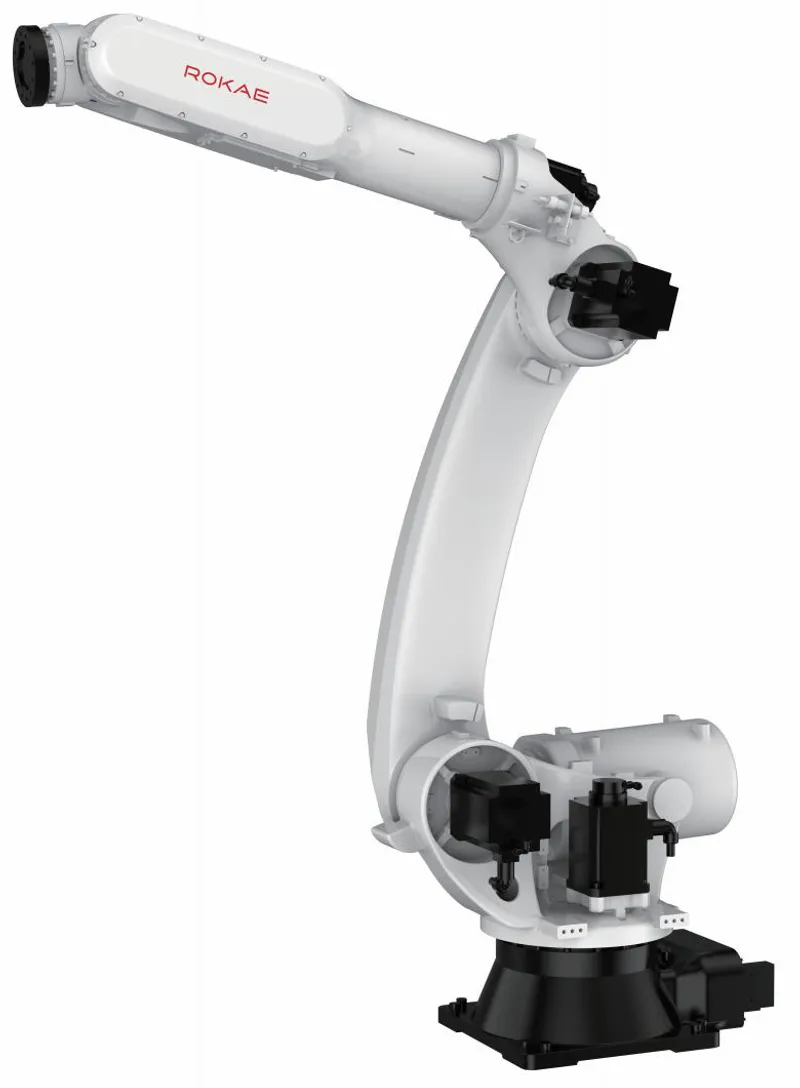

ROKAE NB220-220/2.7, the 220 kg payload / 2705 mm reach variant of the NB220 series, with IP65 whole-machine / IP67 wrist protection. ROKAE's datasheet (2026-08-05) and product page disagree on this variant's repeatability (±0.05 mm vs ±0.07 mm) and on axis 4-6 range and speed, so those figures are not stated here.
💲 Price on application
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 220 kg 81th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 2,705 mm 79th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 6

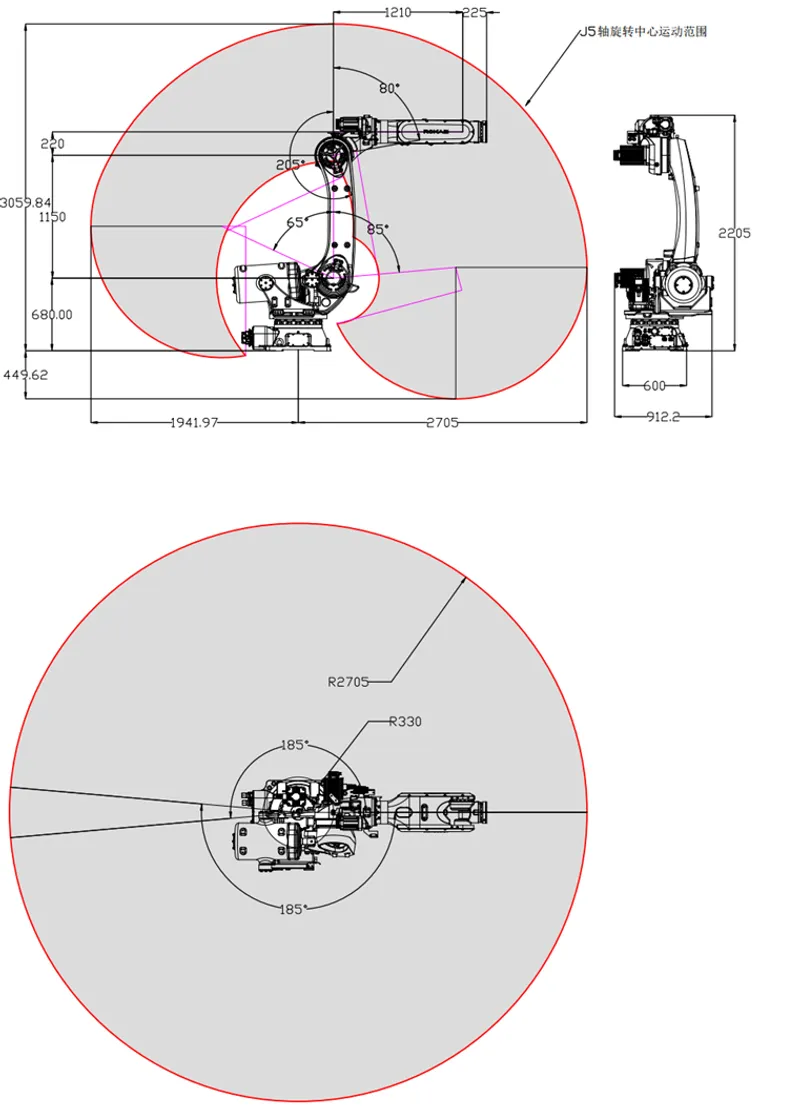

Motion range & speed
Per-axis travel limits and rotational speeds.
Motion range and maximum speed per joint.
| Axis | Range | Max speed |
|---|---|---|
| J1 | -185° to 185° | 120 °/s |
| J2 | -65° to 85° | 110 °/s |
| J3 | -185° to 80° | 110 °/s |
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 1,445 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- floor
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (arm)
Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.
- IP65 47th pct in class
- IP rating (wrist)
Ingress protection at the wrist, often higher than the body for wet/washdown duty.
- IP67 14th pct in class
- Operating temp
Ambient temperature range for normal operation.
- 0 to 45 °C
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- No
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- teach-pendant, offline-programming
- ROS support
Robot Operating System driver availability (none / ROS 1 / ROS 2 / both).
- none
Industrial Robotics Hub — industrialroboticshub.com
Specifications sourced from ROKAE official datasheet ↗. Specs last verified 2026-09-20.
Owner reviews
Real, first-hand feedback from people who run the ROKAE NB220-220/2.7. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the ROKAE NB220-220/2.7? +
The ROKAE NB220-220/2.7 has a maximum payload of 220 kg.
What is the reach of the ROKAE NB220-220/2.7? +
The ROKAE NB220-220/2.7 has a maximum reach of 2,705 mm (2.71 m).
How many axes does the ROKAE NB220-220/2.7 have? +
The ROKAE NB220-220/2.7 is a 6-axis articulated arm robot.
What is the ROKAE NB220-220/2.7 used for? +
The ROKAE NB220-220/2.7 is typically used for material-handling, welding, machine-tending.
What controller does the ROKAE NB220-220/2.7 use? +
The ROKAE NB220-220/2.7 runs on the xCore controller.
What is the IP rating of the ROKAE NB220-220/2.7? +
The ROKAE NB220-220/2.7 arm carries an IP65 ingress-protection rating.
How much does the ROKAE NB220-220/2.7 cost? +
ROKAE NB220-220/2.7: Price on application. Industrial robots are typically quoted per project through authorized distributors.
