ROKAE
NB25-25/1.8

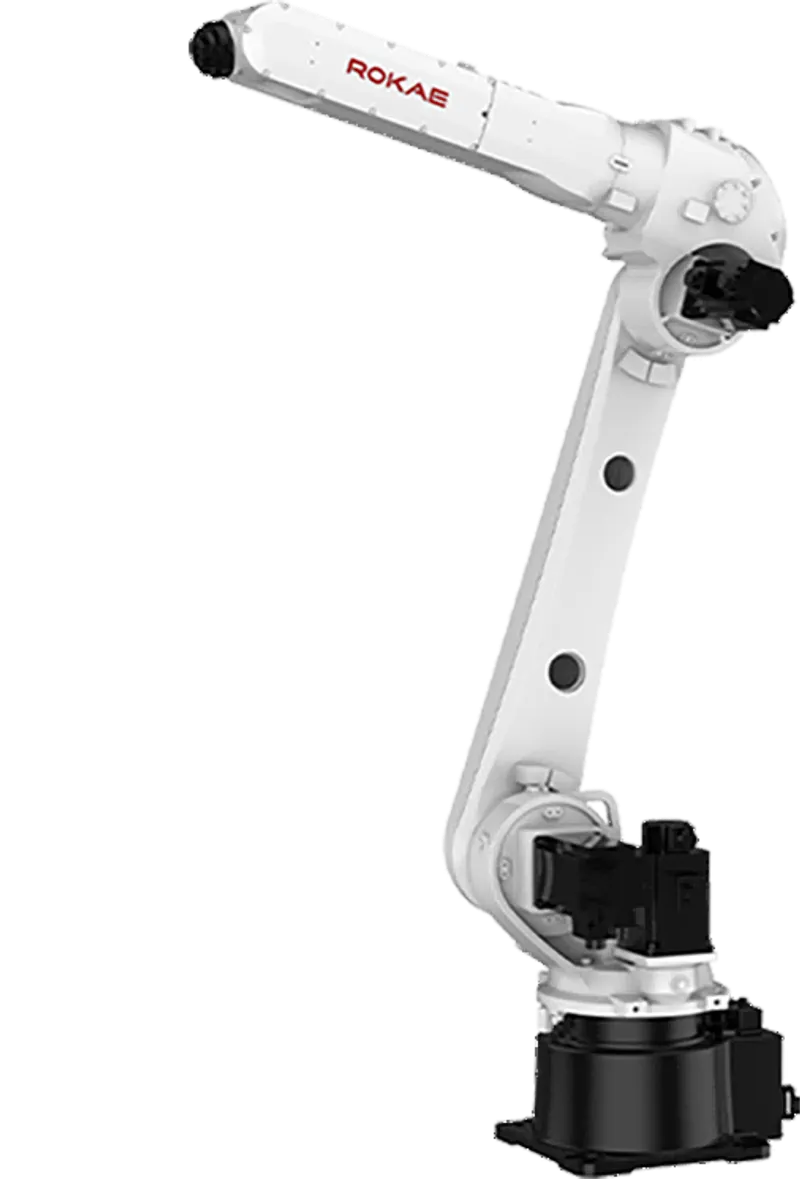

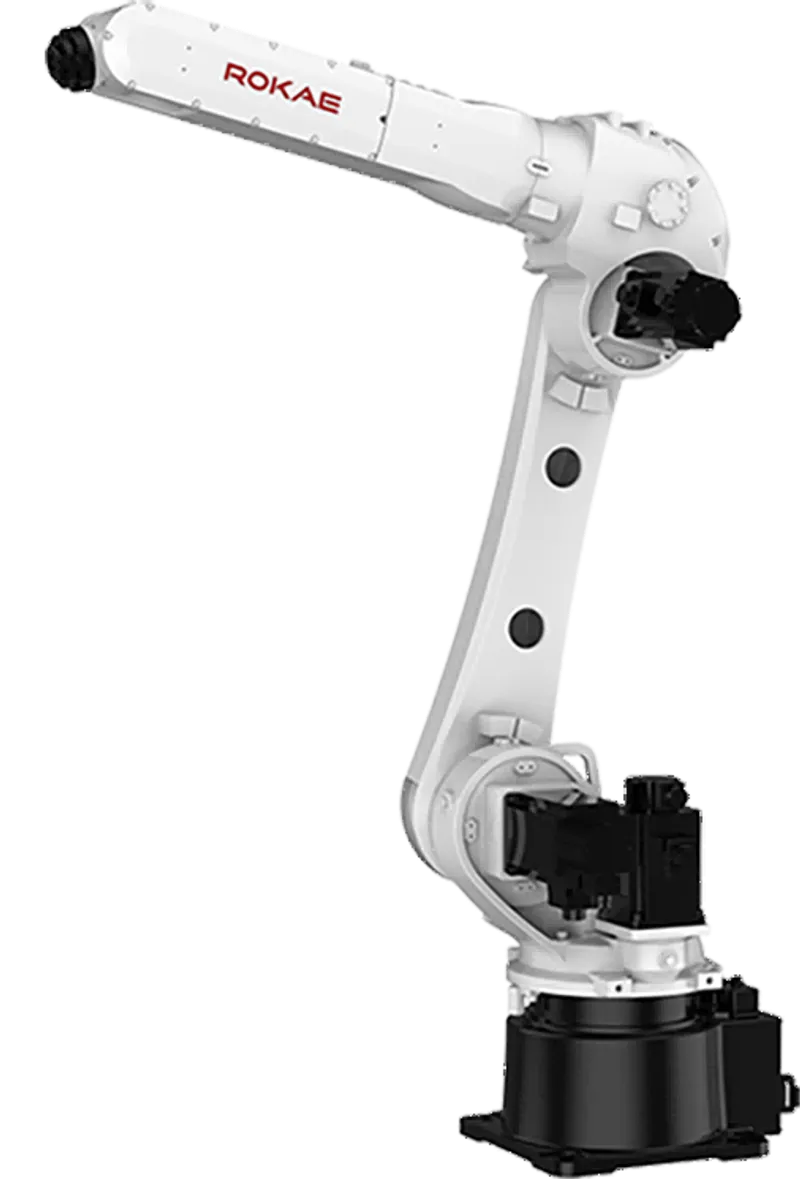

ROKAE NB25-25/1.8 is a 25 kg payload industrial robot with 1813 mm reach and 0.05 mm repeatability, IP65 whole-machine / IP67 wrist protection for high-inertia handling and welding.
💲 Price on application
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 25 kg 50th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 1,813 mm 51th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.05 mm 31th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 6

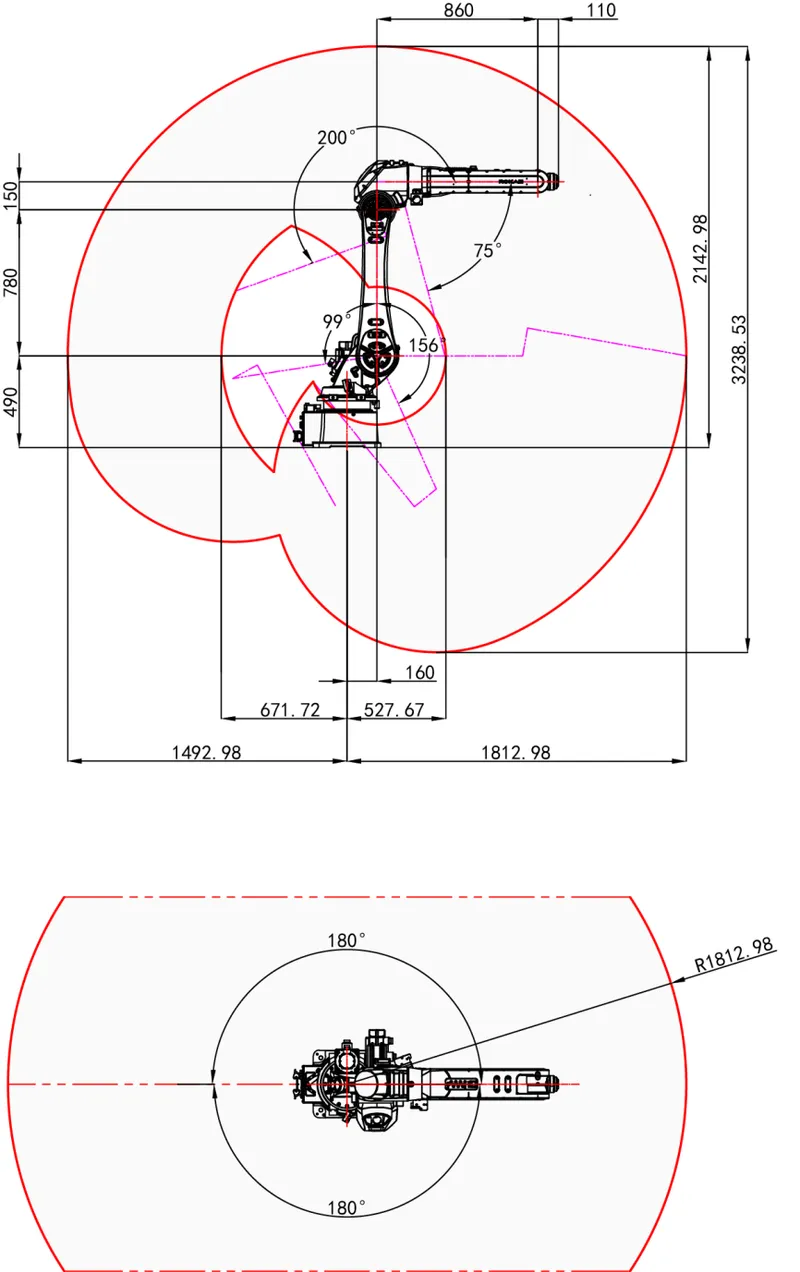

Motion range & speed
Per-axis travel limits and rotational speeds.
Motion range and maximum speed per joint.
| Axis | Range | Max speed |
|---|---|---|
| J1 | -180° to 180° | 204 °/s |
| J2 | -99° to 156° | 186 °/s |
| J3 | -200° to 75° | 182 °/s |
| J4 | -180° to 180° | 492 °/s |
| J5 | -135° to 135° | 450 °/s |
| J6 | -360° to 360° | 705 °/s |
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 256 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- floor
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (arm)
Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.
- IP65 48th pct in class
- IP rating (wrist)
Ingress protection at the wrist, often higher than the body for wet/washdown duty.
- IP67 14th pct in class
- Operating temp
Ambient temperature range for normal operation.
- 0 to 40 °C
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- No
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- teach-pendant, offline-programming
- ROS support
Robot Operating System driver availability (none / ROS 1 / ROS 2 / both).
- none
Specifications sourced from ROKAE official datasheet ↗. Specs last verified 2026-07-27.
Owner reviews
Real, first-hand feedback from people who run the ROKAE NB25-25/1.8. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the ROKAE NB25-25/1.8? +
The ROKAE NB25-25/1.8 has a maximum payload of 25 kg.
What is the reach of the ROKAE NB25-25/1.8? +
The ROKAE NB25-25/1.8 has a maximum reach of 1,813 mm (1.81 m).
What is the repeatability of the ROKAE NB25-25/1.8? +
The ROKAE NB25-25/1.8 has a pose repeatability of ±0.05 mm (ISO 9283), making it highly accurate for precision work.
How many axes does the ROKAE NB25-25/1.8 have? +
The ROKAE NB25-25/1.8 is a 6-axis articulated arm robot.
What is the ROKAE NB25-25/1.8 used for? +
The ROKAE NB25-25/1.8 is typically used for material-handling, welding, machine-tending.
What controller does the ROKAE NB25-25/1.8 use? +
The ROKAE NB25-25/1.8 runs on the xCore controller.
What is the IP rating of the ROKAE NB25-25/1.8? +
The ROKAE NB25-25/1.8 arm carries an IP65 ingress-protection rating.
How much does the ROKAE NB25-25/1.8 cost? +
ROKAE NB25-25/1.8: Price on application. Industrial robots are typically quoted per project through authorized distributors.
