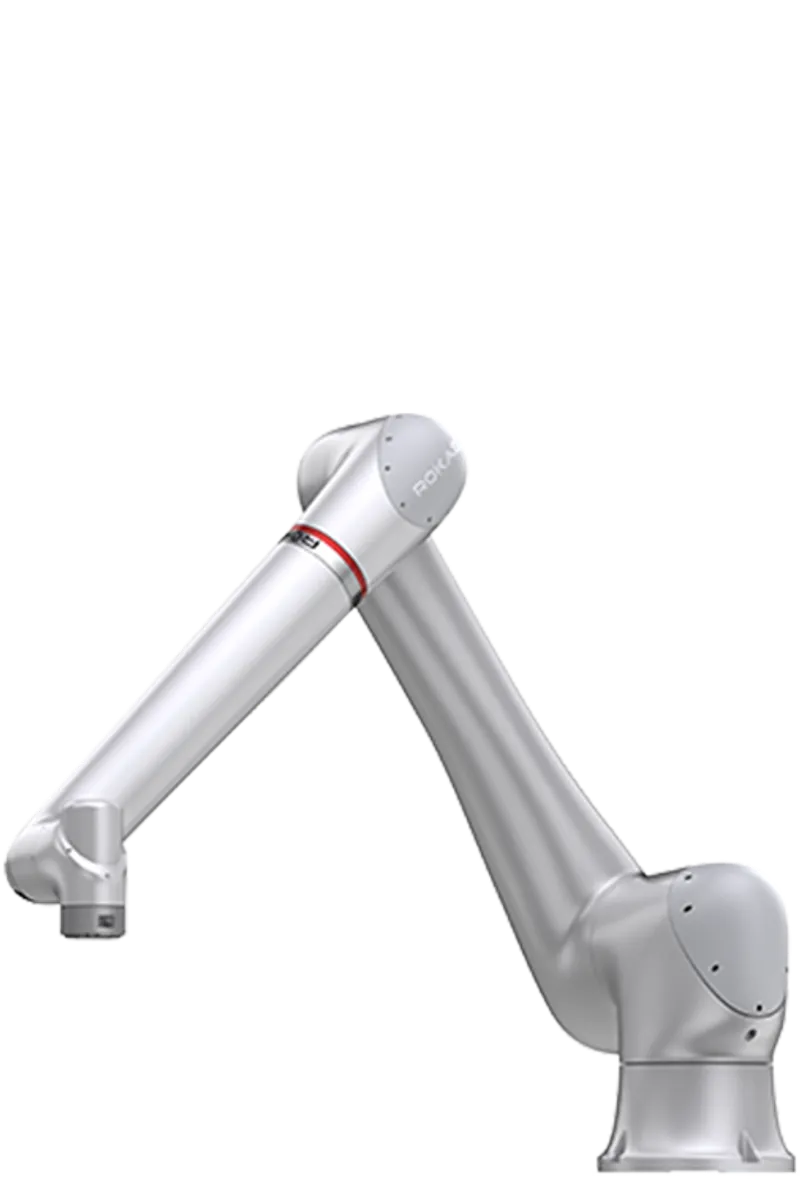

xMate CR35

The xMate CR35 is a heavy-payload collaborative robot offering 35 kg capacity at a 2246 mm reach with IP67 protection for palletizing and welding tasks.

Partial · 39%

Payload

35 kg

Reach

2,246 mm

Repeatability

±0.05 mm

💲 Price on application

Full specifications

Performance

How much it lifts, how far it reaches, how precisely it repeats.

Payload Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.: 35 kg

95th pct in class
Reach Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.: 2,246 mm

99th pct in class
Repeatability How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.: 0.05 mm

9th pct in class
Axes (DOF) Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.: 6

Physical

Size, mass and how it mounts.

Robot weight Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.: 165 kg
Mounting Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).: floor, ceiling, wall

Environment

Conditions it can operate in — dust, water, temperature, cleanliness.

IP rating (arm) Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.: IP67

76th pct in class

Safety

Standards met and collaborative-operation capability.

Collaborative Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).: Yes
Safety standards Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).: ISO 10218-1, ISO/TS 15066, PLd Cat.3
Cert. cobot payload Payload at which collaborative (force-limited) operation is still certified.: 35 kg

95th pct in class

Control & software

Programming, languages and ecosystem.

Programming How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.: hand-guiding, graphical
ROS support Robot Operating System driver availability (none / ROS 1 / ROS 2 / both).: none
Offline programming Whether programs can be built and validated offline in a digital twin before deployment.: Yes
