Siasun
GCR10

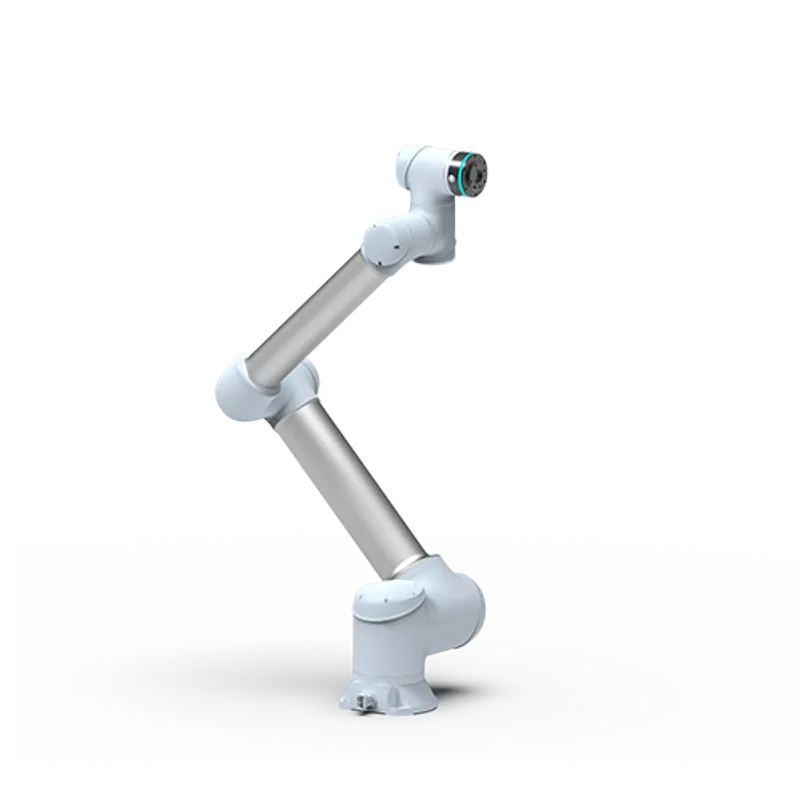

Siasun 10 kg payload, 1300 mm reach 6-axis collaborative robot with 3.8 m/s TCP speed and 16 TUV SUD certified safety features.
Payload
10 kg
Reach
1,300 mm
Repeatability
±0.03 mm
💲 Price on application
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 10 kg 48th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 1,300 mm 61th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.03 mm 53th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 6
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (arm)
Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.
- IP54 5th pct in class
- IP rating (wrist)
Ingress protection at the wrist, often higher than the body for wet/washdown duty.
- IP65 0th pct in class
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- Yes
- Safety standards
Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).
- IEC 61508
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- teach-pendant, offline-sim
- ROS support
Robot Operating System driver availability (none / ROS 1 / ROS 2 / both).
- none
Specifications sourced from Siasun official datasheet ↗. Specs last verified 2026-06-26.
Frequently asked questions
What is the payload of the Siasun GCR10? +
The Siasun GCR10 has a maximum payload of 10 kg.
What is the reach of the Siasun GCR10? +
The Siasun GCR10 has a maximum reach of 1,300 mm (1.30 m).
What is the repeatability of the Siasun GCR10? +
The Siasun GCR10 has a pose repeatability of ±0.03 mm (ISO 9283), making it highly accurate for precision work.
How many axes does the Siasun GCR10 have? +
The Siasun GCR10 is a 6-axis collaborative robot.
What is the Siasun GCR10 used for? +

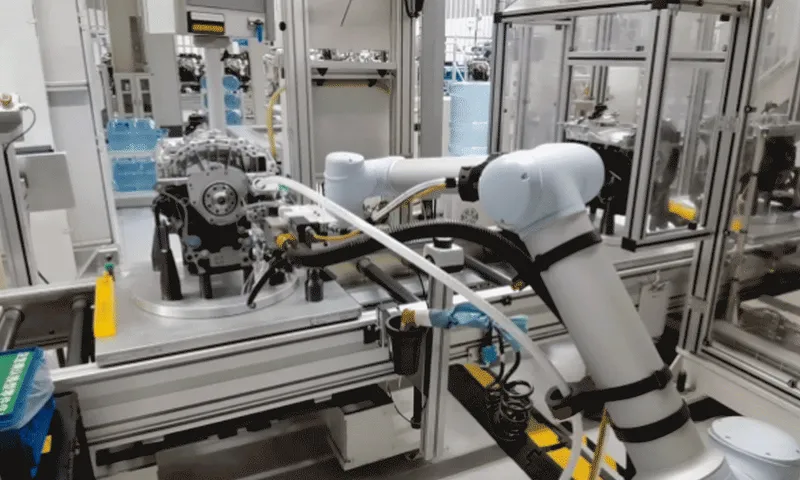

The Siasun GCR10 is typically used for assembly, material-handling, machine-tending.
Is the Siasun GCR10 a collaborative robot? +
Yes — the Siasun GCR10 is a collaborative robot (cobot) designed to work safely alongside people under ISO/TS 15066.
What is the IP rating of the Siasun GCR10? +
The Siasun GCR10 arm carries an IP54 ingress-protection rating.
How much does the Siasun GCR10 cost? +
Siasun GCR10: Price on application. Industrial robots are typically quoted per project through authorized distributors.
