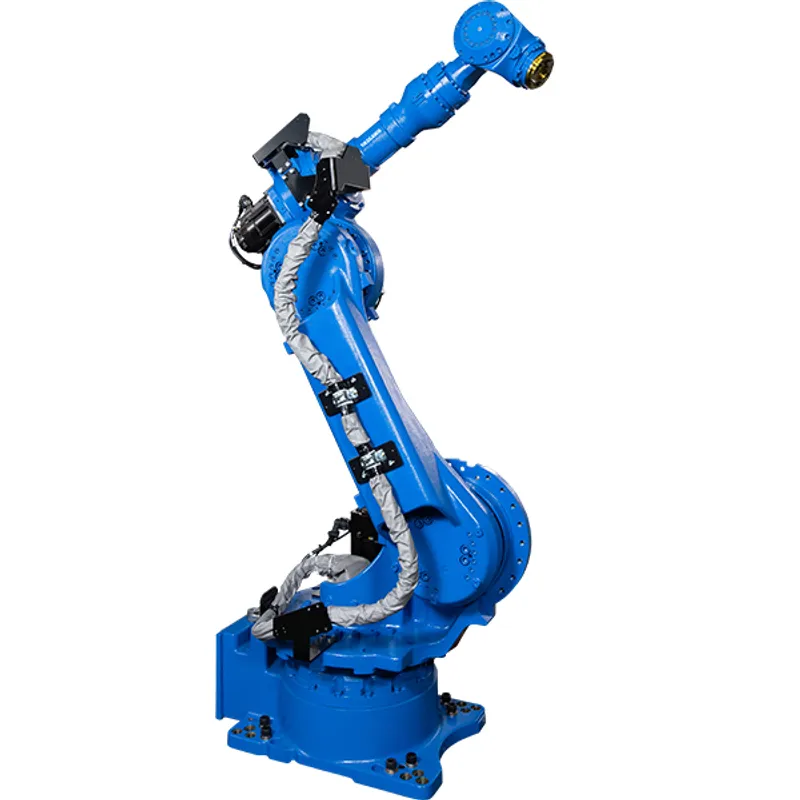

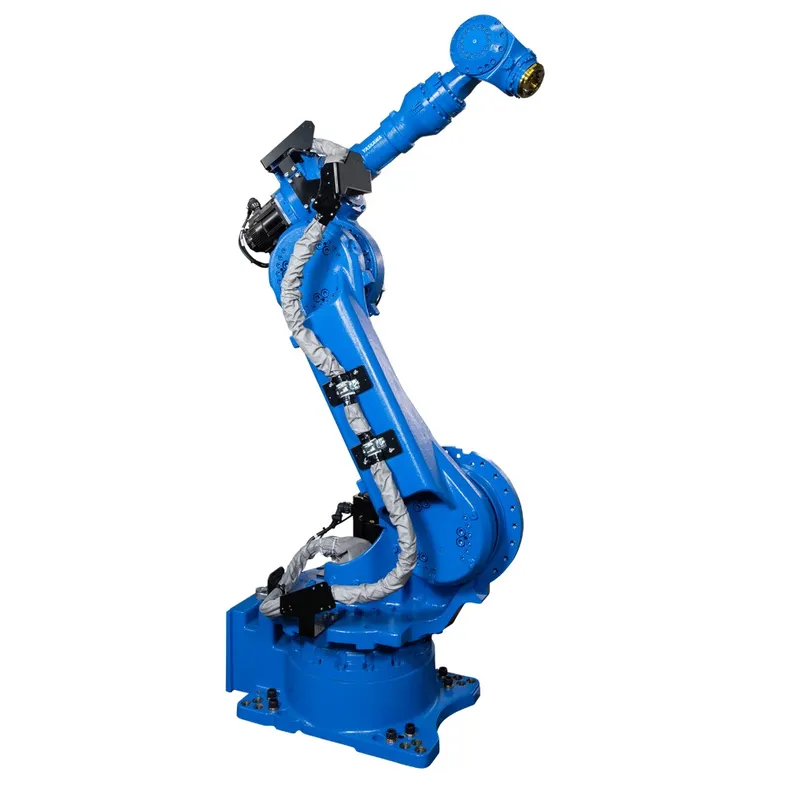

Yaskawa Motoman
GA50
High-path-accuracy arm built for remote laser welding and dispensing - 0.015 mm repeatability, the tightest in Yaskawa’s industrial range, on a 50 kg payload and 2,038 mm horizontal reach, with high-rigidity drives sized to carry a laser head.
💲 Price on application
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 50 kg 60th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 2,038 mm 56th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.015 mm 93th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 6
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 855 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- floor
Power & controller
Electrical supply and the control cabinet that drives it.
- Power supply
Required input voltage / phase for the controller.
- 380-480 VAC
- Power rating
Rated supply capacity the installation must provide.
- 4.5 kVA
- Controller
The control cabinet / unit that runs the robot.
- YRC1000
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- No
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- teach-pendant, offline-sim
- Languages
Native robot programming language(s) — e.g. KRL (KUKA), RAPID (ABB), URScript (UR), INFORM (Yaskawa).
- INFORM
- Offline programming
Whether programs can be built and validated offline in a digital twin before deployment.
- Yes

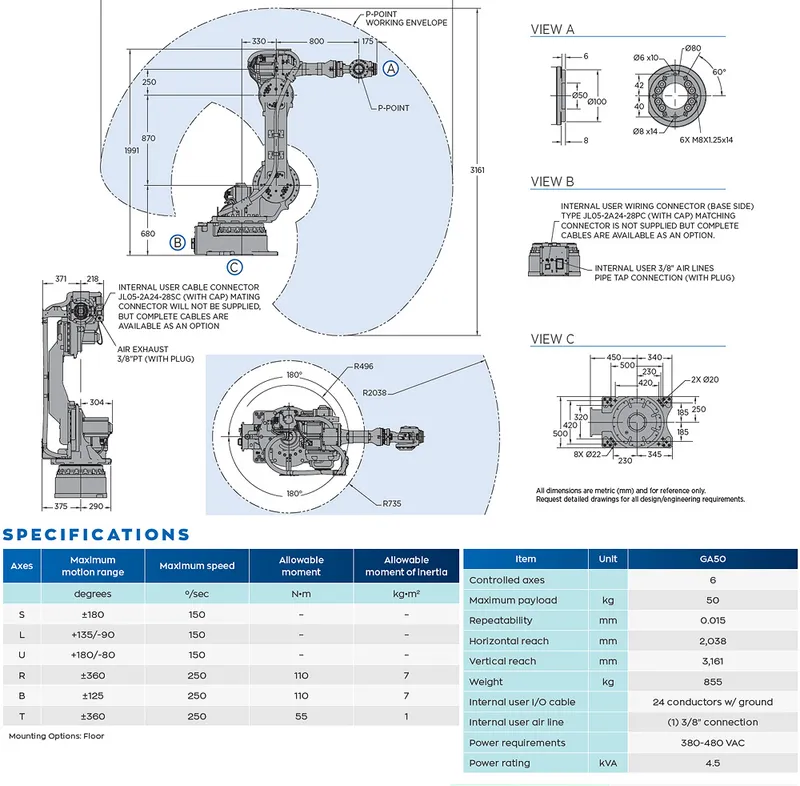

Specifications sourced from Yaskawa Motoman official datasheet ↗. Specs last verified 2026-08-06.
Owner reviews
Real, first-hand feedback from people who run the Yaskawa Motoman GA50. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the Yaskawa Motoman GA50? +
The Yaskawa Motoman GA50 has a maximum payload of 50 kg.
What is the reach of the Yaskawa Motoman GA50? +
The Yaskawa Motoman GA50 has a maximum reach of 2,038 mm (2.04 m).
What is the repeatability of the Yaskawa Motoman GA50? +
The Yaskawa Motoman GA50 has a pose repeatability of ±0.015 mm (ISO 9283), making it highly accurate for precision work.
How many axes does the Yaskawa Motoman GA50 have? +
The Yaskawa Motoman GA50 is a 6-axis articulated arm robot.
What is the Yaskawa Motoman GA50 used for? +
The Yaskawa Motoman GA50 is typically used for welding, dispensing, material-removal, cutting.
What controller does the Yaskawa Motoman GA50 use? +
The Yaskawa Motoman GA50 runs on the YRC1000 controller.
How much does the Yaskawa Motoman GA50 cost? +
Yaskawa Motoman GA50: Price on application. Industrial robots are typically quoted per project through authorized distributors.
