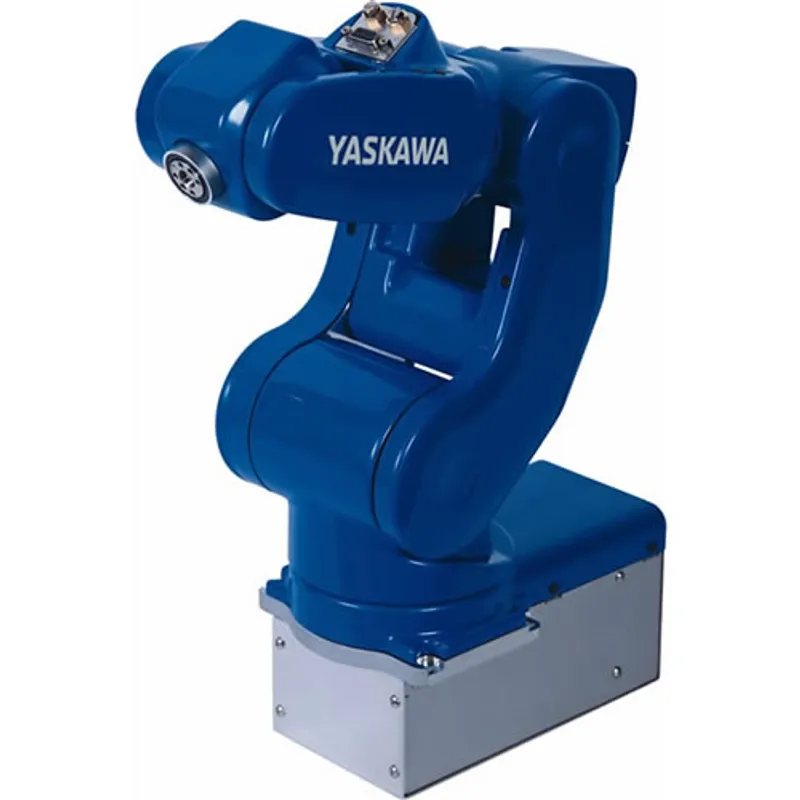

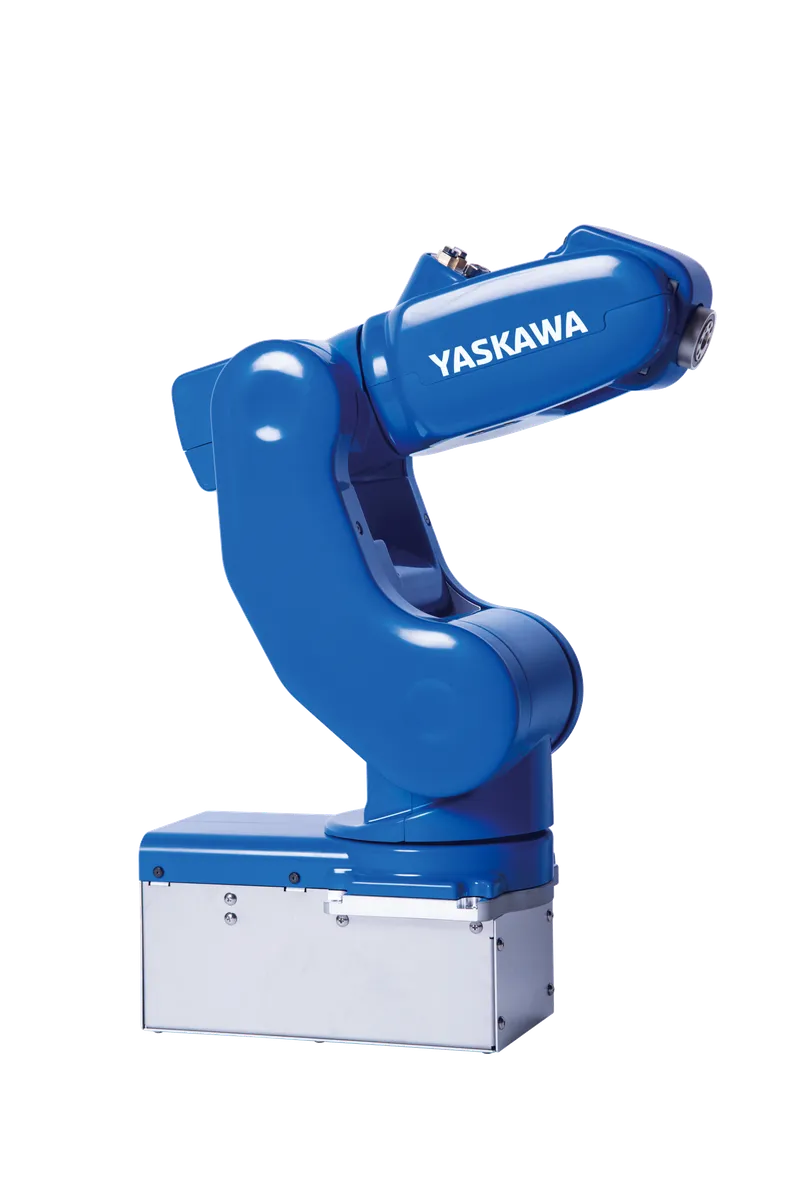

Yaskawa Motoman
MotoMINI
Ultra-compact 0.5 kg six-axis robot weighing just 7 kg with 350 mm reach and ±0.02 mm repeatability — the smallest Motoman robot, designed for high-speed small-part assembly, dispensing and laboratory automation.

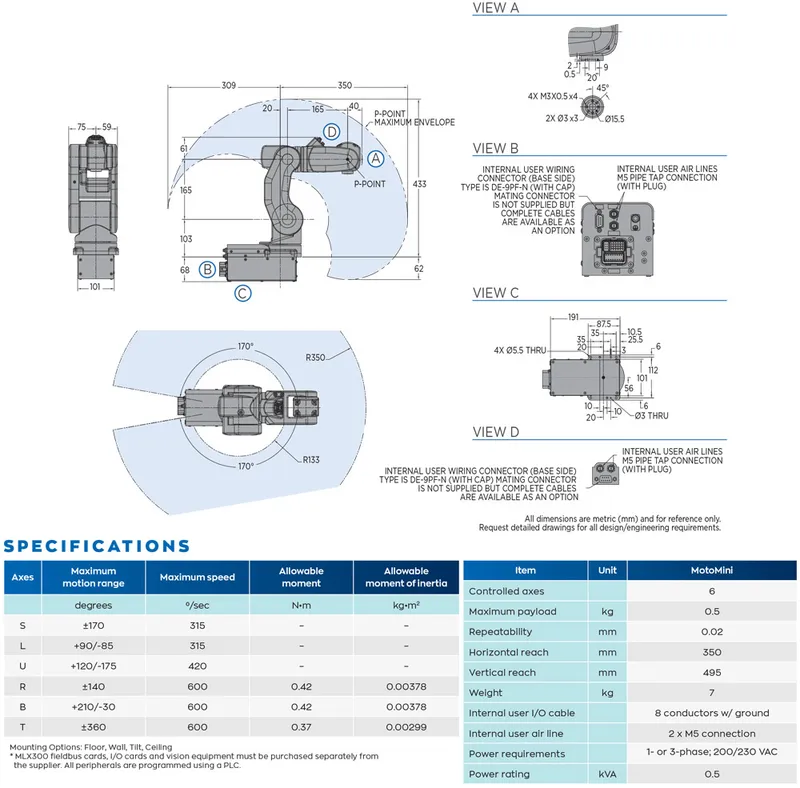

Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 0.5 kg 0th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 350 mm 0th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.02 mm 68th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 6
- Wrist torque
Allowable torque at the wrist axis — how much twisting force a tool can apply. Higher handles bigger/offset tools.
- 0.4 N·m 0th pct in class
- Wrist inertia
Allowable moment of inertia at the wrist — how much rotating mass it can swing without overload. Higher is more capable.
- 0 kg·m² 0th pct in class
Motion range & speed
Per-axis travel limits and rotational speeds.
- Max axis speed
Highest rotational speed of the fastest joint. Higher helps short, fast moves.
- 1,000 °/s 94th pct in class
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 7 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- floor, ceiling, wall, tilted
- Colour
Standard finish colour.
- Blue
Power & controller
Electrical supply and the control cabinet that drives it.
- Power supply
Required input voltage / phase for the controller.
- 1- or 3-phase 200/230V AC 50/60Hz
- Power draw
Typical operating power consumption. Lower is more efficient.
- 500 W 75th pct in class
- Power rating
Rated supply capacity the installation must provide.
- 0.5 kVA
- Controller
The control cabinet / unit that runs the robot.
- YRC1000micro
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (arm)
Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.
- IP54 19th pct in class
- IP rating (wrist)
Ingress protection at the wrist, often higher than the body for wet/washdown duty.
- IP54 1th pct in class
- Operating temp
Ambient temperature range for normal operation.
- 0 to 45 °C
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- No
- Safety standards
Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).
- ISO 10218-1
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- teach-pendant, offline-programming
- Languages
Native robot programming language(s) — e.g. KRL (KUKA), RAPID (ABB), URScript (UR), INFORM (Yaskawa).
- INFORM
- ROS support
Robot Operating System driver availability (none / ROS 1 / ROS 2 / both).
- ros1
- Teach pendant
The handheld programming/jog device supplied.
- Smart Pendant
Connectivity & I/O
Signals, fieldbuses and tooling interfaces.
- Fieldbus
Industrial networks supported for PLC/cell integration (PROFINET, EtherNet/IP, EtherCAT, Modbus TCP, CC-Link, etc.).
- PROFINET, EtherNet/IP, EtherCAT
- Digital I/O
Built-in digital inputs/outputs for grippers, sensors and signalling.
- —
Industrial Robotics Hub — industrialroboticshub.com
Safety certifications
- ISO 10218-1 — the primary industrial-robot safety standard covering design and construction requirements
Specifications sourced from Yaskawa Motoman official datasheet ↗. Specs last verified 2026-06-23.
Owner reviews
Real, first-hand feedback from people who run the Yaskawa Motoman MotoMINI. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the Yaskawa Motoman MotoMINI? +
The Yaskawa Motoman MotoMINI has a maximum payload of 0.5 kg.
What is the reach of the Yaskawa Motoman MotoMINI? +
The Yaskawa Motoman MotoMINI has a maximum reach of 350 mm (0.35 m).
What is the repeatability of the Yaskawa Motoman MotoMINI? +
The Yaskawa Motoman MotoMINI has a pose repeatability of ±0.02 mm (ISO 9283), making it highly accurate for precision work.
How many axes does the Yaskawa Motoman MotoMINI have? +
The Yaskawa Motoman MotoMINI is a 6-axis articulated arm robot.
What is the Yaskawa Motoman MotoMINI used for? +
The Yaskawa Motoman MotoMINI is typically used for assembly, dispensing, pick-and-place, inspection, laboratory-automation.
What controller does the Yaskawa Motoman MotoMINI use? +
The Yaskawa Motoman MotoMINI runs on the YRC1000micro controller.
What is the IP rating of the Yaskawa Motoman MotoMINI? +
The Yaskawa Motoman MotoMINI arm carries an IP54 ingress-protection rating.
