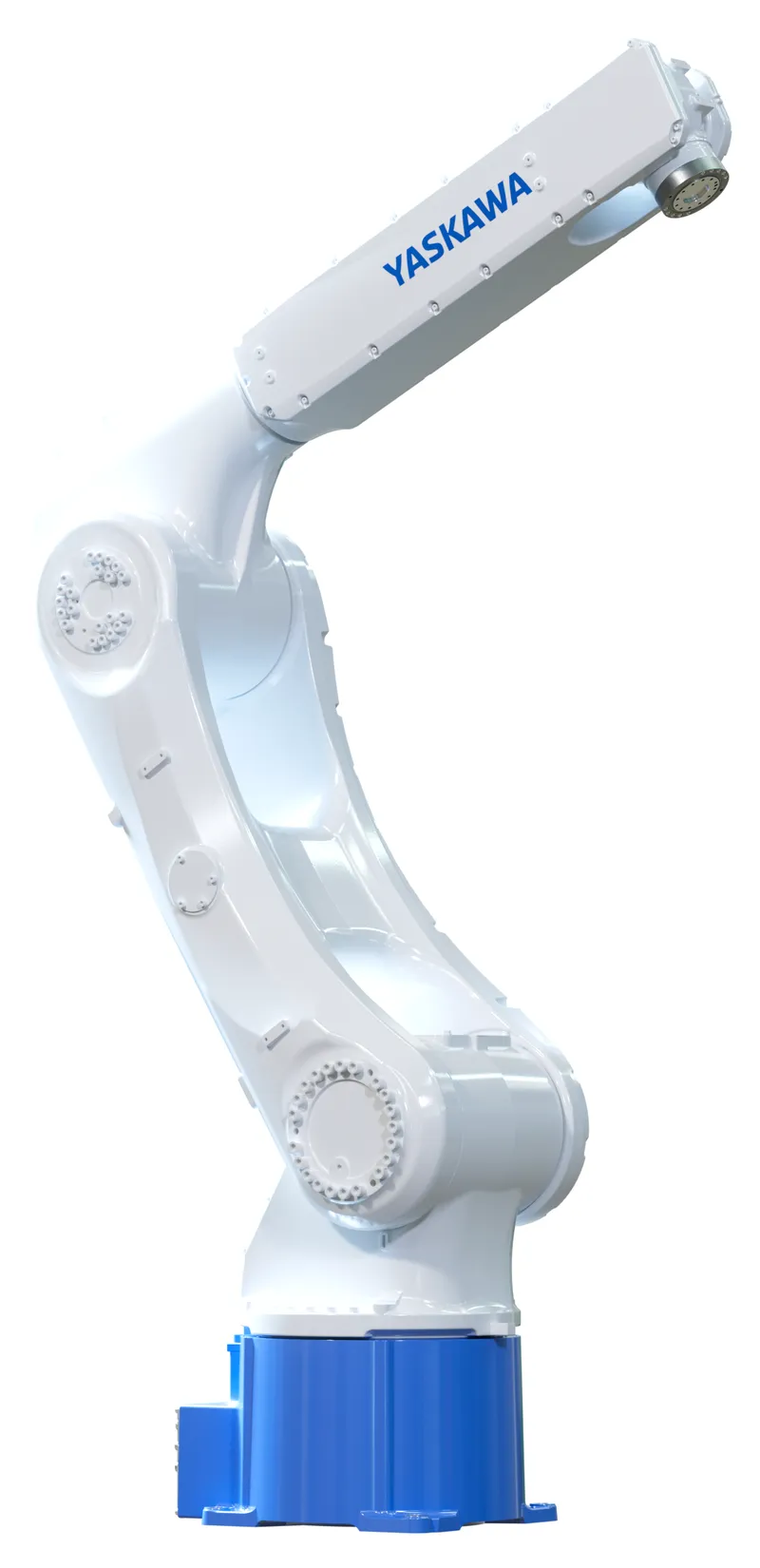

Yaskawa Motoman
NEX35
The heaviest-payload member of Yaskawa's next-generation NEXT robot line — 35 kg payload, 2063 mm reach and 0.04 mm repeatability with adaptive sensor integration, built on the YNX1000 controller for higher-payload assembly and material transfer.

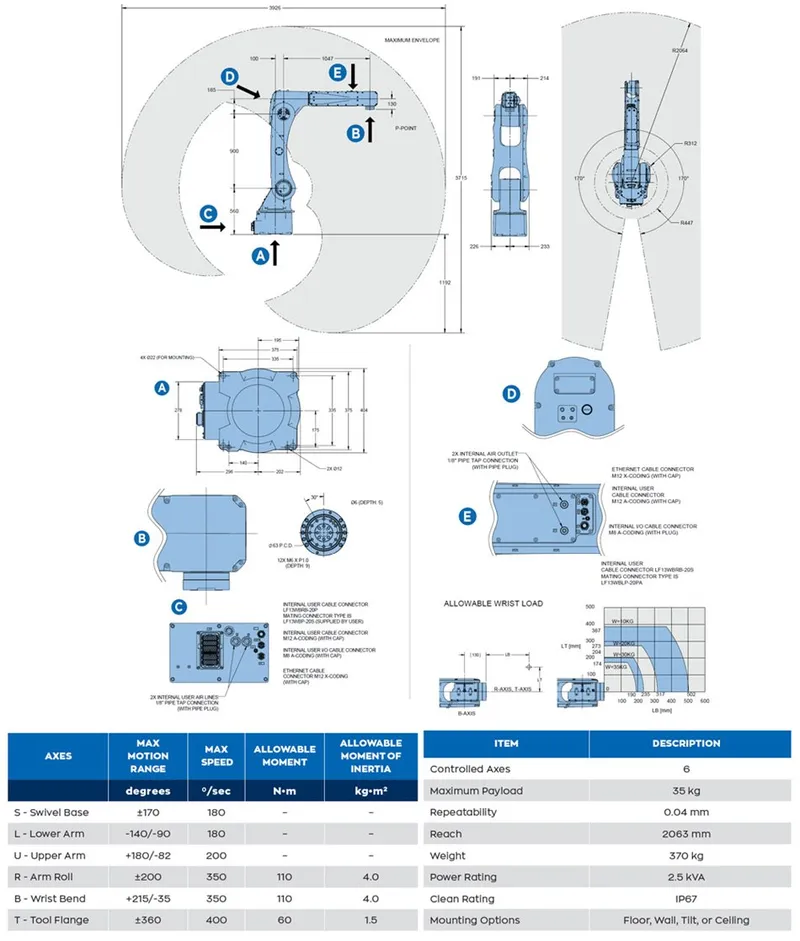

Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 35 kg 57th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 2,063 mm 59th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.04 mm 43th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 6
Power & controller
Electrical supply and the control cabinet that drives it.
- Controller
The control cabinet / unit that runs the robot.
- YNX1000
Industrial Robotics Hub — industrialroboticshub.com
Specifications sourced from Yaskawa Motoman official datasheet ↗. Specs last verified 2026-08-31.
Owner reviews
Real, first-hand feedback from people who run the Yaskawa Motoman NEX35. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the Yaskawa Motoman NEX35? +
The Yaskawa Motoman NEX35 has a maximum payload of 35 kg.
What is the reach of the Yaskawa Motoman NEX35? +
The Yaskawa Motoman NEX35 has a maximum reach of 2,063 mm (2.06 m).
What is the repeatability of the Yaskawa Motoman NEX35? +
The Yaskawa Motoman NEX35 has a pose repeatability of ±0.04 mm (ISO 9283), making it highly accurate for precision work.
How many axes does the Yaskawa Motoman NEX35 have? +
The Yaskawa Motoman NEX35 is a 6-axis articulated arm robot.
What is the Yaskawa Motoman NEX35 used for? +
The Yaskawa Motoman NEX35 is typically used for assembly, packaging, material-handling.
What controller does the Yaskawa Motoman NEX35 use? +
The Yaskawa Motoman NEX35 runs on the YNX1000 controller.
