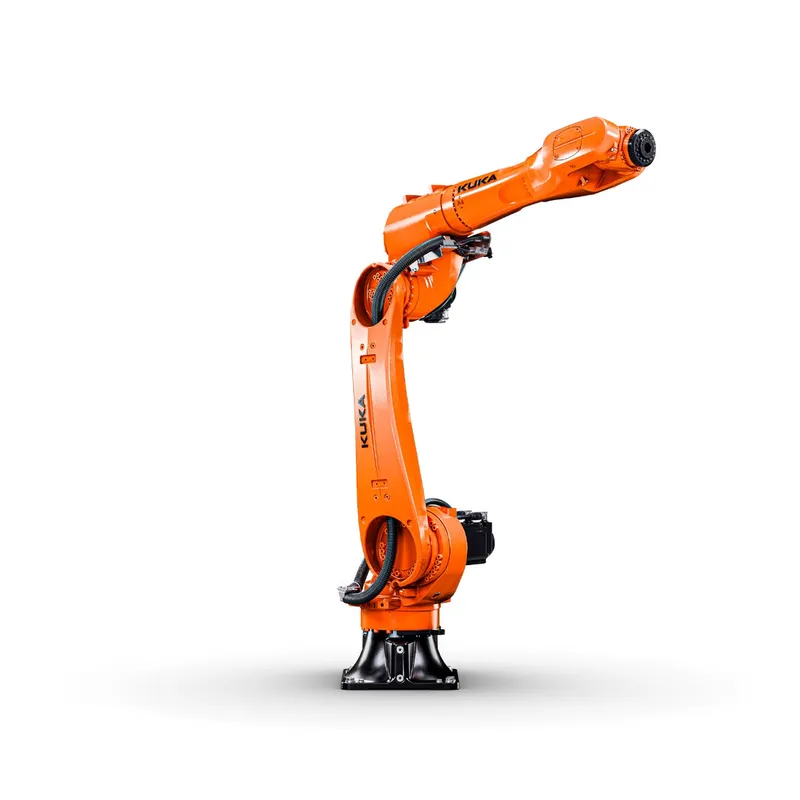

KUKA
KR 35 R1840-3
Flagship of KUKA's new-generation KR CYBERTECH line, extending the family into the 25-35 kg payload range with a 1840 mm reach, 0.03 mm repeatability and an IP67-protected central wrist for high-force handling and testing applications.
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 35 kg 57th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 1,840 mm 53th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.03 mm 51th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 6
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 237 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- floor, ceiling, wall, angle
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (wrist)
Ingress protection at the wrist, often higher than the body for wet/washdown duty.
- IP67 14th pct in class
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- No
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- teach-pendant, offline-programming
- Teach pendant
The handheld programming/jog device supplied.
- KUKA smartPLUG
Specifications sourced from KUKA official datasheet ↗. Specs last verified 2026-08-03.
Owner reviews
Real, first-hand feedback from people who run the KUKA KR 35 R1840-3. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the KUKA KR 35 R1840-3? +
The KUKA KR 35 R1840-3 has a maximum payload of 35 kg.
What is the reach of the KUKA KR 35 R1840-3? +
The KUKA KR 35 R1840-3 has a maximum reach of 1,840 mm (1.84 m).
What is the repeatability of the KUKA KR 35 R1840-3? +
The KUKA KR 35 R1840-3 has a pose repeatability of ±0.03 mm (ISO 9283), making it highly accurate for precision work.
How many axes does the KUKA KR 35 R1840-3 have? +
The KUKA KR 35 R1840-3 is a 6-axis articulated arm robot.
What is the KUKA KR 35 R1840-3 used for? +
The KUKA KR 35 R1840-3 is typically used for material-handling, pick-and-place, inspection, machine-tending.
What controller does the KUKA KR 35 R1840-3 use? +
The KUKA KR 35 R1840-3 runs on the KR C5 slim (iiQKA.OS2) controller.
