ABB Robotics

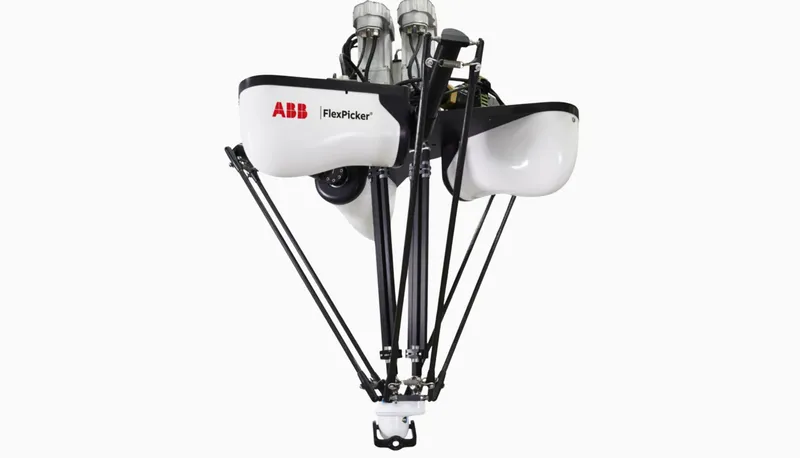

IRB 365-1.5/1300
A 5-axis delta robot adding reorientation flexibility for lightweight products — picks, reorients and places 1 kg product at up to 120 picks/minute for secondary packaging, bottle unscrambling and small-parcel sorting.
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 1.5 kg 20th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 1,300 mm 60th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.05 mm 60th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 5
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 86 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- ceiling
Power & controller
Electrical supply and the control cabinet that drives it.
- Controller
The control cabinet / unit that runs the robot.
- OmniCore C30
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (arm)
Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.
- IP54 11th pct in class
- Operating temp
Ambient temperature range for normal operation.
- 0 to 45 °C
- Humidity
Permissible relative-humidity range (non-condensing).
- ≤ 90 %RH
- Noise level
Operating sound pressure level. Lower is quieter.
- 59 dB(A) 67th pct in class
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- No
Specifications sourced from ABB Robotics official datasheet ↗. Specs last verified 2026-07-13.
Owner reviews
Real, first-hand feedback from people who run the ABB Robotics IRB 365-1.5/1300. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the ABB Robotics IRB 365-1.5/1300? +
The ABB Robotics IRB 365-1.5/1300 has a maximum payload of 1.5 kg.
What is the reach of the ABB Robotics IRB 365-1.5/1300? +
The ABB Robotics IRB 365-1.5/1300 has a maximum reach of 1,300 mm (1.30 m).
What is the repeatability of the ABB Robotics IRB 365-1.5/1300? +
The ABB Robotics IRB 365-1.5/1300 has a pose repeatability of ±0.05 mm (ISO 9283), making it highly accurate for precision work.
How many axes does the ABB Robotics IRB 365-1.5/1300 have? +
The ABB Robotics IRB 365-1.5/1300 is a 5-axis delta / parallel robot.
What is the ABB Robotics IRB 365-1.5/1300 used for? +
The ABB Robotics IRB 365-1.5/1300 is typically used for pick-and-place, packaging.
What controller does the ABB Robotics IRB 365-1.5/1300 use? +
The ABB Robotics IRB 365-1.5/1300 runs on the OmniCore C30 controller.
What is the IP rating of the ABB Robotics IRB 365-1.5/1300? +
The ABB Robotics IRB 365-1.5/1300 arm carries an IP54 ingress-protection rating.
