ABB Robotics
IRB 6790-235/2.65
Foundry Prime wash-down robot rated IP69 across every manipulator electrical compartment, with only the connection-panel Harting connector at IP67 - 235 kg at 2.65 m reach and 0.05 mm pose repeatability for high-pressure cleaning and die-casting duty.
💲 Price on application
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 235 kg 84th pct in class

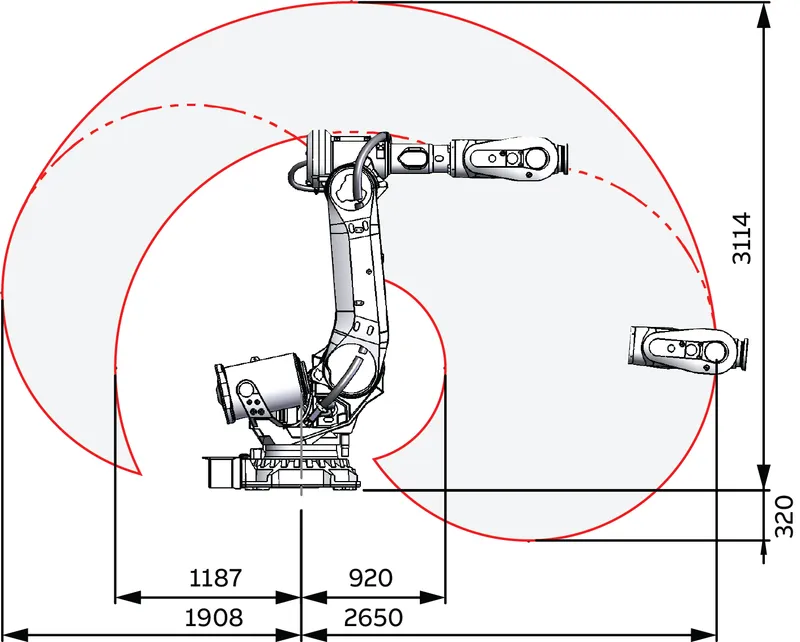

- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 2,650 mm 71th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.05 mm 31th pct in class
- Path repeatability
How consistently the robot retraces a continuous path (for welding, dispensing). Lower is better.
- 0.08 mm 60th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 6
- Wrist torque
Allowable torque at the wrist axis — how much twisting force a tool can apply. Higher handles bigger/offset tools.
- 1,324 N·m 73th pct in class
Motion range & speed
Per-axis travel limits and rotational speeds.
Motion range and maximum speed per joint.
| Axis | Range | Max speed |
|---|---|---|
| J1 | -170° to 170° | 100 °/s |
| J2 | -65° to 85° | 90 °/s |
| J3 | -180° to 70° | 90 °/s |
| J4 | -300° to 300° | 170 °/s |
| J5 | -130° to 130° | 120 °/s |
| J6 | -360° to 360° | 190 °/s |
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 1,300 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- floor
Power & controller
Electrical supply and the control cabinet that drives it.
- Power supply
Required input voltage / phase for the controller.
- 3x380-480 VAC, 50/60 Hz
- Controller
The control cabinet / unit that runs the robot.
- OmniCore V250XT/V400XT
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (arm)
Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.
- IP69 99th pct in class
- Operating temp
Ambient temperature range for normal operation.
- 5 to 50 °C
- Humidity
Permissible relative-humidity range (non-condensing).
- ≤ 95 %RH
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- No
- Safety standards
Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).
- ISO 10218-1, UL 1740
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- teach-pendant, offline-sim
- Languages
Native robot programming language(s) — e.g. KRL (KUKA), RAPID (ABB), URScript (UR), INFORM (Yaskawa).
- RAPID
- Teach pendant
The handheld programming/jog device supplied.
- FlexPendant
- Offline programming
Whether programs can be built and validated offline in a digital twin before deployment.
- Yes
Safety certifications
- ISO 10218-1 — the primary industrial-robot safety standard covering design and construction requirements
- UL 1740 — UL certification — North American safety listing confirming compliance with product-safety standards
Specifications sourced from ABB Robotics official datasheet ↗. Specs last verified 2026-08-06.
Owner reviews
Real, first-hand feedback from people who run the ABB Robotics IRB 6790-235/2.65. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the ABB Robotics IRB 6790-235/2.65? +
The ABB Robotics IRB 6790-235/2.65 has a maximum payload of 235 kg.
What is the reach of the ABB Robotics IRB 6790-235/2.65? +
The ABB Robotics IRB 6790-235/2.65 has a maximum reach of 2,650 mm (2.65 m).
What is the repeatability of the ABB Robotics IRB 6790-235/2.65? +
The ABB Robotics IRB 6790-235/2.65 has a pose repeatability of ±0.05 mm (ISO 9283), making it highly accurate for precision work.
How many axes does the ABB Robotics IRB 6790-235/2.65 have? +
The ABB Robotics IRB 6790-235/2.65 is a 6-axis articulated arm robot.
What is the ABB Robotics IRB 6790-235/2.65 used for? +
The ABB Robotics IRB 6790-235/2.65 is typically used for material-handling, machine-tending, foundry, die-casting.
What controller does the ABB Robotics IRB 6790-235/2.65 use? +
The ABB Robotics IRB 6790-235/2.65 runs on the OmniCore V250XT/V400XT controller.
What is the IP rating of the ABB Robotics IRB 6790-235/2.65? +
The ABB Robotics IRB 6790-235/2.65 arm carries an IP69 ingress-protection rating.
How much does the ABB Robotics IRB 6790-235/2.65 cost? +
ABB Robotics IRB 6790-235/2.65: Price on application. Industrial robots are typically quoted per project through authorized distributors.
