ABB Robotics
IRB 760
A high-torque 4-axis palletizer with a 3.18 m reach and 450 kg payload, capable of moving full pallet layers at up to 450 cycles/hour for heavy-product palletizing and press tending.
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 450 kg 64th pct in class

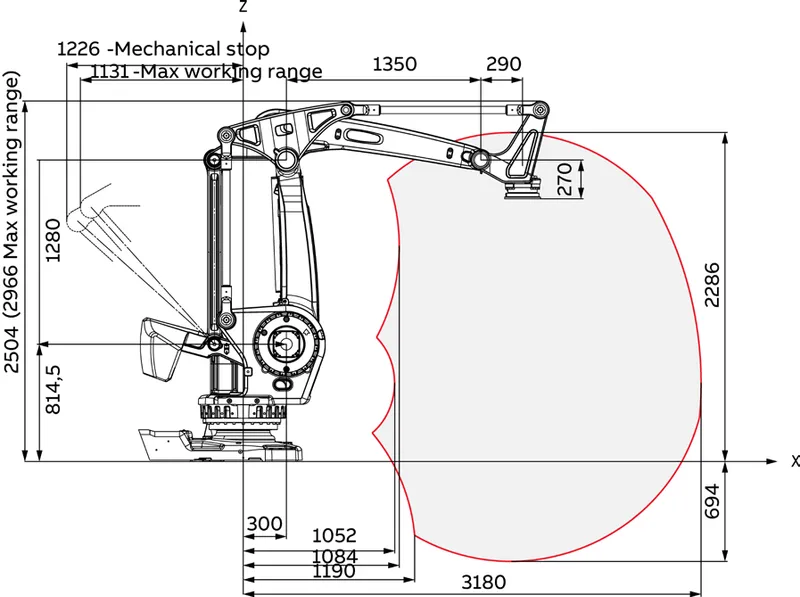

- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 3,180 mm 71th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 4
- Std cycle time
Time for a standard 25/305/25 mm pick-place move where published. Lower is faster.
- 8 s 0th pct in class
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- No
Industrial Robotics Hub — industrialroboticshub.com
Specifications sourced from ABB Robotics official datasheet ↗. Specs last verified 2026-08-31.
Owner reviews
Real, first-hand feedback from people who run the ABB Robotics IRB 760. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the ABB Robotics IRB 760? +
The ABB Robotics IRB 760 has a maximum payload of 450 kg.
What is the reach of the ABB Robotics IRB 760? +
The ABB Robotics IRB 760 has a maximum reach of 3,180 mm (3.18 m).
How many axes does the ABB Robotics IRB 760 have? +
The ABB Robotics IRB 760 is a 4-axis palletizer robot.
What is the ABB Robotics IRB 760 used for? +
The ABB Robotics IRB 760 is typically used for palletizing, press-tending.
