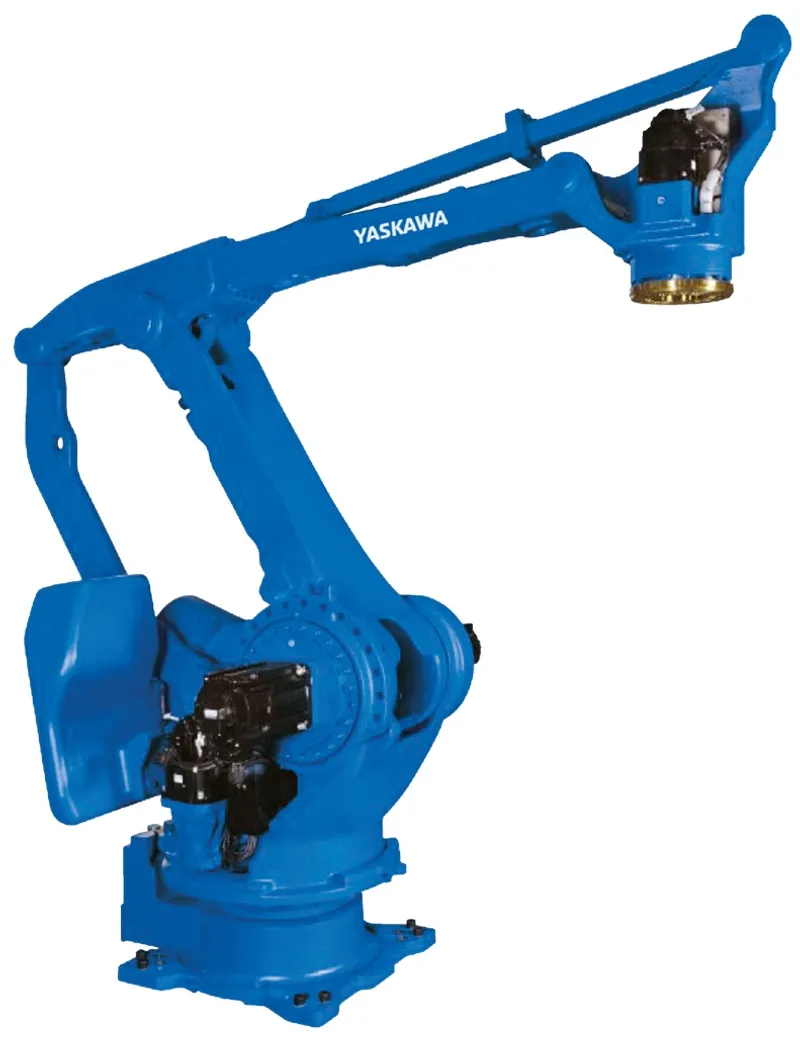

Yaskawa Motoman
PL500
A high-payload 4-axis palletizer in Yaskawa's PL line — 500 kg payload with 3159 mm reach, built for high-throughput end-of-line palletizing.

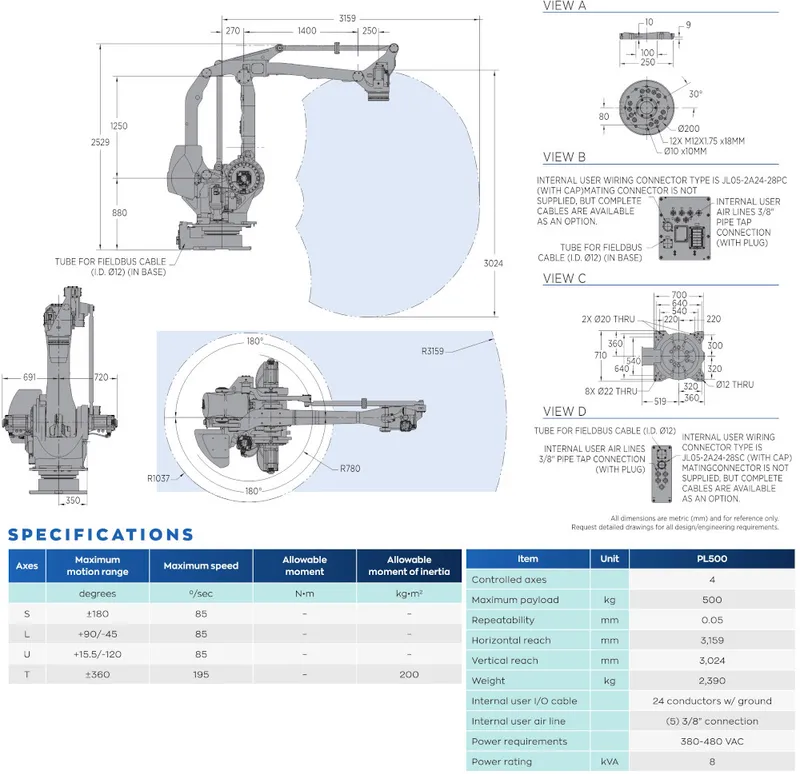

Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 500 kg 71th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 3,159 mm 50th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 4
Power & controller
Electrical supply and the control cabinet that drives it.
- Controller
The control cabinet / unit that runs the robot.
- YRC1000
Industrial Robotics Hub — industrialroboticshub.com
Specifications sourced from Yaskawa Motoman official datasheet ↗. Specs last verified 2026-08-31.
Owner reviews
Real, first-hand feedback from people who run the Yaskawa Motoman PL500. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the Yaskawa Motoman PL500? +
The Yaskawa Motoman PL500 has a maximum payload of 500 kg.
What is the reach of the Yaskawa Motoman PL500? +
The Yaskawa Motoman PL500 has a maximum reach of 3,159 mm (3.16 m).
How many axes does the Yaskawa Motoman PL500 have? +
The Yaskawa Motoman PL500 is a 4-axis palletizer robot.
What is the Yaskawa Motoman PL500 used for? +
The Yaskawa Motoman PL500 is typically used for palletizing.
What controller does the Yaskawa Motoman PL500 use? +
The Yaskawa Motoman PL500 runs on the YRC1000 controller.
