1 photo

Product image © Dobot, shown for identification. Official source ↗.

Documents

Manufacturer Dobot MG400 User Guide (PDF)

Collaborative 🇨🇳China ✓ Verified specs

Dobot

MG400

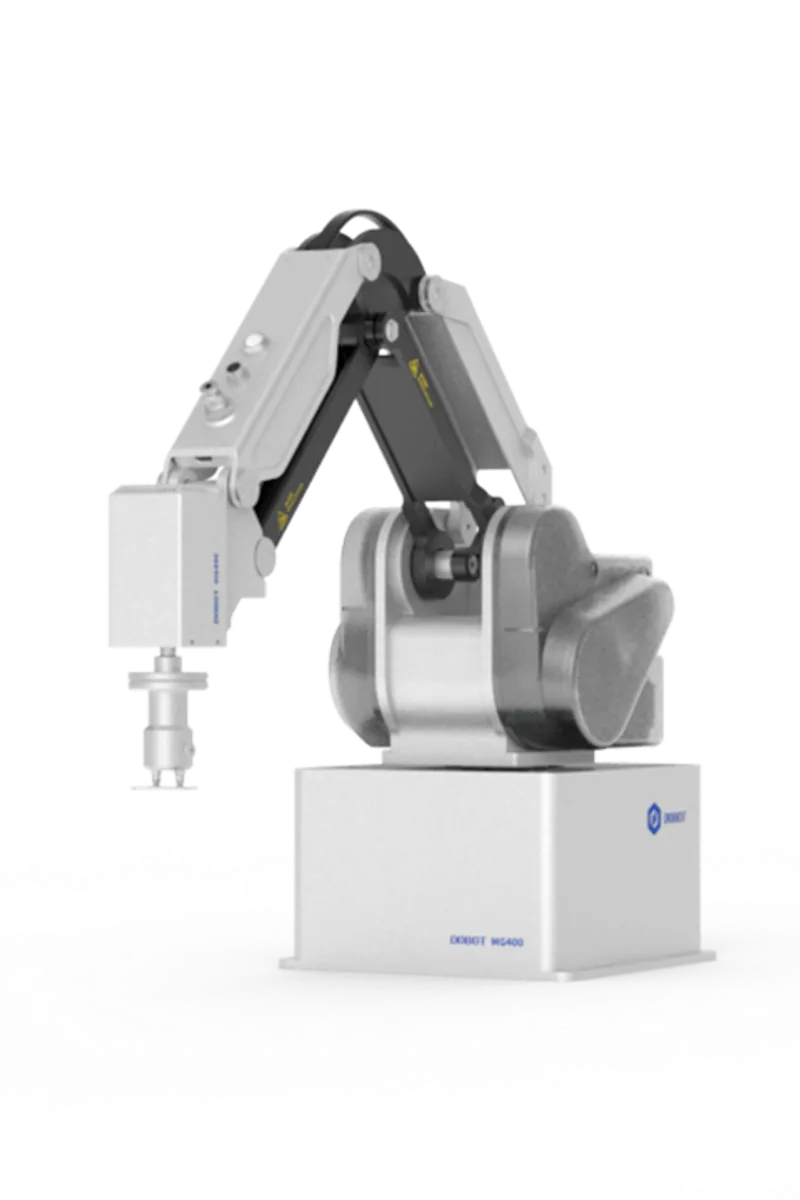

The MG400 is Dobot's compact 4-axis desktop robot with a footprint smaller than a sheet of A4 paper, 750 g payload and 440 mm reach, aimed at affordable small-batch and light assembly automation.

Payload

0.8 kg

@ full reach: usually lower

Reach

440 mm

Repeatability

±0.05 mm

💲 Price on application

Full specifications

Performance

How much it lifts, how far it reaches, how precisely it repeats.

Payload Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.: 0.8 kg

2th pct in class

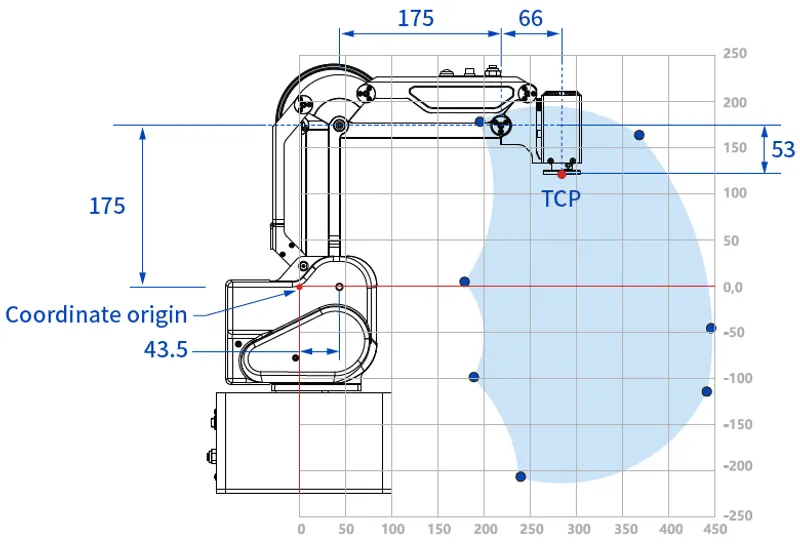

Reach Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.: 440 mm

0th pct in class
Repeatability How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.: 0.05 mm

11th pct in class
Axes (DOF) Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.: 4

Motion range & speed

Per-axis travel limits and rotational speeds.

Max axis speed Highest rotational speed of the fastest joint. Higher helps short, fast moves.: 300 °/s

75th pct in class

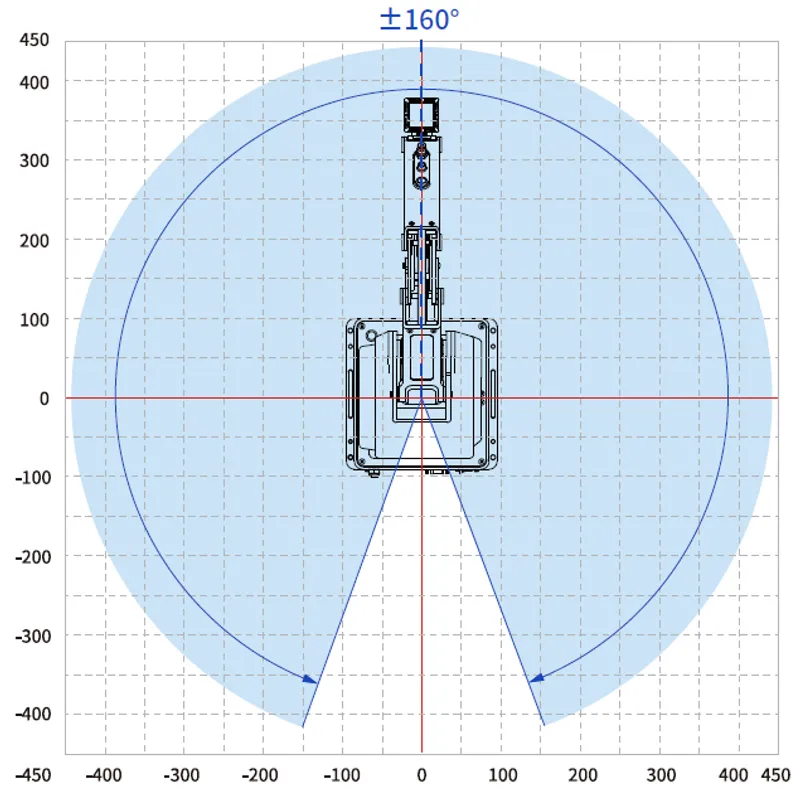

Axis	Range	Max speed
J1	-160° to 160°	300 °/s
J2	-25° to 85°	300 °/s
J3	-25° to 105°	300 °/s
J4	-360° to 360°	300 °/s

Physical

Size, mass and how it mounts.

Robot weight Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.: 8 kg
Mounting Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).: tabletop, floor

Environment

Conditions it can operate in — dust, water, temperature, cleanliness.

IP rating (arm) Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.: IP20

0th pct in class

Control & software

Programming, languages and ecosystem.

Programming How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.: hand-guiding, graphical, script
Languages Native robot programming language(s) — e.g. KRL (KUKA), RAPID (ABB), URScript (UR), INFORM (Yaskawa).: Blockly, LUA, Python
Offline programming Whether programs can be built and validated offline in a digital twin before deployment.: Yes

Connectivity & I/O

Signals, fieldbuses and tooling interfaces.

Fieldbus Industrial networks supported for PLC/cell integration (PROFINET, EtherNet/IP, EtherCAT, Modbus TCP, CC-Link, etc.).: Modbus TCP, Modbus RTU, EtherNet/IP, PROFINET
Integrated vision Whether a camera / vision system is built into the robot or controller.: No

Specifications sourced from Dobot official datasheet ↗. Specs last verified 2026-07-06.
