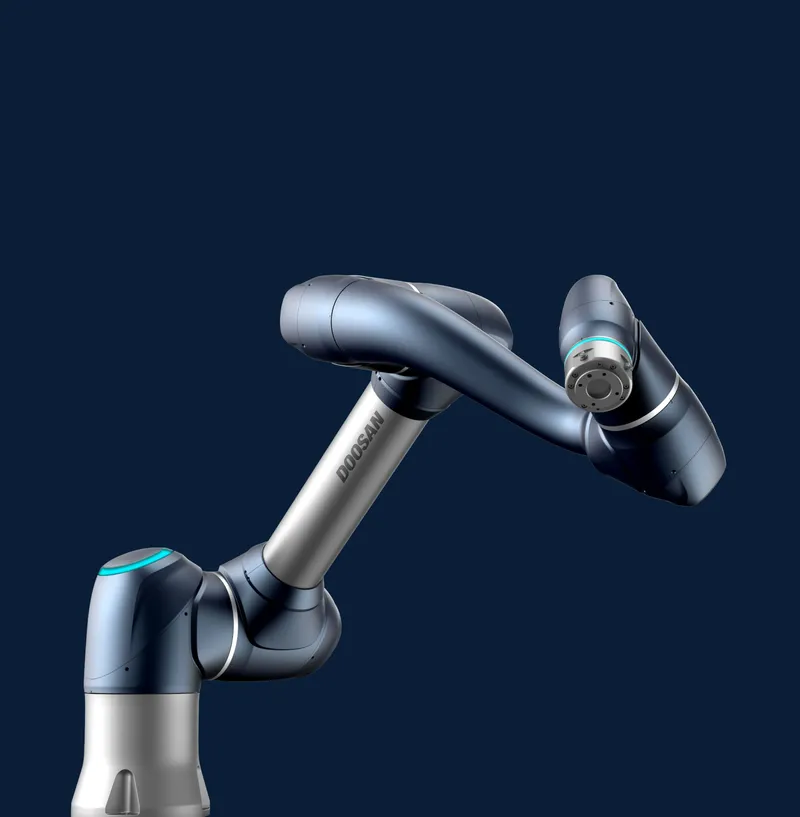

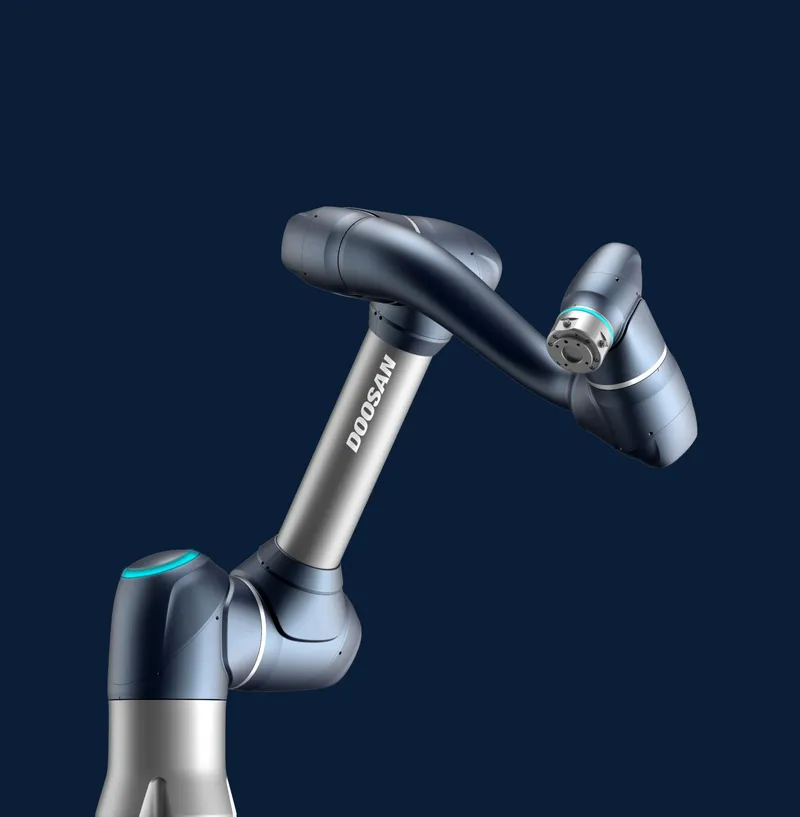

Doosan Robotics
H2515
One of the highest-payload cobots available — 25 kg at 1500 mm reach with joint torque sensors throughout, built for heavy palletizing and machine tending.
💲 Price on application
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 25 kg 89th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 1,500 mm 80th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.1 mm 0th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 6
Motion range & speed
Per-axis travel limits and rotational speeds.
- Max axis speed
Highest rotational speed of the fastest joint. Higher helps short, fast moves.
- 180 °/s 13th pct in class
Motion range and maximum speed per joint.
| Axis | Range | Max speed |
|---|---|---|
| J1 | -360° to 360° | 100 °/s |
| J2 | -125° to 125° | 80 °/s |
| J3 | -160° to 160° | 100 °/s |
| J4 | -360° to 360° | 180 °/s |
| J5 | -360° to 360° | 180 °/s |
| J6 | -360° to 360° | 180 °/s |
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 75 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- floor, ceiling, wall, tilted
Power & controller
Electrical supply and the control cabinet that drives it.
- Controller
The control cabinet / unit that runs the robot.
- DART Controller
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (arm)
Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.
- IP54 5th pct in class
- Operating temp
Ambient temperature range for normal operation.
- 0 to 45 °C
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- Yes
- Safety standards
Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).
- ISO 10218-1, ISO/TS 15066, PLd Cat.3
- Collab features
Collaborative safety functions: power-force-limiting, speed-and-separation monitoring, hand-guiding, safety-rated stops.
- power-force-limiting, safety-rated-stop, hand-guiding
- Cert. cobot payload
Payload at which collaborative (force-limited) operation is still certified.
- 25 kg 89th pct in class
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- teach-pendant, lead-through, graphical-blockly
- ROS support
Robot Operating System driver availability (none / ROS 1 / ROS 2 / both).
- both
- Offline programming
Whether programs can be built and validated offline in a digital twin before deployment.
- Yes
Connectivity & I/O
Signals, fieldbuses and tooling interfaces.
- Fieldbus
Industrial networks supported for PLC/cell integration (PROFINET, EtherNet/IP, EtherCAT, Modbus TCP, CC-Link, etc.).
- PROFINET, EtherNet/IP, Modbus TCP
- Tool flange
Mechanical interface at the wrist for mounting tools (ISO 9409-1 pattern).
- ISO 9409-1-50-4-M6
Safety certifications
- ISO 10218-1 — the primary industrial-robot safety standard covering design and construction requirements
- ISO/TS 15066 — the safety standard for collaborative robots working near people (force and speed limits)
- PLd Cat.3 — high safety-integrity (PLd) with a dual-channel architecture that tolerates one fault without losing the safety function
Specifications sourced from Doosan Robotics official datasheet ↗. Specs last verified 2026-07-01.
Owner reviews
Real, first-hand feedback from people who run the Doosan Robotics H2515. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the Doosan Robotics H2515? +
The Doosan Robotics H2515 has a maximum payload of 25 kg.
What is the reach of the Doosan Robotics H2515? +
The Doosan Robotics H2515 has a maximum reach of 1,500 mm (1.50 m).
What is the repeatability of the Doosan Robotics H2515? +
The Doosan Robotics H2515 has a pose repeatability of ±0.1 mm (ISO 9283), making it suitable for precision work.
How many axes does the Doosan Robotics H2515 have? +
The Doosan Robotics H2515 is a 6-axis collaborative robot.
What is the Doosan Robotics H2515 used for? +
The Doosan Robotics H2515 is typically used for palletizing, machine-tending, material-handling.
Is the Doosan Robotics H2515 a collaborative robot? +
Yes — the Doosan Robotics H2515 is a collaborative robot (cobot) designed to work safely alongside people under ISO/TS 15066.
What controller does the Doosan Robotics H2515 use? +
The Doosan Robotics H2515 runs on the DART Controller controller.
What is the IP rating of the Doosan Robotics H2515? +
The Doosan Robotics H2515 arm carries an IP54 ingress-protection rating.
How much does the Doosan Robotics H2515 cost? +
Doosan Robotics H2515: Price on application. Industrial robots are typically quoted per project through authorized distributors.
