1 photo

Product image © Estun, shown for identification. Official source ↗.

Documents

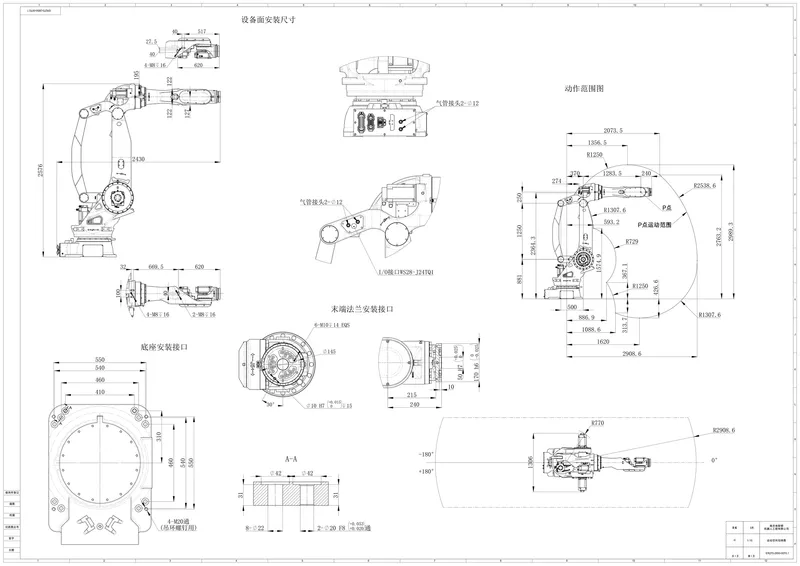

Manufacturer ESTUN ER270-2850 Dimension Drawing (PDF)

Articulated arm 🇨🇳 China ✓ Verified specs

Estun

ER270-2850

270 kg payload 6-axis heavy robot with 2850 mm reach, filling the gap between Estun's 220 kg and 350 kg classes.

Payload

270 kg

@ full reach: usually lower

Reach

2,850 mm

Repeatability

—

💲 Price on application

Full specifications

Performance

How much it lifts, how far it reaches, how precisely it repeats.

Payload Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.: 270 kg

85th pct in class
Reach Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.: 2,850 mm

82th pct in class
Axes (DOF) Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.: 6

Physical

Size, mass and how it mounts.

Mounting Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).: floor

Environment

Conditions it can operate in — dust, water, temperature, cleanliness.

IP rating (arm) Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.: IP54

19th pct in class

Safety

Standards met and collaborative-operation capability.

Collaborative Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).: No
Safety standards Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).: ISO 10218-1

Control & software

Programming, languages and ecosystem.

Programming How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.: teach-pendant, offline-sim
ROS support Robot Operating System driver availability (none / ROS 1 / ROS 2 / both).: none

Safety certifications

ISO 10218-1 — the primary industrial-robot safety standard covering design and construction requirements

Specifications sourced from Estun official datasheet ↗. Specs last verified 2026-07-16.
