FANUC
CR-4iA

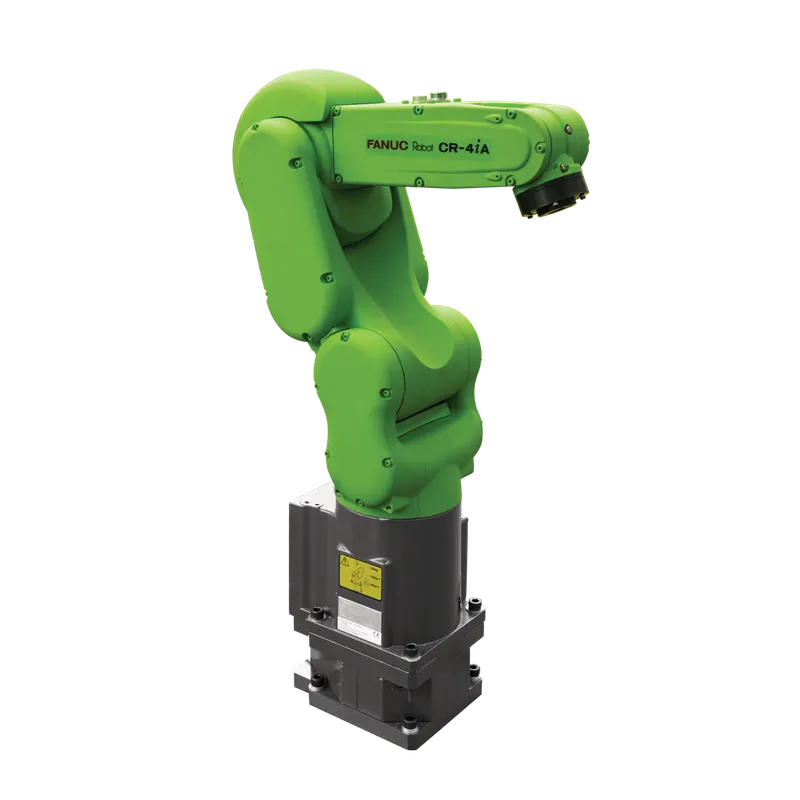

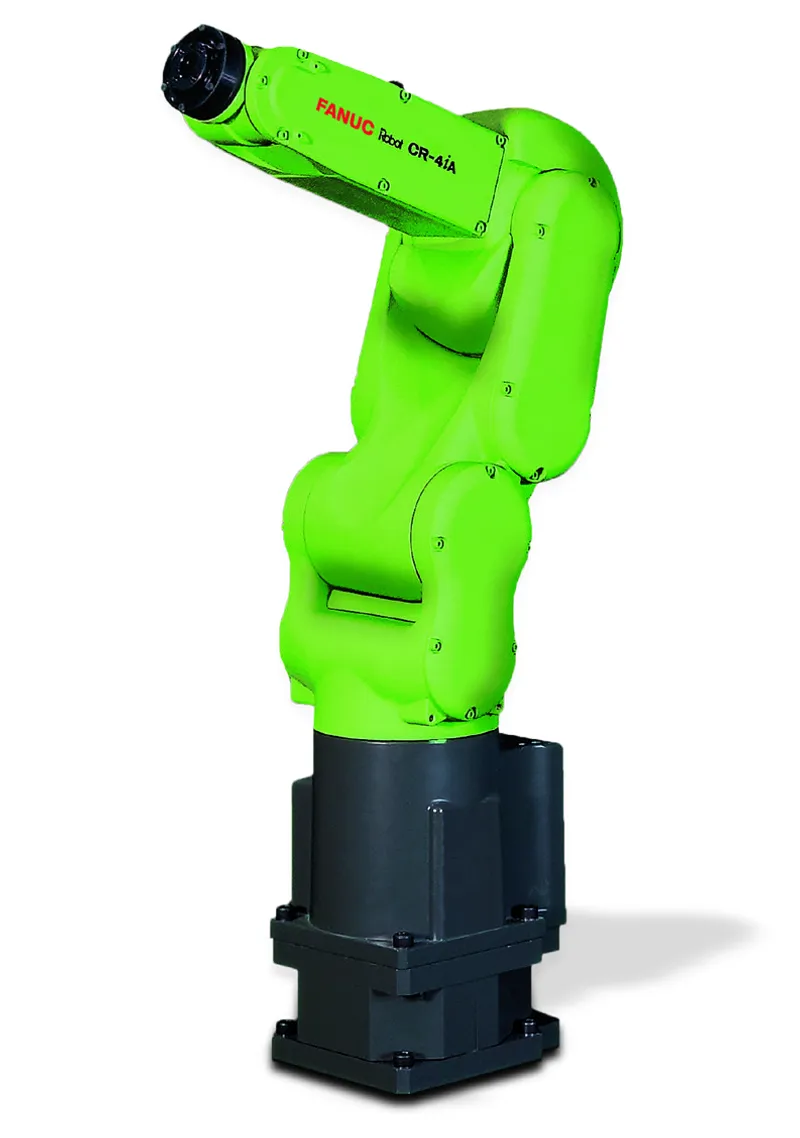

Smallest robot in FANUC’s green CR collaborative line - 4 kg at 550 mm reach with 0.01 mm repeatability on a 48 kg tabletop body, mountable floor, angled or inverted so it can work above an operator without crowding the bench.
💲 Price on application
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 4 kg 15th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 550 mm 2th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.01 mm 98th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 6
- Wrist torque
Allowable torque at the wrist axis — how much twisting force a tool can apply. Higher handles bigger/offset tools.
- 8.9 N·m 18th pct in class
- Wrist inertia
Allowable moment of inertia at the wrist — how much rotating mass it can swing without overload. Higher is more capable.
- 2 kg·m² 65th pct in class
Motion range & speed
Per-axis travel limits and rotational speeds.
Motion range and maximum speed per joint.
| Axis | Range | Max speed |
|---|---|---|
| J1 | -170° to 170° | 250 °/s |
| J2 | — | 250 °/s |
| J3 | — | 250 °/s |
| J4 | -190° to 190° | 250 °/s |
| J5 | -100° to 100° | 250 °/s |
| J6 | -360° to 360° | 250 °/s |
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 48 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- floor, angle, inverted
Power & controller
Electrical supply and the control cabinet that drives it.
- Power draw
Typical operating power consumption. Lower is more efficient.
- 1,000 W 5th pct in class
- Controller
The control cabinet / unit that runs the robot.
- R-30iB Plus
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- Yes
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- teach-pendant, offline-sim
- Languages
Native robot programming language(s) — e.g. KRL (KUKA), RAPID (ABB), URScript (UR), INFORM (Yaskawa).
- KAREL, TP
- Teach pendant
The handheld programming/jog device supplied.
- iPendant Touch
- Offline programming
Whether programs can be built and validated offline in a digital twin before deployment.
- Yes
Specifications sourced from FANUC official datasheet ↗. Specs last verified 2026-08-06.
Owner reviews
Real, first-hand feedback from people who run the FANUC CR-4iA. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the FANUC CR-4iA? +
The FANUC CR-4iA has a maximum payload of 4 kg.
What is the reach of the FANUC CR-4iA? +
The FANUC CR-4iA has a maximum reach of 550 mm (0.55 m).
What is the repeatability of the FANUC CR-4iA? +
The FANUC CR-4iA has a pose repeatability of ±0.01 mm (ISO 9283), making it highly accurate for precision work.
How many axes does the FANUC CR-4iA have? +
The FANUC CR-4iA is a 6-axis collaborative robot.
What is the FANUC CR-4iA used for? +
The FANUC CR-4iA is typically used for assembly, machine-tending, pick-and-place, inspection.
Is the FANUC CR-4iA a collaborative robot? +
Yes — the FANUC CR-4iA is a collaborative robot (cobot) designed to work safely alongside people under ISO/TS 15066.
What controller does the FANUC CR-4iA use? +
The FANUC CR-4iA runs on the R-30iB Plus controller.
How much does the FANUC CR-4iA cost? +
FANUC CR-4iA: Price on application. Industrial robots are typically quoted per project through authorized distributors.
