FANUC
M-2000iA/1700L

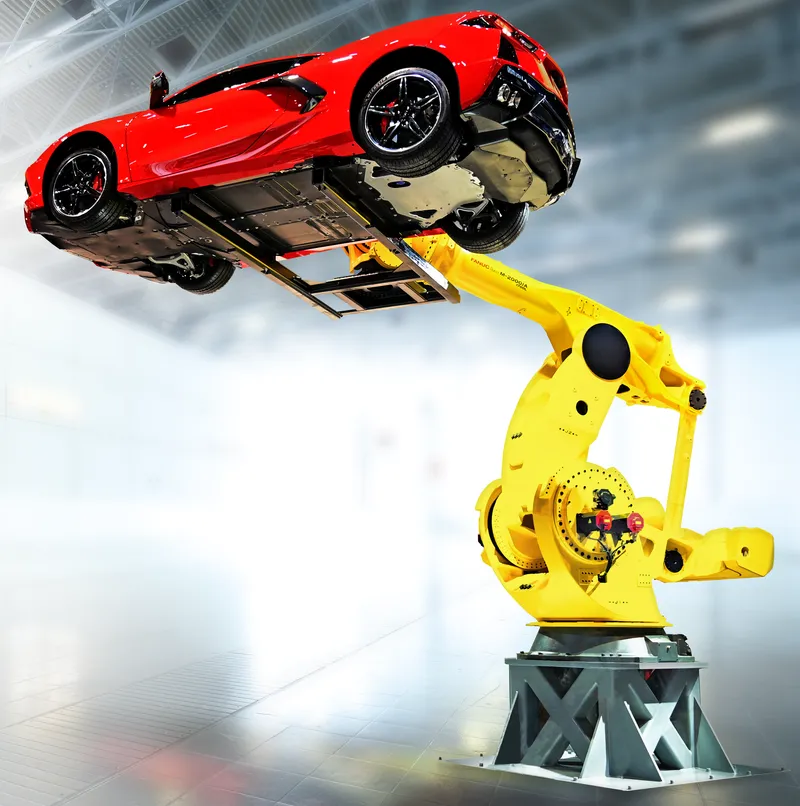

The world's strongest 6-axis robot family — the /1700L lifts 1700 kg at 3734 mm reach, hoisting car bodies, castings and heavy machinery in a single pick.
💲 Price on application
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 1,700 kg 99th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 3,734 mm 98th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.27 mm 2th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 6
- Max TCP speed
Top linear speed of the tool centre point. Higher means faster cycle times.
- 1,300 mm/s 3th pct in class
- Wrist torque
Allowable torque at the wrist axis — how much twisting force a tool can apply. Higher handles bigger/offset tools.
- 29,400 N·m 99th pct in class
- Wrist inertia
Allowable moment of inertia at the wrist — how much rotating mass it can swing without overload. Higher is more capable.
- 7,500 kg·m² 99th pct in class
Motion range & speed
Per-axis travel limits and rotational speeds.
- Max axis speed
Highest rotational speed of the fastest joint. Higher helps short, fast moves.
- 360 °/s 31th pct in class
Motion range and maximum speed per joint.
| Axis | Range | Max speed |
|---|---|---|
| J1 | -165° to 165° | 20 °/s |
| J2 | -60° to 100° | 14 °/s |
| J3 | -130° to 35° | 14 °/s |
| J4 | -360° to 360° | 18 °/s |
| J5 | -120° to 120° | 18 °/s |
| J6 | -360° to 360° | 40 °/s |
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 11,200 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- floor
Power & controller
Electrical supply and the control cabinet that drives it.
- Power supply
Required input voltage / phase for the controller.
- 3-phase 200VAC
- Power draw
Typical operating power consumption. Lower is more efficient.
- 8,500 W 0th pct in class
- Controller
The control cabinet / unit that runs the robot.
- R-30iB Plus
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (arm)
Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.
- IP67 71th pct in class
- IP rating (wrist)
Ingress protection at the wrist, often higher than the body for wet/washdown duty.
- IP67 14th pct in class
- Operating temp
Ambient temperature range for normal operation.
- 0 to 45 °C
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- No
- Safety standards
Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).
- ISO 10218-1
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- teach-pendant, offline-sim
- Languages
Native robot programming language(s) — e.g. KRL (KUKA), RAPID (ABB), URScript (UR), INFORM (Yaskawa).
- KAREL, TP
- Teach pendant
The handheld programming/jog device supplied.
- iPendant Touch
- Offline programming
Whether programs can be built and validated offline in a digital twin before deployment.
- Yes
Connectivity & I/O
Signals, fieldbuses and tooling interfaces.
- Fieldbus
Industrial networks supported for PLC/cell integration (PROFINET, EtherNet/IP, EtherCAT, Modbus TCP, CC-Link, etc.).
- PROFINET, EtherNet/IP, DeviceNet
Industrial Robotics Hub — industrialroboticshub.com
Safety certifications
- ISO 10218-1 — the primary industrial-robot safety standard covering design and construction requirements
Specifications sourced from FANUC official datasheet ↗. Specs last verified 2026-07-16.
Owner reviews
Real, first-hand feedback from people who run the FANUC M-2000iA/1700L. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the FANUC M-2000iA/1700L? +
The FANUC M-2000iA/1700L has a maximum payload of 1,700 kg.
What is the reach of the FANUC M-2000iA/1700L? +
The FANUC M-2000iA/1700L has a maximum reach of 3,734 mm (3.73 m).
What is the repeatability of the FANUC M-2000iA/1700L? +
The FANUC M-2000iA/1700L has a pose repeatability of ±0.27 mm (ISO 9283), making it suitable for precision work.
How many axes does the FANUC M-2000iA/1700L have? +
The FANUC M-2000iA/1700L is a 6-axis articulated arm robot.
What is the FANUC M-2000iA/1700L used for? +
The FANUC M-2000iA/1700L is typically used for material-handling, machine-tending.
What controller does the FANUC M-2000iA/1700L use? +
The FANUC M-2000iA/1700L runs on the R-30iB Plus controller.
What is the IP rating of the FANUC M-2000iA/1700L? +
The FANUC M-2000iA/1700L arm carries an IP67 ingress-protection rating.
How much does the FANUC M-2000iA/1700L cost? +
FANUC M-2000iA/1700L: Price on application. Industrial robots are typically quoted per project through authorized distributors.
